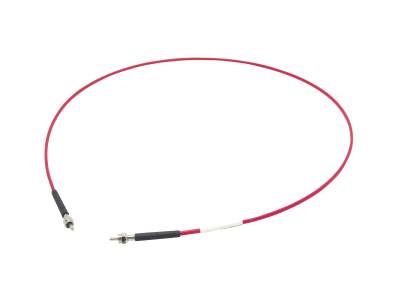

Fiber Optic Cable, UV-VIS, 1000 µm Core, 1250 µm Clad, 1m Length, SMA
Fiber Optic Cable, UV-VIS, 1000 µm Core, 1250 µm Clad, 1m Length, SMA
Model: 78277
Product Series Overview
UV-NIR Large Core FibersThe 78277 UV-VIS Single Fiber Cable has a core diameter of 1000 μm. This version has 1250 μm cladding, and is 1 meter long with SMA connectors. The transmission range is 190 nm to 1100 nm. The 78277 has a 0.22 ± 0.02 numerical aperture, with a 25.4° full acceptance cone.
