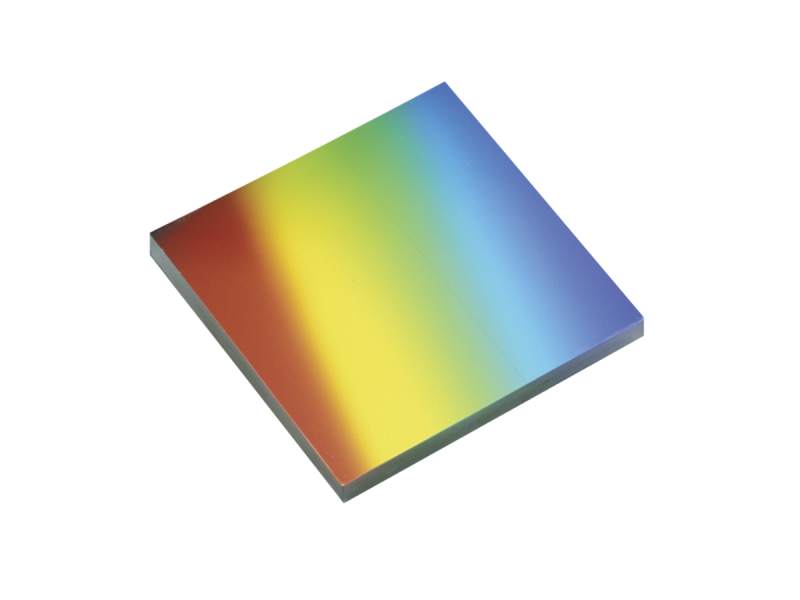

MS257 Grating, Ruled, 1200 lines/mm, 360 nm blaze, 200-1400 nm range

Factory grating replacement services are no longer available for the MS257 series, contact your Newport sales representative for details.

The model 77742 grating is for use with the Oriel^® MS257™ monochromator and imaging spectrograph. This grating is installed by Newport onto either the 77706 Single Grating Mount or 77708 Multiple Grating Mount, that can hold up to four gratings (ordered separately). The grating efficiency exceeds 20% over its entire operating range, with a peak efficiency of 80% at its blaze wavelength.
