Hand Controller, Cornerstone Monochromators and MS260i Spectrographs

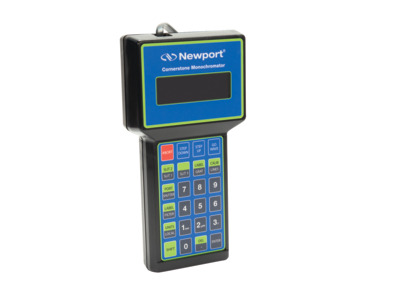

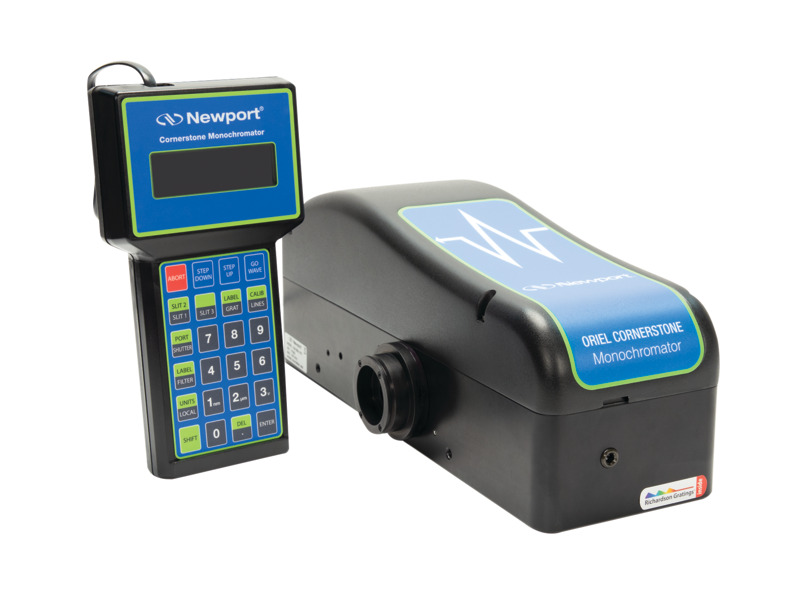

The 74009 Hand Controller is designed specifically for use with the Oriel^® Cornerstone series monochromators and MS260i spectrographs. It is very easy to set up – simply plug it into the instrument and it’s ready to go. There is no need to purchase a computer and set up software. The Hand Controller is a very convenient option in locations where security is an issue, such as defense facilities and universities.

There is no need to memorize commands or key sequences. The 24 keys are clearly labeled with functions like "Shutter", "Go Wave" and "Filter". The display provides information on the grating selection, grating line density, active filter position, current wavelength and shutter status. Using the Hand Controller is intuitive and provides access to nearly all the functionality of the monochromators and spectrographs.

The 74009 is also compatible with the motorized iris diaphragms to control the step size remotely.

A 14 foot [4.3 meter] long cable is included for power and communication with the connected device.
