Absolute Capacitance Manometer, Compact, 2000 Torr, ISO-KF, 9-Pin D-Sub

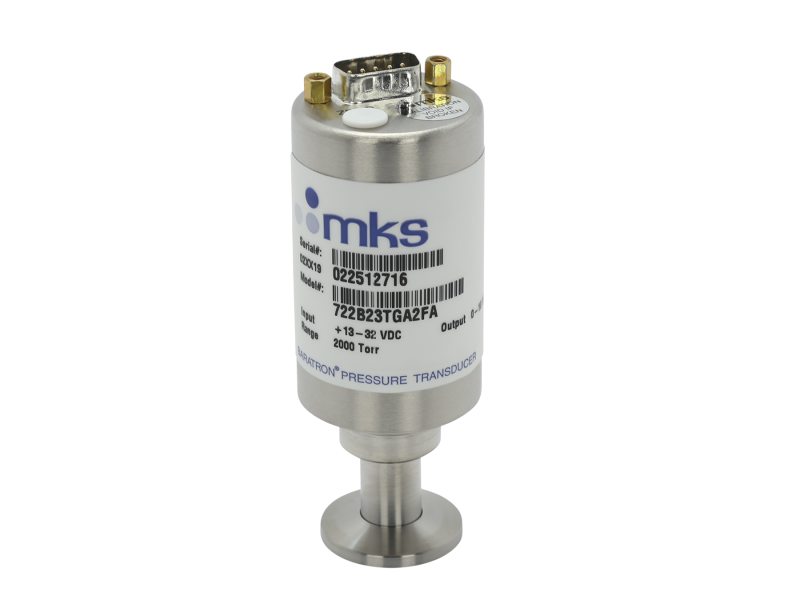

The 722B23TGA2FA Baratron® General Purpose Absolute Capacitance Manometer features 2000 Torr full scale pressure measurement with ±0.5% of reading accuracy and a NW16-KF flange. Electrical connections for the +13 to +32 VDC power requirements and 0-10 VDC proportional analog output are made with a 9-pin Type "D" subminiature connector. It features a flexible design making it an ideal solution for retrofit applications as well as new equipment designs. Robust sensor construction provides high overpressure tolerances, reducing errors caused by occasional line pressure spikes. All sensor wetted surfaces are made from Inconel® to ensure maximum compatibility with many process gases. Sophisticated technology and strict process controls ensure clean, smooth finishes (<10 Ra) on all wetted surfaces. Signal conditioning circuitry is assembled using the latest techniques in surface mount technology. All transducers are backed with a full two-year warranty.
