Dichroic Beam Turning Mirror, 240-255 nm, Requires 66246 Housing

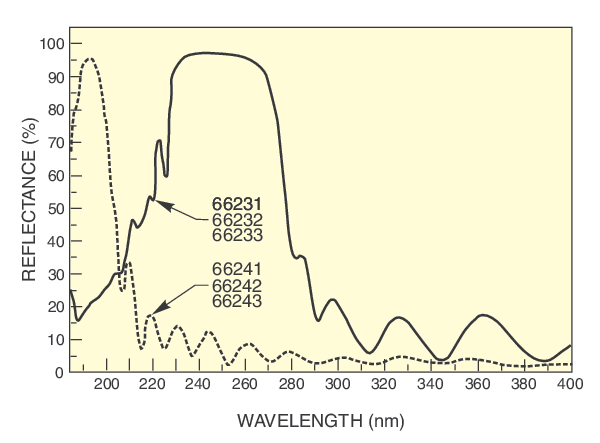

The 66232 Dichroic Beam Turning Mirror is designed for high reflectance and polarization insensitivity over a limited 240 to 255 nm primary spectral range. Most of the IR is transmitted through the dichroic mirror and absorbed by the 2 Inch Series model 66246 mirror housing (not included) where a heat sink dissipates the heat. It does not remove all of it. We have found that enough infrared is removed to make some irradiation studies practical without further filtering. If further filtering is required, use a liquid filter to remove infrared intensity.

Specifications

Technical Specs

Type
Beam Turning Mirror
Diameter
50.8 mm (Beam Size)
76.6 x 56.0 mm (Glass Size)
Wavelength Range
240-255 nm

Type
Beam Turning Mirror
Diameter
50.8 mm (Beam Size)
76.6 x 56.0 mm (Glass Size)
Wavelength Range
240-255 nm
