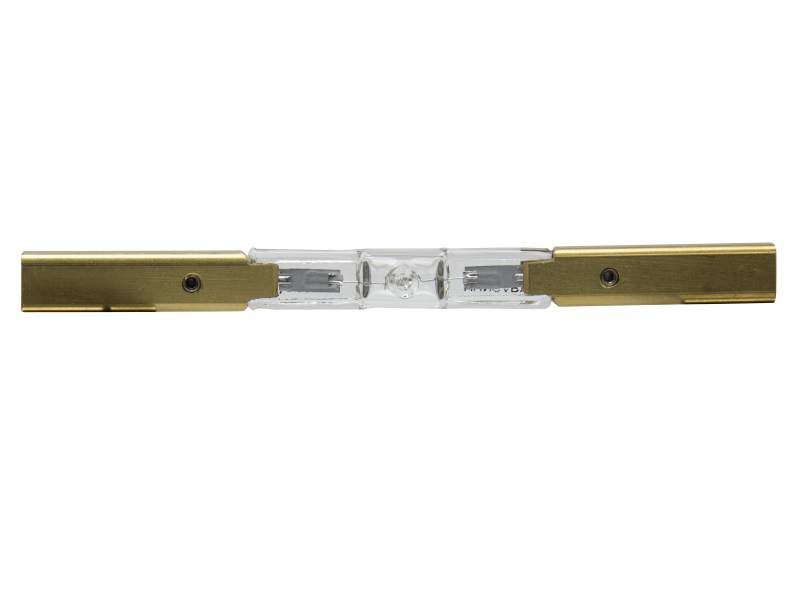

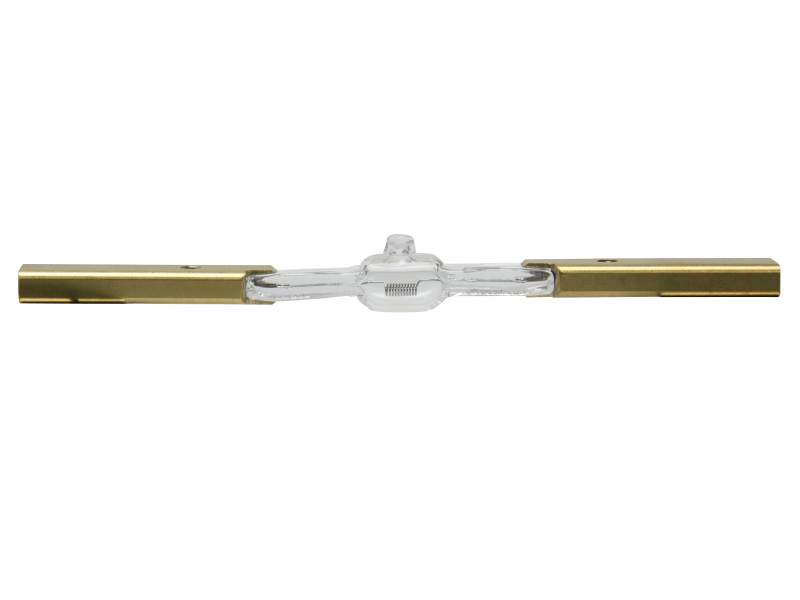

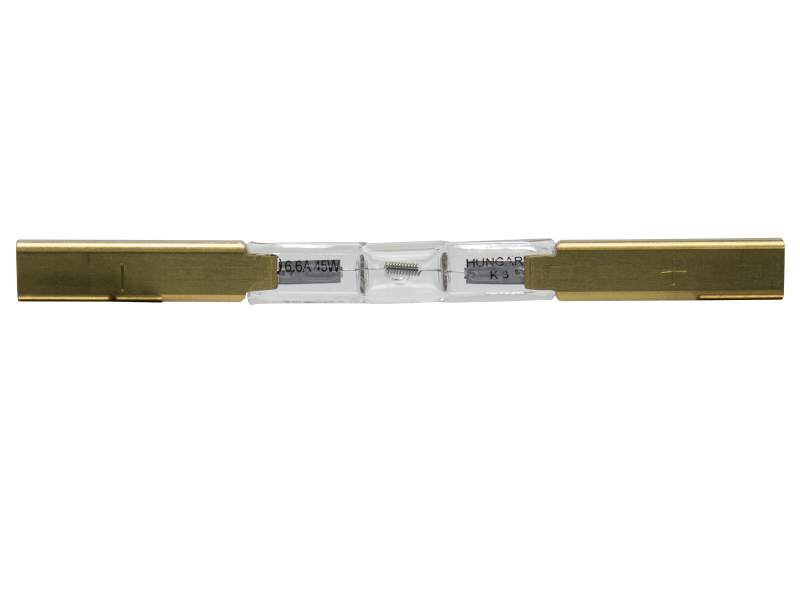

Quartz Tungsten Halogen Lamp, 45 W, Non-Calibrated Source

The 63360 is a 45 W QTH source lamp. QTH lamps are known for their excellent stability in emitting high intensity visible to IR wavelength output, with minimum UV emission. This lamp is designed for open air mounting instead of enclosed lamp housing operation.

Specifications

Technical Specs

Lamp Type
QTH
Lamp Wattage
45 W
Effective Filament Size
4.75 H x 1.5 Dia. mm
Filament Type
CC

Approximate Flux
705 lm
Lamp Voltage
6.8 V

Lamp Type
QTH
Lamp Wattage
45 W
Effective Filament Size
4.75 H x 1.5 Dia. mm
Filament Type
CC

Approximate Flux
705 lm
Lamp Voltage
6.8 V

Resources & Downloads

Literature

Light Sources(1.6 MB, PDF)

2D Product Drawings

LS-124c-1(445 kB, PDF)

Related Products

Compatible

Description	Compatibility	Avail.	Price

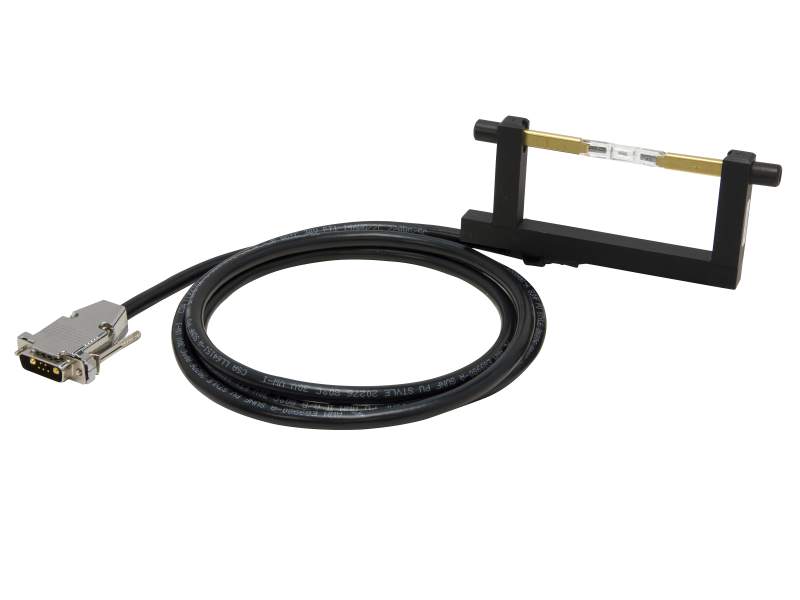

63966Lamp Mount, 45 W and 200 W QTH, Open Air	UNIVERSAL	In Stock	$665

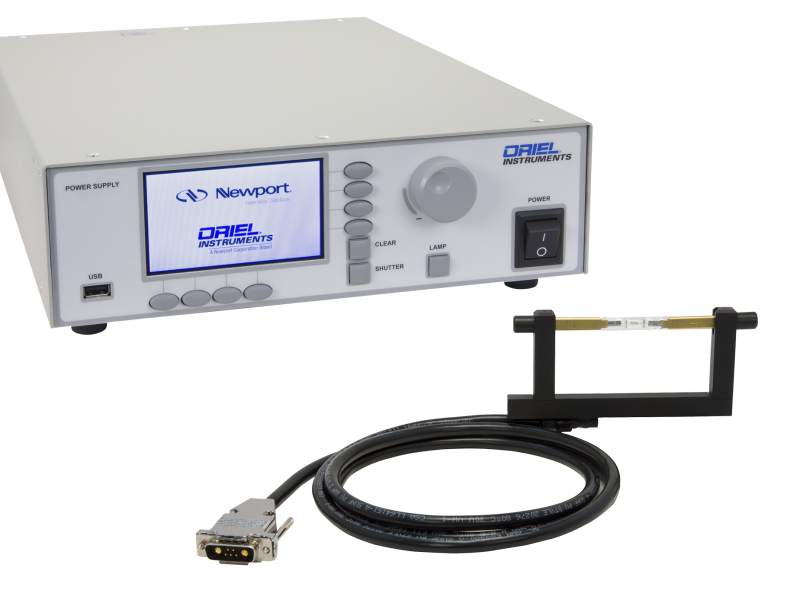

OPS-Q250QTH Lamp Power Supply, 45-250 W, Power, Current, Intensity, RS-232/USB	UNIVERSAL	In Stock	$3,125
63976-45Q-OAQTH Light Source, 45 W, Open Air Mount, 300-2500 nm	UNIVERSAL	6 Weeks	$4,510
