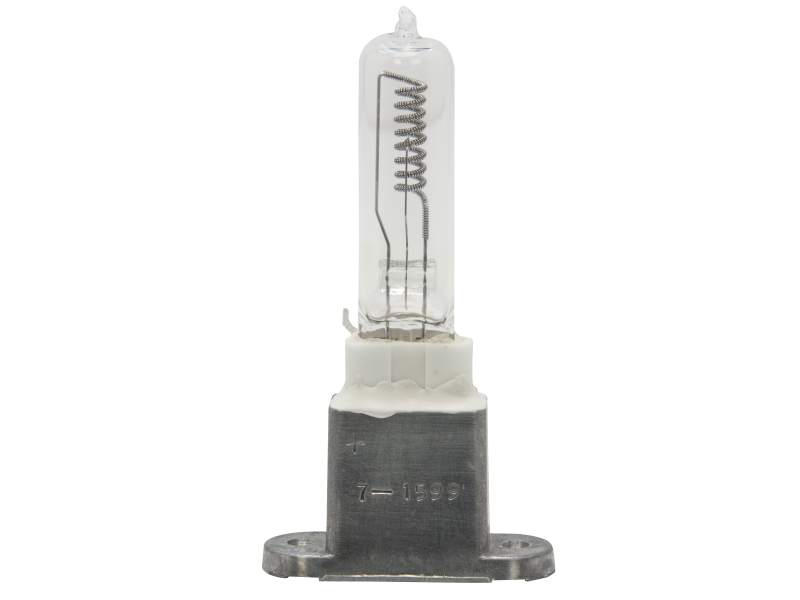

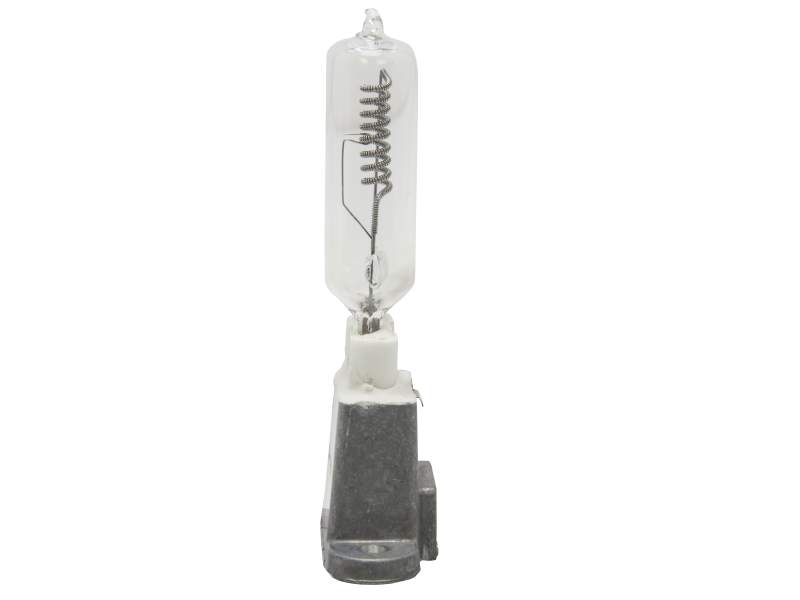

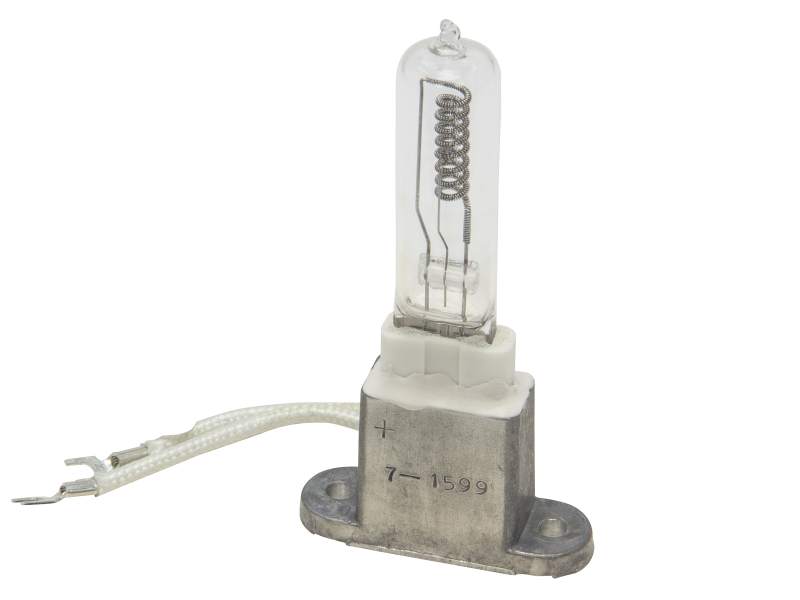

Calibrated Source Lamp, Quartz Tungsten Halogen, 1000 W, 250-2400 nm

The 63350 is a calibrated 1000 W QTH source lamp. QTH lamps are known for their excellent stability in emitting high intensity visible to IR wavelength output, with minimum UV emission. Included with this lamp is a calibration certificate confirming the lamp's calibration to NIST traceable standards over a 250-2400 nm wavelength range. This lamp is intended for vertical, open air mounting instead of enclosed lamp housing operation. Lamp replacement is typically recommended after 100 hours of use to maintain certificate value uncertainties.

Specifications

Technical Specs

Lamp Type
QTH
Lamp Wattage
1000 W
Effective Filament Size
16.0 H x 6.0 Dia. mm
Filament Type
CC

Approximate Flux
27500 lm
Color Temperature
3200 K

Lamp Type
QTH
Lamp Wattage
1000 W
Effective Filament Size
16.0 H x 6.0 Dia. mm
Filament Type
CC

Approximate Flux
27500 lm
Color Temperature
3200 K

Resources & Downloads

Literature

Light Sources(1.6 MB, PDF)

2D Product Drawings

LS-125d-1(475.8 kB, PDF)

Certificates

Sample QTH Lamp Calibration Certificate PN 63355.pdf(599.8 kB, PDF)
