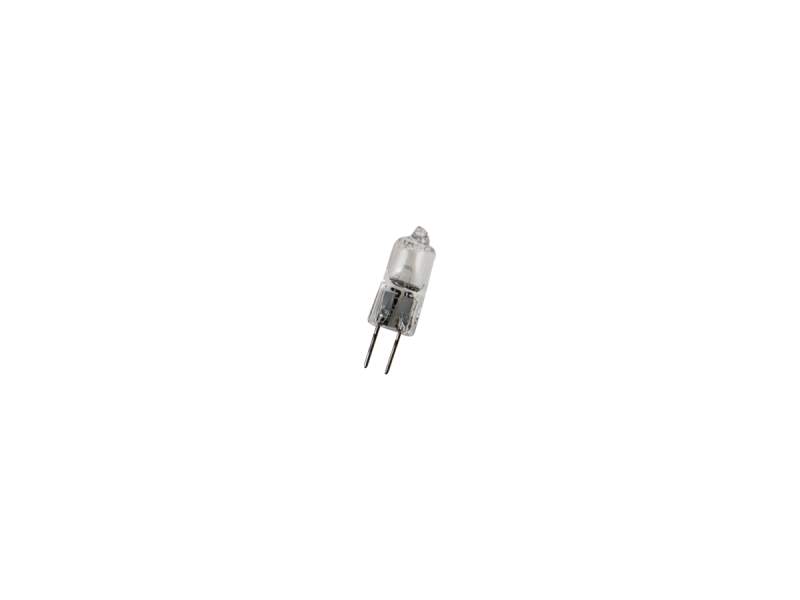

Quartz Tungsten Halogen Lamp, 20 W

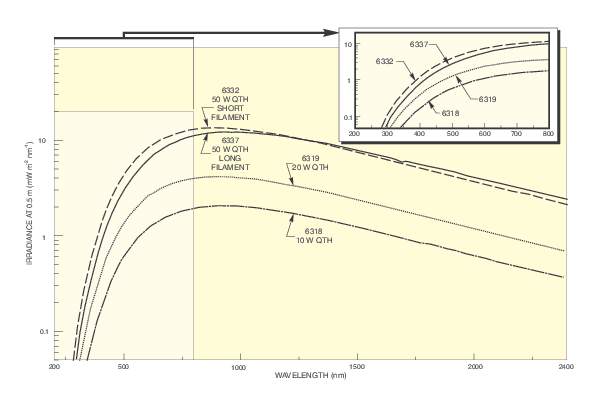

With its smooth spectral curve and stable output, the 6319 Quartz Tungsten Halogen (QTH) Lamp is a popular visible and near infrared light source. This lamp uses a dense rectangular filament, producing high image brightness. It does not exhibit the sharp spectral peaks characteristic of arc lamps and emits little UV radiation. A doped tungsten filament is positioned inside a quartz envelope. The envelope is filled with rare gas and a small amount of halogen. Current flowing through the filament heats the tungsten; the white light produced radiates through the clear envelope. This model has an average operational lifetime of 100 hours (with a longer expected lifetime if operated at lower compliance voltages).
Resources & Downloads
Literature
Light Sources(1.6 MB, PDF)
2D Product Drawings
LS-124a(456 kB, PDF)
Related Products
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
![]() | 68938Power Supply, QTH Lamps and IR Emitters, Up to 12 Amps | In Stock |
