Deuterium Lamp, 30W, High Uniformity, 1 mm Arc Diameter, Full Spectrum
Deuterium Lamp, 30W, High Uniformity, 1 mm Arc Diameter, Full Spectrum
Model: 63162
In Stock
Product Series Overview

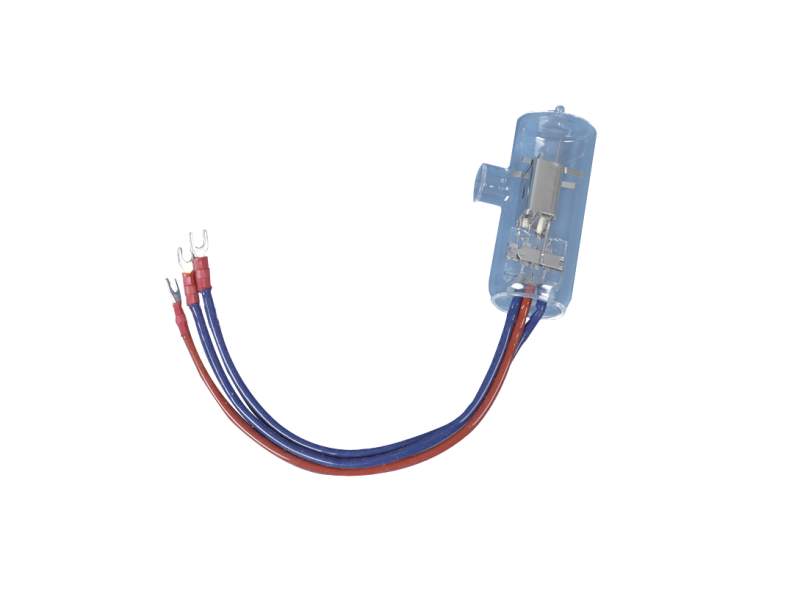

Deuterium LampsThe 63162 is a 30 watt deuterium lamp which produces high intensity ultraviolet (UV) radiation over the full spectrum from 160 to 400 nm. Arc size is 1.0 mm diameter. Emissions in the visible and infrared are negligible. This lamp is designed to mount inside the 60000 Q series lamp housing and operate at 300 mA using the 68942 power supply. Lamp life average 2000 hours. Deuterium lamps are an ideal light source for UV spectroscopy.
Specifications
- Lamp TypeDeuterium
- Lamp Wattage30 W
- Average life2000 h
- Envelope MaterialSynthetic Quartz
- Effective Arc Size1.0 mm
- Lamp Current300 mA
Resources & Downloads
2D Product Drawings
Deuterium Lamp Specifications(694.3 kB, PDF)
