Manual Iris Diaphragm, 0.08 to 1.4 in. Range, 1.5 Inch Flange
Manual Iris Diaphragm, 0.08 to 1.4 in. Range, 1.5 Inch Flange
Model: 62030
Product Series Overview

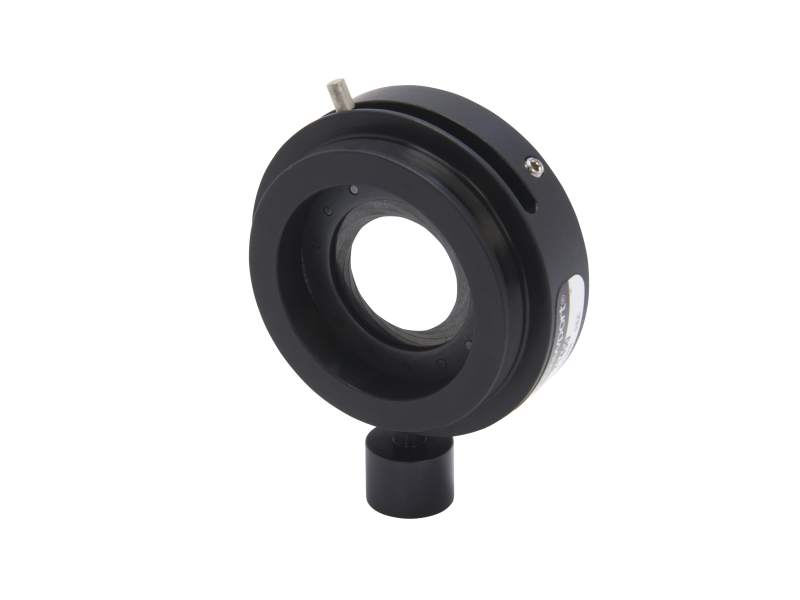

Flange Mounted Iris DiaphragmsThe 62030 Manual Iris Diaphragm is excellent for light attenuation or as a lens aperture stop. A lever on the top of the diaphragm controls the 2.0 to 36.0 mm aperture range. It has 1.5 Inch Series male and female flanges and a 1/4-20 tapped hole at the bottom.
Specifications
- TypeLever-Actuated Iris Diaphragm
- Minimum Aperture2.0 mm
- Maximum Aperture36 mm
- Thread Type1/4-20
- Optical Axis Height39 mm
- Flange Series1.5 Inch
