Multiple Filter Holder, 2.0 in. Filters, 1.5 Inch Series Flange
Multiple Filter Holder, 2.0 in. Filters, 1.5 Inch Series Flange
Model: 62020
In Stock
Product Series Overview

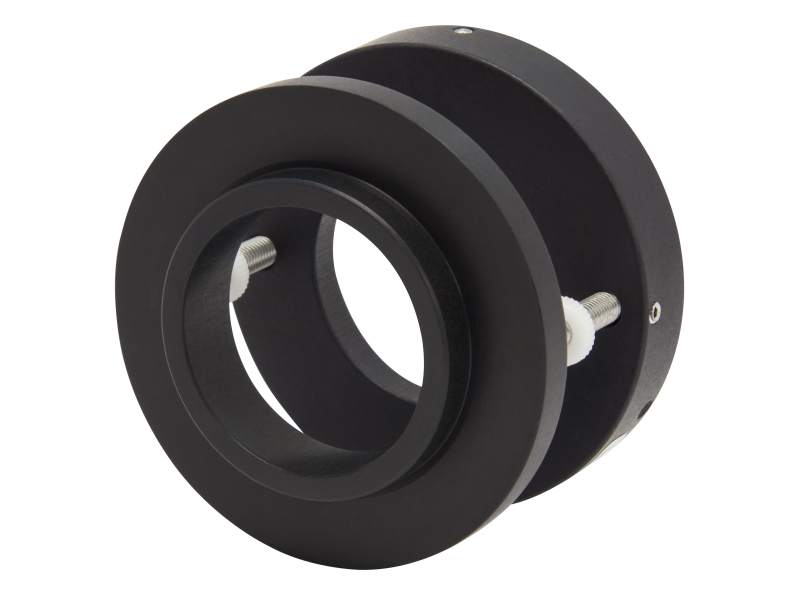

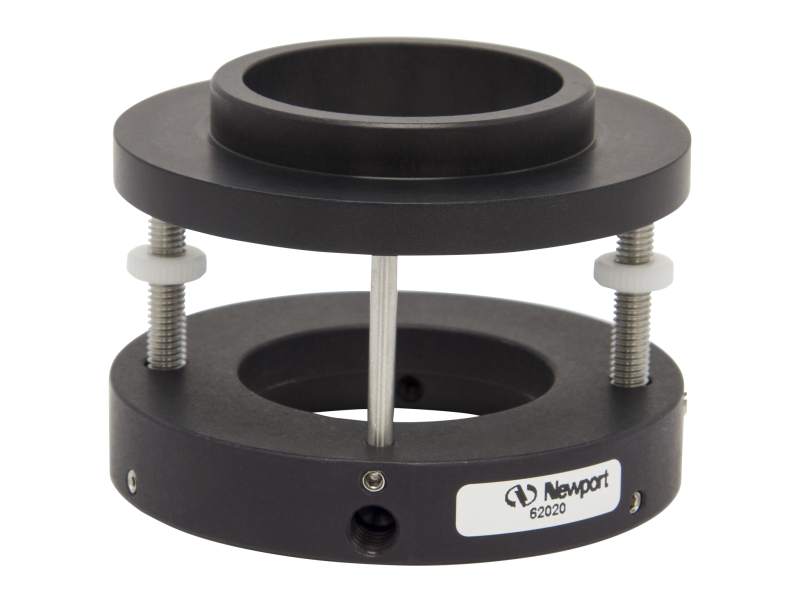

Light Source Filter HoldersThe 62020 Multiple Filter Holder is an inexpensive alternative to our enclosed models if you don’t need an enclosed light path. This filter holder is open so you have easy access to the filters and you can insert various filters simultaneously, as long as the total thickness does not exceed 3/4 inch (38.1 mm). It holds 2 inch (50.8 mm) circular or square filters, and has a 1.5 inch clear aperture. Thumbwheels hold the filters firmly in place. 1.5 Inch Series flanges.
Specifications
- TypeMultiple Filter Holder
- Flange Series Size1.5 Inch
- Filter SizeØ50.8 mm or 50.8 x 50.8 mm
- Clear Aperture38 mm
- Maximum Thickness19.1 mm
