Neutral Density Filter, 2.0 Optical Density, 1.0 in. Diameter

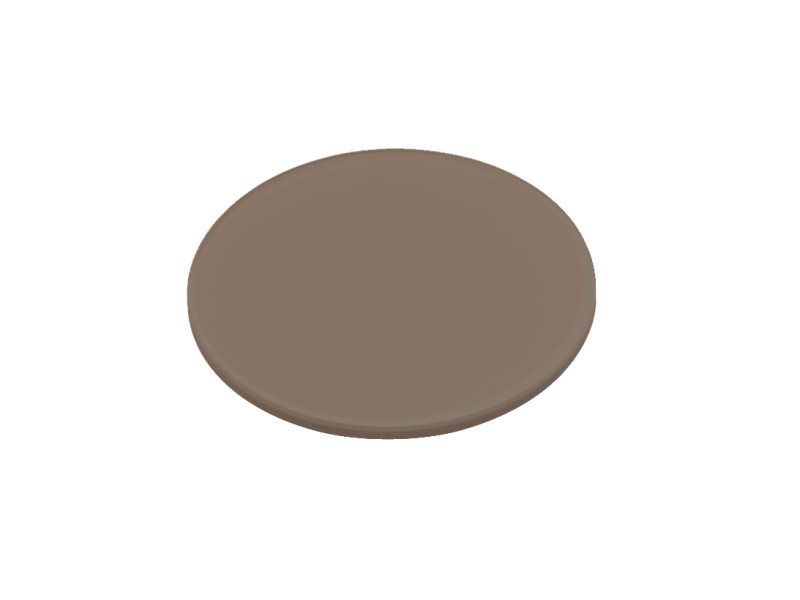

The 5242 Neutral Density Filter is made with an Inconel® metallic coating on a glass substrates. This 1.0 inch (25.4 mm) diameter ND filter provides 2.0 OD spectrally uniform attenuation over the wavelength range from 400 to 2000 nm. The reflective nature of the coating helps reduce thermal effects when this filters are used with moderate power lasers.
Specifications
- SizeØ25.4 mm
- Wavelength Range400-2000 nm
- Optical Density2
- Transmission1%
- Transmission Tolerance+1.5/-0.3%
- MaterialSchott Borofloat Glass
- Thickness1.1 mm
- Surface Flatness1 λ @ 633 nm
- Surface Quality40-20 scratch-dig
- Clear Aperture21.5 mm
- Parallelism0.5 mrad
Resources & Downloads
2D Product Drawings
NEUTRALD-10R.pdf(62.1 kB, PDF)
Other
520000-20 RoHS Certificate(262.8 kB, PDF) 520000-20_ROHS2-2021.pdf(280.2 kB, PDF)
