Sorry, this product is no longer offered for sale.

Broadband Amplitude Modulator, 900-1600 nm, DC-200 MHz, 8-32 & M4

electro optic amplitude modulator with cover removed

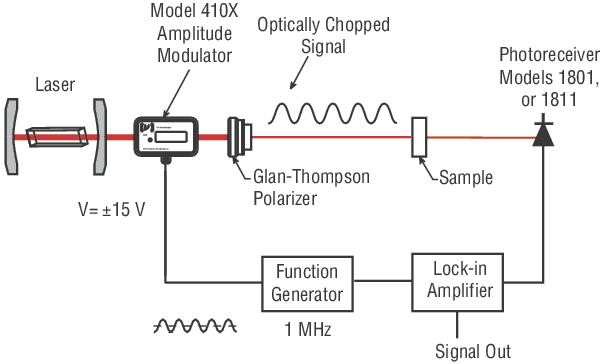

The 4104NF Broadband Amplitude Modulator is specifically designed for high performance at modulation frequencies of DC up to 200 MHz over a 900 to 1600 nm wavelength range. The crystals in this EOM are mounted at 45° so that your input polarization can be either vertical or horizontal. To minimize thermal birefringence, we use two matched crystals arranged in series. This results in amplitude modulators that exhibit less than 1 mrad/°C of temperature-dependent polarization rotation. The Model 4104 can be driven using our Model 3211 broadband-modulator drivers with a function generator. 8-32 and M4 mounting holes.

Specifications

Technical Specs

Type
Broadband Amplitude Modulator
Wavelength Range
900-1600 nm
Material
LiNbO₃
Operating Frequency
DC-200 MHz
Aperture
Ø2 mm
VSWR
NA
Maximum Input Power
1 W/mm² @ 1300 nm
Maximum RF Power
10 W

Maximum V
300 V @ 1000 nm
RF Connector
SMA
Input Impedance
10 pF
On:Off Extinction Ratio
50:1
RF Bandwidth
200 MHz

Type
Broadband Amplitude Modulator
Wavelength Range
900-1600 nm
Material
LiNbO₃
Operating Frequency
DC-200 MHz
Aperture
Ø2 mm
VSWR
NA
Maximum Input Power
1 W/mm² @ 1300 nm
Maximum RF Power
10 W

Maximum V
300 V @ 1000 nm
RF Connector
SMA
Input Impedance
10 pF
On:Off Extinction Ratio
50:1
RF Bandwidth
200 MHz

Resources & Downloads

Manuals

410X Amplitude Modulators User Manual(806.5 kB, PDF)
