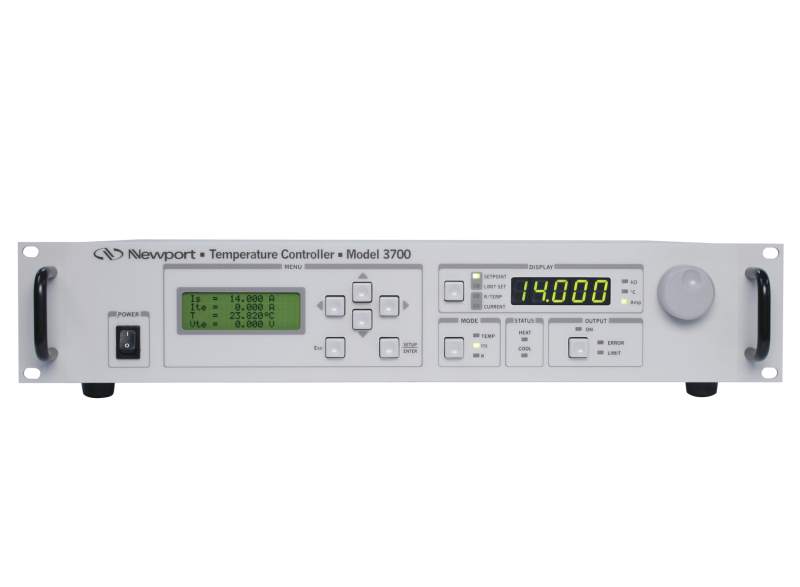

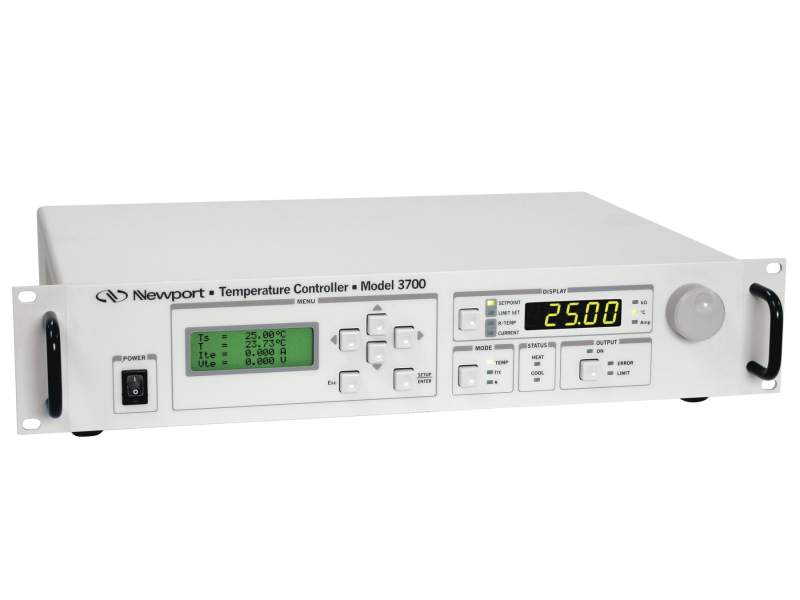

3700 Temperature Controller

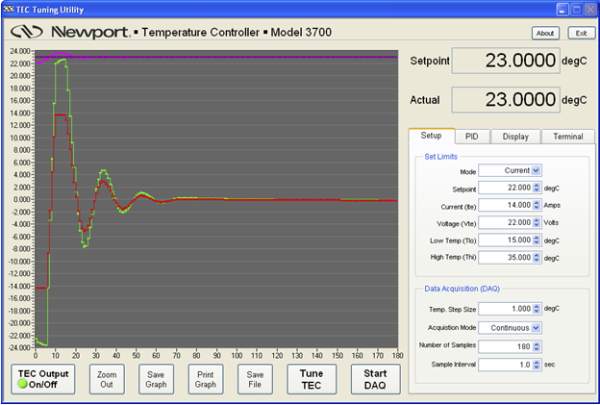

The 3700 TEC Controller provides a 336 W bipolar output for operation with thermoelectric (TE) coolers and replaces legacy Model 3150. At the unit's heart, DSP based controls allow for PID settings with fast settling times. This feature combined with sound electronics design and quality components results in great temperature stability and higher reliability.

Protection features include: ITE Limit, Hi and Lo Temperature Limits, Voltage Limits, Sensor Open and TE Open Detection. To prevent noise pickup, either by the output lines or the sensor inputs, shielded cables are also available. All standard temperature sensors including thermistors, platinum RTD, AD590/592 and LM335 IC sensors are supported without an additional interface needed. Sensor calibration constants are easily programmed for direct readout in °C.

Computer interface is possible via a USB terminal. LabVIEW drivers are included with the computer interface as a standard feature.

We offer a wide variety of precision laser diode mounts with plug and play compatibility with our laser diode instrumentation.

Specifications

Technical Specs

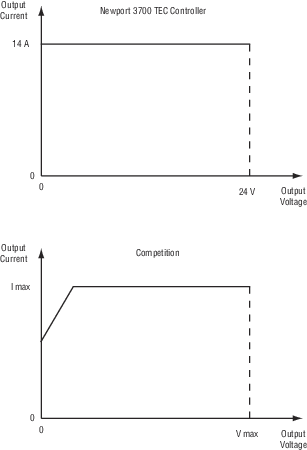

TE Current Range

-14.00 to +14.00 A
TE Voltage Range

-24 to + 24 V
TE Output Power

336 W
Temperature Range

-100 to 250°C
TE Current Accuracy

± 0.3%
TE Current Limit Accuracy

± 0.3 % FS
TEC Noise/Ripple

<1 mA

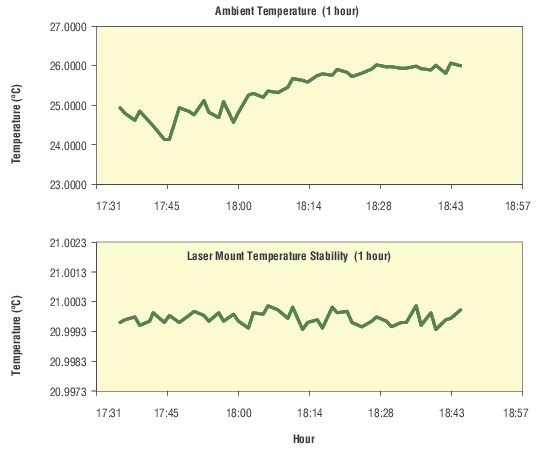

TEC Output 1 h Stability

0.0009°C

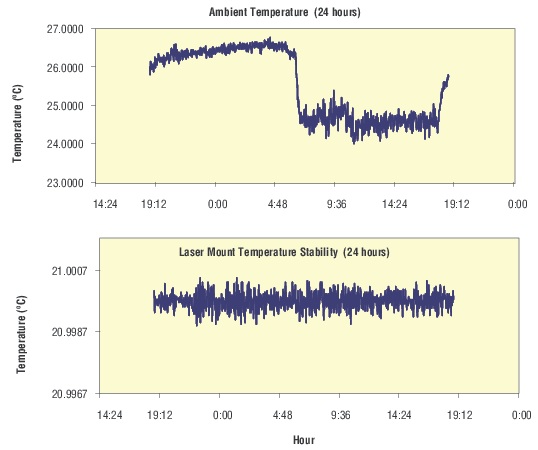

TEC Output 24 h Stability

0.0019°C

Connector Type

7-pin, female D-Sub 7W2
Computer Interfaces

USB
Display Type

4-line by 20 character alphanumerical, and seven segment display
Display Range Resistance (10 µA)

0.01 to 250.00 kΩ
Display Range Resistance (100 µA)

0.001 to 25.000 kΩ
Operating Temperature

0 to 40°C
Power Requirements

100-240 VAC, 50/60 Hz universal input

TE Current Range

-14.00 to +14.00 A
TE Voltage Range

-24 to + 24 V
TE Output Power

336 W
Temperature Range

-100 to 250°C
TE Current Accuracy

± 0.3%
TE Current Limit Accuracy

± 0.3 % FS
TEC Noise/Ripple

<1 mA
TEC Output 1 h Stability

0.0009°C
TEC Output 24 h Stability

0.0019°C

Connector Type

7-pin, female D-Sub 7W2
Computer Interfaces

USB
Display Type

4-line by 20 character alphanumerical, and seven segment display
Display Range Resistance (10 µA)

0.01 to 250.00 kΩ
Display Range Resistance (100 µA)

0.001 to 25.000 kΩ
Operating Temperature

0 to 40°C
Power Requirements

100-240 VAC, 50/60 Hz universal input
