Optical Mirror, High Finesse, Ultra-Low Loss, 25.4 mm, R>99.97%, 996-1134 nm

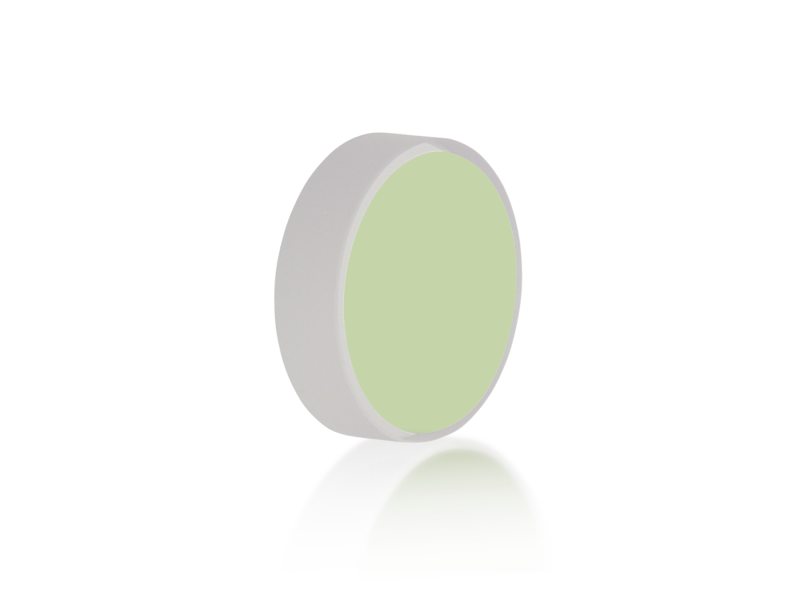

The 10CM00SR.50F is a 25.4 mm diameter, 6.35 mm thickness flat High Finesse SuperMirror, optimized for 996 - 1134 nm.
SuperMirrors™ take advantage of our advanced super polishing and ion-beam coating technology to provide the highest reflectivity and lowest losses of any commercially available mirrors over the spectral range of 583-1659 nm. When used in etalons or optical cavities, these mirrors typically provide finesse levels in excess of 30,000 — approximately 30 times better than mirrors manufactured by standard techniques.
Resources & Downloads
3D Product Models
Other
10CM00SR.50F RoHS Certificate(266 kB, PDF) 10CM00SR.50F_ROHS2-2021.pdf(280.4 kB, PDF)
2D Product Drawings
10CM00S Drawing(363.8 kB, PDF)
