Longpass Filter, Colored-Glass Alternative, 25.4 mm, 850 nm Cut-on
Longpass Filter, Colored-Glass Alternative, 25.4 mm, 850 nm Cut-on
Model: 10CGA-850
In Stock
Product Series Overview

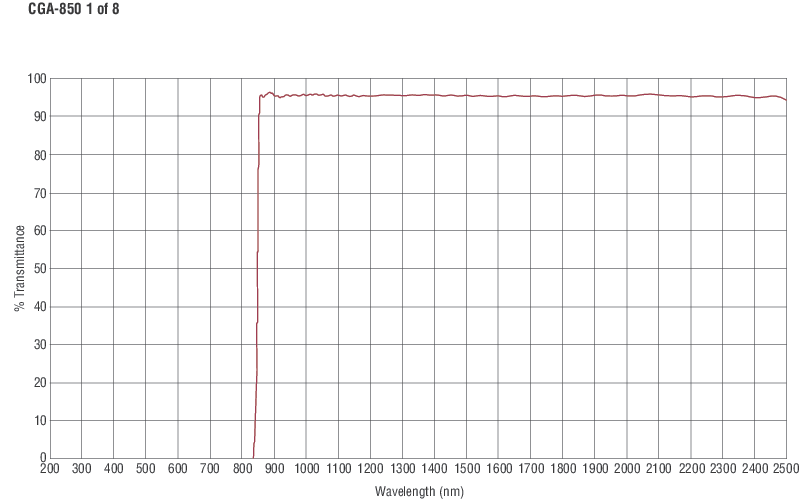

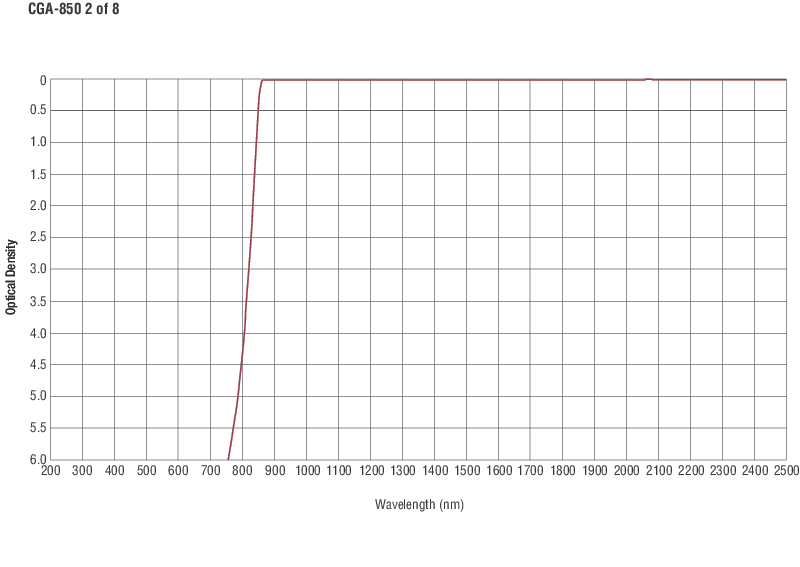

Colored Glass Alternative Longpass FiltersThe 10CGA-850 Colored-Glass Alternative Filter is a 1 inch (25.4 mm) diameter long-pass filter with a 850 ± 8.0 nm cut-on wavelength. Colored-Glass Alternative filters have a steep transition between the region of transmission and rejection (blocking) that is much steeper than colored glass filters. Colored-Glass Alternative filters have out-of-band rejection =OD 5 to 200 nm. Typical transmission is =90% average.
Specifications
- TypeColored Glass Alternative Longpass Filter
- Optic SizeØ25.4 mm
- Cut-on Wavelength850 nm
- Cut-on Wavelength Tolerance±8 nm
- Effective Index of Refraction1.8
- Surface QualityF/F (80/50) per MIL-F-48616
- Thickness1.1 mm
- Thickness Tolerance±0.1 mm
- Size Tolerance±0.13 mm
- Clear Aperture≥90% of filter size with film-to-the-edge
- Temperature Range-100 to 400°C
- Humidity ResistanceMIL-STD-810, Method 507.3, Procedure III, Modified to 40 cycles
- Abrasion, Adhesion, HardnessMIL-C-48497
- Cleaning
