Fiber-Optic Detector, Time Domain, 500-1630 nm, 12 ps, FC Singlemode

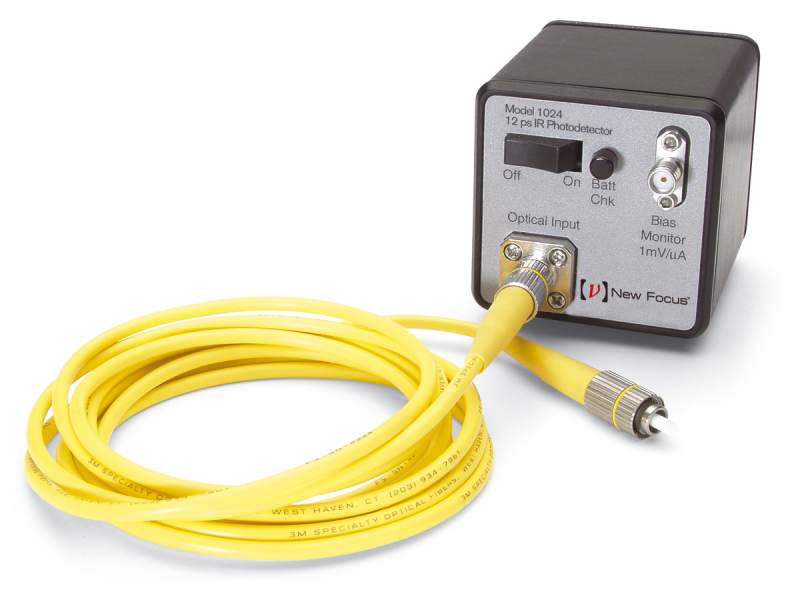

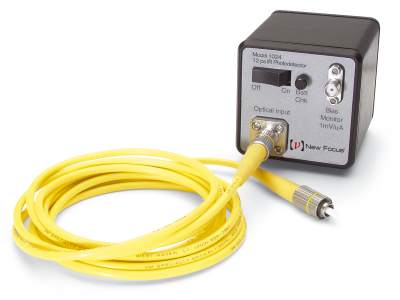

high speed fiber-optic detector model 1024

The 1024 Time Domain Optimized Ultra High-Speed Fiber-Optic Detector offers 12-ps full-width-at-half-maximum (FWHM) impulse responses for the ultimate in signal fidelity. This 500-1630 nm InGaAs photodetector is ideal for time-domain applications in high-speed digital fiber-optic communications systems, including bit-error-rate (BER) testing and characterizing modulators and other components. Wavelength range for the Model 1024 is 500-1630 nm.

Specifications

Technical Specs

Device Type
Biased Detector
Detector Material
InGaAs
Detector Diameter
12 µm
Detector Type
Schottky
Wavelength Range
500-1630 nm
3 dB Bandwidth
DC to 26 GHz
Maximum Conversion Gain
10 V/W
Responsivity
0.45 A/W
Impulse Response
12 ps FWHM
Optical Input
Fiber-optic (SM only)
Fiber-Optic Connector
FC/UPC

Fiber Type
Singlemode
NEP
45 pW/√Hz
Saturation Power
2 mW
Output Connector
Wiltron K
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
50 kHz
DC Bias Monitor Transimpedance Gain
1 V/mA
Power Requirements
Internal 9-V battery
Operating Temperature
10 - 35 °C, < 70% RH

Device Type
Biased Detector
Detector Material
InGaAs
Detector Diameter
12 µm
Detector Type
Schottky
Wavelength Range
500-1630 nm
3 dB Bandwidth
DC to 26 GHz
Maximum Conversion Gain
10 V/W
Responsivity
0.45 A/W
Impulse Response
12 ps FWHM
Optical Input
Fiber-optic (SM only)
Fiber-Optic Connector
FC/UPC

Fiber Type
Singlemode
NEP
45 pW/√Hz
Saturation Power
2 mW
Output Connector
Wiltron K
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
50 kHz
DC Bias Monitor Transimpedance Gain
1 V/mA
Power Requirements
Internal 9-V battery
Operating Temperature
10 - 35 °C, < 70% RH
