Features

Ergonomic Hand Controller

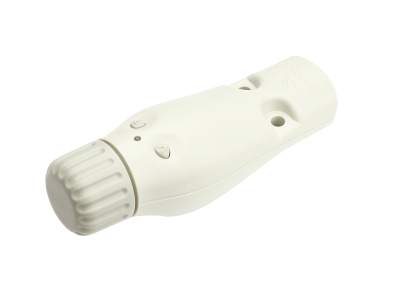

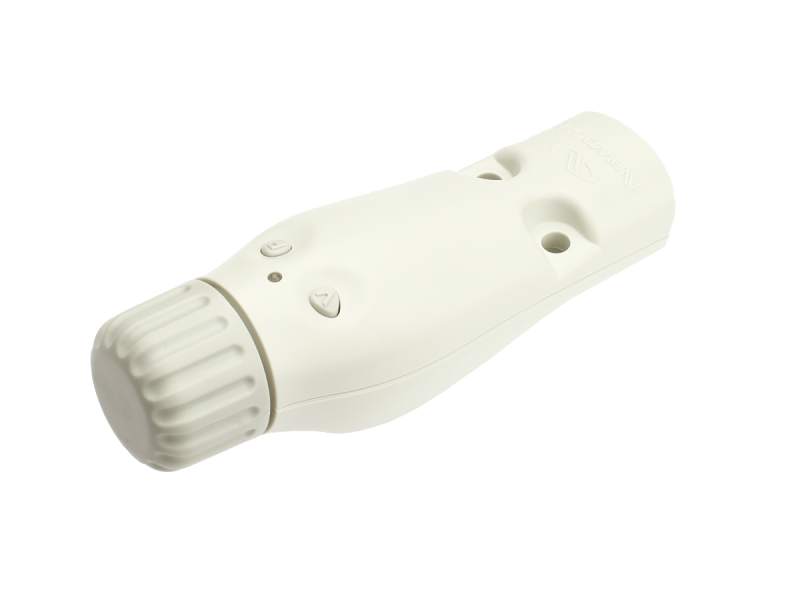

The PZC200 integrated, single-axis, piezo motor controller/driver provides convenient and ergonomic one hand speed control of the NanoPZ Ultra-High Resolution Actuators. For remote control, the PZC200 features an RS-485 port for serial communication. With optional converters, it can be connected to a computer through RS-232 or USB.

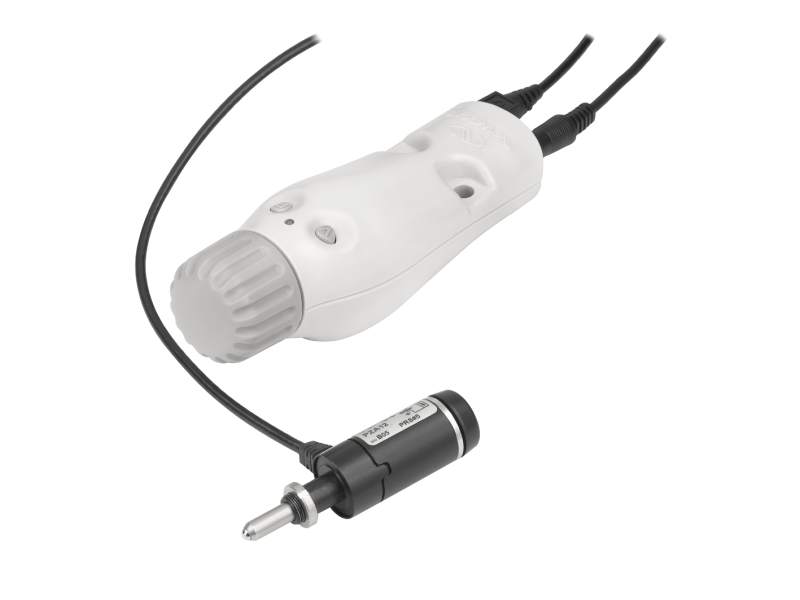

PZC200 controller with PZA12 actuator.

Control NanoPZ Equipped Stages and Mounts

RS65 rotation stages, ULTIMA optical mounts, 561D-XYZ ULTRAlign™ precision linear stages, and other Newport positioning products can be equipped with PZA12 actuators and controlled with the PZC200 single axis, controller/driver.

561D-XYZ ULTRAlign™ precision linear stage equipped with PZA12 actuators.

Control up to 8 Channels

The PZC200 integrated, single-axis, piezo motor controller/driver provides convenient and ergonomic one hand speed control of the NanoPZ Ultra-High Resolution Actuators. For remote control, the PZC200 features an RS-485 port for serial communication. With optional converters, it can be connected to a computer through RS-232 or USB.

Connection diagram for several actuators and one controller with switchbox and with computer interface.

Windows Application for Plug-and-Play Use

Included with the NanoPZ Piezo Motion Controllers is an intuitive graphical user interface Windows software application to facilitate quick, user-friendly motion control through the PZC200 controller's RS-485 (converted to RS-232 or USB) interface.
