Stainless Steel weld socket flanges are self-aligning and are offered in NW16 to NW50 ISO-KF flange sizes.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100318303 ISO-KF Weld Socket Flange, NW25, 1.0 in. Tube O.D., 304 Stainless Steel |
In Stock
|
$14.07 |
|
|||
|

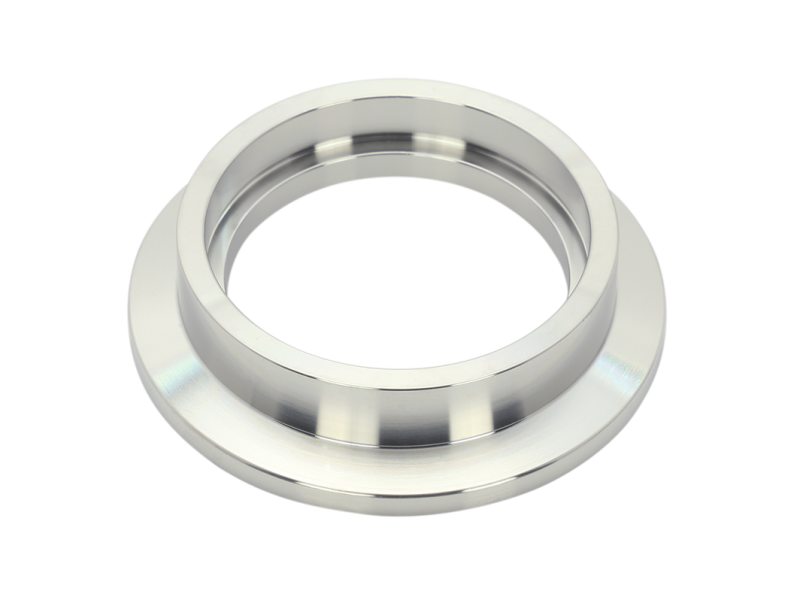

100318305 ISO-KF Weld Socket Flange, NW40, 1.5 in. Tube O.D., 304 Stainless Steel |
In Stock
|
$18.68 |
|
|||
|
100318306 ISO-KF Weld Socket Flange, NW50, 2.0 in. Tube O.D., 304 Stainless Steel |
In Stock
|
$27.89 |
|
|||
|
100318321 ISO-KF Weld Socket Flange, NW16, 0.75 in. Tube O.D., 304 Stainless Steel |
In Stock
|
$13.95 |
|
| Models |
|
|
|
|
|
|---|---|---|---|---|---|
| Component Type | Weld Socket Flange | Weld Socket Flange | Weld Socket Flange | Weld Socket Flange | |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW25 | NW40 | NW50 | NW16 | |
| Tube OD | 1.0 in. | 1.5 in. | 2.0 in. | 0.75 in. | |
| Length | 0.5 in. (12.7 mm) | 0.5 in. (12.7 mm) | 0.5 in. (12.7 mm) | 0.5 in. (12.7 mm) | |

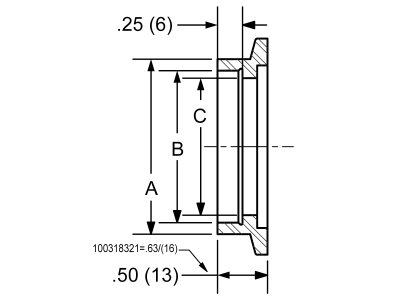

| A | 29 mm | 44 mm | 57 mm | 22 mm | |
| B | 26 mm | 38 mm | 51 mm | 19 mm | |
| C | 22 mm | 35 mm | 47 mm | 17 mm |
The International Standards Organization has defined the interface dimensions of ISO-KF vacuum flanges allowing the interchanging of components that conform to the ISO-KF standard. The ISO-KF flange system provides is a modular building block method for creating a vacuum systems. Since component dimensions are standardized, elbows, tees, crosses or valves for a given flange size can be interchanged. The flanges are sexless and the seal is symmetrical allowing components to be rotated. By using ISO-KF standard components, vacuum system assembly is quick and cost effective.
ISO-KF vacuum flange components are joined by inserting a centering ring seal between the two flange faces, then securing the assembly with a flange encompassing clamp. There are a variety of flange clamp choices available. The wing-nut flange clamp is hand tightened until metal contact is felt. The toggle flange clamp is convenient and easy to use and provides enough sealing force to fully compress the O-Ring, so that the flanges and the centering ring are metal to metal. The self-adjusting clamp locks in a positive method making it ideal when clamp must be removed frequently, like leak testing or gauge calibration. Bulkhead flange clamps attach an ISO-KF flange directly to a chamber or base plate. The two-part, bolted clamp fits over the flange with a centering ring assembly used between the flange and the opening.
