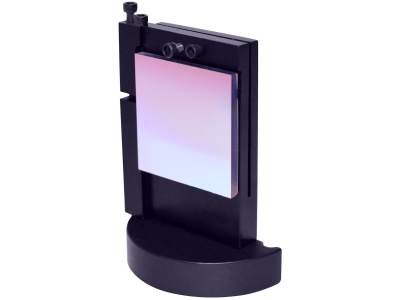

Diffraction Gratings for Oriel CS130 Monochromators

Compare	Model	Compatibility	rankScore	Type	Grooves per mm	Blaze Wavelength	Peak Efficiency	Primary Wavelength Region	Availability	Price	Brand
74021 Diffraction Grating, Cornerstone 130, Ruled, 2400 l/mm, 275 nm blaze, 200-800 nm $820 In Stock	74021 Diffraction Grating, Cornerstone 130, Ruled, 2400 l/mm, 275 nm blaze, 200-800 nm	UNIVERSAL	1.0	Ruled	2400	275 nm	69%	200 to 800 nm	In Stock	$820	Oriel Instruments
74022 Diffraction Grating, Cornerstone 130, Holographic, 1800 lines/mm, 560 nm blaze, 320-1070 nm $820 In Stock	74022 Diffraction Grating, Cornerstone 130, Holographic, 1800 lines/mm, 560 nm blaze, 320-1070 nm	UNIVERSAL	1.0	Holographic	1800	560 nm	54%	320 to 1070 nm	In Stock	$820	Oriel Instruments
74023 Diffraction Grating, Cornerstone 130, Holographic, 1200 l/mm, 240 nm blaze, 200-600 nm $820 In Stock	74023 Diffraction Grating, Cornerstone 130, Holographic, 1200 l/mm, 240 nm blaze, 200-600 nm	UNIVERSAL	1.0	Holographic	1200	240 nm	63%	200 to 600 nm	In Stock	$820	Oriel Instruments
74024 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 360 nm blaze, 200-1600 nm $1,030 Contact Us	74024 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 360 nm blaze, 200-1600 nm	UNIVERSAL	1.0	Ruled	1200	360 nm	80%	200 to 1600 nm	Contact Us	$1,030	Oriel Instruments
74025 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 750 nm blaze, 475-1600 nm $820 Contact Us	74025 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 750 nm blaze, 475-1600 nm	UNIVERSAL	1.0	Ruled	1200	750 nm	78%	475 to 1600 nm	Contact Us	$820	Oriel Instruments
74026 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 225 nm blaze, 200-400 nm $820 Contact Us	74026 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 225 nm blaze, 200-400 nm	UNIVERSAL	1.0	Ruled	600	225 nm	60%	200 to 400 nm	Contact Us	$820	Oriel Instruments
74027 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 700 nm blaze, 450-2000 nm $820 Contact Us	74027 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 700 nm blaze, 450-2000 nm	UNIVERSAL	1.0	Ruled	600	700 nm	78%	450 to 2000 nm	Contact Us	$820	Oriel Instruments
74028 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1000 nm blaze, 650-2200 nm $820 In Stock	74028 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1000 nm blaze, 650-2200 nm	UNIVERSAL	1.0	Ruled	600	1000 nm	83%	650 to 2200 nm	In Stock	$820	Oriel Instruments
74029 Diffraction Grating, Cornerstone 130, Ruled, 300 l/mm, 1700 nm blaze, 1300-5000 nm $820 In Stock	74029 Diffraction Grating, Cornerstone 130, Ruled, 300 l/mm, 1700 nm blaze, 1300-5000 nm	UNIVERSAL	1.0	Ruled	300	1700 nm	90%	1300 to 5000 nm	In Stock	$820	Oriel Instruments
74031 Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 5 um blaze, 3.5-10.25 um $1,030 Contact Us	74031 Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 5 um blaze, 3.5-10.25 um	UNIVERSAL	1.0	Ruled	150	5000 nm	85%	3.5 to 10.25 µm	Contact Us	$1,030	Oriel Instruments
74032 Diffraction Grating, Cornerstone 130, Ruled, 75 l/mm, 7 um blaze, 4.5-20 um $820 In Stock	74032 Diffraction Grating, Cornerstone 130, Ruled, 75 l/mm, 7 um blaze, 4.5-20 um	UNIVERSAL	1.0	Ruled	75	7 µm	80%	4.5 to 20 µm	In Stock	$820	Oriel Instruments
74033 Diffraction Grating, Cornerstone 130, Ruled, 50 l/mm, 12 um blaze, 7-23 um $820 Contact Us	74033 Diffraction Grating, Cornerstone 130, Ruled, 50 l/mm, 12 um blaze, 7-23 um	UNIVERSAL	1.0	Ruled	50	12 µm	80%	7 to 23 µm	Contact Us	$820	Oriel Instruments
74034 Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 800 nm blaze, 425-1600 nm $820 In Stock	74034 Diffraction Grating, Cornerstone 130, Ruled, 150 l/mm, 800 nm blaze, 425-1600 nm	UNIVERSAL	1.0	Ruled	150	800 nm	80%	425 to 1600 nm	In Stock	$820	Oriel Instruments
74035 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1600 nm blaze, 900 -3000 nm $820 Contact Us	74035 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 1600 nm blaze, 900 -3000 nm	UNIVERSAL	1.0	Ruled	600	1600 nm	85%	900 to 3000 nm	Contact Us	$820	Oriel Instruments
74036 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 500 nm blaze, 300-1100 nm $780 In Stock	74036 Diffraction Grating, Cornerstone 130, Ruled, 1200 l/mm, 500 nm blaze, 300-1100 nm	UNIVERSAL	1.0	Ruled	1200	500 nm	73%	300 to 1100 nm	In Stock	$780	Oriel Instruments
74043 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 370 nm blaze, 270-1000 nm $820 In Stock	74043 Diffraction Grating, Cornerstone 130, Ruled, 600 l/mm, 370 nm blaze, 270-1000 nm	UNIVERSAL	1.0	Ruled	600	370 nm	75%	270 to 1000 nm	In Stock	$820	Oriel Instruments

Features

High Quality

Plane ruled and holographic gratings listed here are fabricated from float glass substrates with an aluminum coating. Oriel monochromators and spectrographs feature diffraction gratings produced by Richardson Gratings. Both Oriel Instruments and Richardson Gratings are part of the Newport family of brands, and have a long history of working together to design instruments that are appropriate for a wide variety of applications.

Plane Ruled Gratings

For a plane blazed grating, the groove spacing and blaze angle determine the distribution of energy. The blaze direction for most gratings is specified for first order Littrow use. In Littrow use, light is diffracted from the grating back toward the source. Gratings used in the Littrow configuration have the advantage of maximum efficiency, or blaze, at specific wavelengths.

Blazed Holographic Gratings

Holographic gratings normally have a sinusoidal groove shape, which is the result of recording interference fringe fields in photoresist material. Since the grooves are symmetrical, they do not have a preferred blaze direction and hence the gratings carry no blaze arrows. The range of useful diffraction efficiency is controlled by varying the modulation (the ratio of groove depth to groove spacing). The lower the modulation, the shorter the wavelength limit to which the grating can be used, but the peak efficiency may be lowered as well. We have found that three modulation levels are adequate for nearly all purposes.

Broad Wavelength Coverage

Standard grating assemblies are available from UV, VIS and NIR. The primary wavelength region is where the grating efficiency is greater than or equal to 20%. System efficiency will also be affected by the reflectivity of the mirrors and the grating angle, at any wavelength. The CS130 monochromator's gratings are available with operating ranges from 200 nm to 23 µm.

High Efficiency

High-efficiency gratings are desirable for several reasons. A grating with high efficiency is more useful than one with lower efficiency in measuring weak transition lines in optical spectra. A grating with high efficiency may allow the reflectivity and transmissivity specifications for the other components in the spectrometer to be relaxed. Moreover, higher diffracted energy may imply lower instrumental stray light due to other diffracted orders, as the total energy flow for a given wavelength leaving the grating is conserved (being equal to the energy flow incident on it minus any scattering and absorption).

Special Orders Welcome

In addition to the gratings listed here, special order gratings may also be available for use in a wide variety of applications. Custom grating requests include gold coating for increased IR efficiency, AlMgF₂ coating for increased UV efficiency and many other requests. Gratings may be installed into a variety of mounts for use in specific monochromators or spectrographs. Contact Newport Sales for more information.
