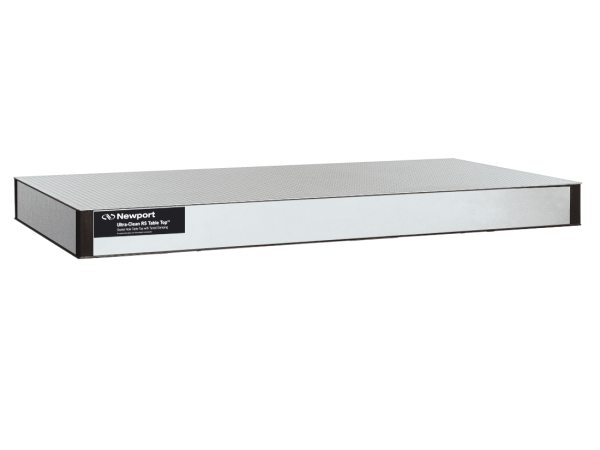

RS4000 Cleanroom Optical Table Tops with Six Precision Tuned Dampers

Our cleanroom compatible optical table tops feature six precision tuned dampers for RS4000 Series level performance. During production, the tapped hole array is sealed in a protective membrane throughout the assembly process to prevent contaminant penetration. Special procedures and extra cleaning steps are also used throughout the manufacturing process to prepare the table for cleanroom purposes up to ISO Class 5.

Requires S-2000AC cleanroom pneumatic isolators
Six precision tuned dampers
No active damping
Designed for cleanroom applications
Mounting holes individually sealed with conical polymeric cup
Honeycomb core for a lighter, stiffer table with better dynamic rigidity

See All Features

Show Filters:

Showing 134 of 134 total products

Compatibility:

Description	Compatibility	Mounting Holes	Width	Length	Thickness	Avail.
UCS-36-8Optical Table, Cleanroom, 3 x 6 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	6 ft.	8 in.	5 Weeks
UCS-36-12Optical Table, Cleanroom, 3 x 6 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	6 ft.	12 in.	4 Weeks
UCS-36-18Optical Table, Cleanroom, 3 x 6 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	6 ft.	18 in.	5 Weeks
UCS-38-8Optical Table, Cleanroom, 3 x 8 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	8 ft.	8 in.	4 Weeks
UCS-38-12Optical Table, Cleanroom, 3 x 8 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	8 ft.	12 in.	5 Weeks
UCS-38-18Optical Table, Cleanroom, 3 x 8 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	8 ft.	18 in.	5 Weeks
UCS-38-24Optical Table, Cleanroom, 3 x 8 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	8 ft.	24 in.	5 Weeks
UCS-310-8Optical Table, Cleanroom, 3 x 10 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	10 ft.	8 in.	5 Weeks
UCS-310-12Optical Table, Cleanroom, 3 x 10 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	10 ft.	12 in.	5 Weeks
UCS-310-18Optical Table, Cleanroom, 3 x 10 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	10 ft.	18 in.	5 Weeks
UCS-310-24Optical Table, Cleanroom, 3 x 10 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	3 ft.	10 ft.	24 in.	5 Weeks
UCS-46-8Optical Table, Cleanroom, 4 x 6 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	6 ft.	8 in.	5 Weeks
UCS-46-12Optical Table, Cleanroom, 4 x 6 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	6 ft.	12 in.	5 Weeks
UCS-46-18Optical Table, Cleanroom, 4 x 6 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	6 ft.	18 in.	4 Weeks
UCS-46-24Optical Table, Cleanroom, 4 x 6 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	6 ft.	24 in.	5 Weeks
UCS-48-8Optical Table, Cleanroom, 4 x 8 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	8 ft.	8 in.	4 Weeks
UCS-48-12Optical Table, Cleanroom, 4 x 8 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	8 ft.	12 in.	4 Weeks
UCS-48-18Optical Table, Cleanroom, 4 x 8 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	8 ft.	18 in.	5 Weeks
UCS-48-24Optical Table, Cleanroom, 4 x 8 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	8 ft.	24 in.	4 Weeks
UCS-410-8Optical Table, Cleanroom, 4 x 10 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	10 ft.	8 in.	5 Weeks
UCS-410-12Optical Table, Cleanroom, 4 x 10 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	10 ft.	12 in.	5 Weeks
UCS-410-18Optical Table, Cleanroom, 4 x 10 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	10 ft.	18 in.	5 Weeks
UCS-410-24Optical Table, Cleanroom, 4 x 10 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	10 ft.	24 in.	5 Weeks
UCS-412-8Optical Table, Cleanroom, 4 x 12 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	12 ft.	8 in.	5 Weeks
UCS-412-12Optical Table, Cleanroom, 4 x 12 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	12 ft.	12 in.	5 Weeks
UCS-412-18Optical Table, Cleanroom, 4 x 12 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	12 ft.	18 in.	5 Weeks
UCS-412-24Optical Table, Cleanroom, 4 x 12 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	12 ft.	24 in.	5 Weeks
UCS-414-8Optical Table, Cleanroom, 4 x 14 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	14 ft.	8 in.	5 Weeks
UCS-414-12Optical Table, Cleanroom, 4 x 14 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	14 ft.	12 in.	5 Weeks
UCS-414-18Optical Table, Cleanroom, 4 x 14 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	14 ft.	18 in.	5 Weeks
UCS-414-24Optical Table, Cleanroom, 4 x 14 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	14 ft.	24 in.	5 Weeks
UCS-416-8Optical Table, Cleanroom, 4 x 16 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	16 ft.	8 in.	5 Weeks
UCS-416-12Optical Table, Cleanroom, 4 x 16 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	16 ft.	12 in.	5 Weeks
UCS-416-18Optical Table, Cleanroom, 4 x 16 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	16 ft.	18 in.	5 Weeks
UCS-416-24Optical Table, Cleanroom, 4 x 16 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	16 ft.	24 in.	5 Weeks
UCS-418-8Optical Table, Cleanroom, 4 x 18 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	18 ft.	8 in.	5 Weeks
UCS-418-12Optical Table, Cleanroom, 4 x 18 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	18 ft.	12 in.	5 Weeks
UCS-418-18Optical Table, Cleanroom, 4 x 18 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	18 ft.	18 in.	5 Weeks
UCS-418-24Optical Table, Cleanroom, 4 x 18 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	18 ft.	24 in.	5 Weeks
UCS-420-8Optical Table, Cleanroom, 4 x 20 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	20 ft.	8 in.	5 Weeks
UCS-420-12Optical Table, Cleanroom, 4 x 20 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	20 ft.	12 in.	5 Weeks
UCS-420-18Optical Table, Cleanroom, 4 x 20 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	20 ft.	18 in.	5 Weeks
UCS-420-24Optical Table, Cleanroom, 4 x 20 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	4 ft.	20 ft.	24 in.	5 Weeks
UCS-56-8Optical Table, Cleanroom, 5 x 6 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	6 ft.	8 in.	5 Weeks
UCS-56-12Optical Table, Cleanroom, 5 x 6 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	6 ft.	12 in.	5 Weeks
UCS-56-18Optical Table, Cleanroom, 5 x 6 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	6 ft.	18 in.	5 Weeks
UCS-56-24Optical Table, Cleanroom, 5 x 6 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	6 ft.	24 in.	5 Weeks
UCS-58-8Optical Table, Cleanroom, 5 x 8 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	8 ft.	8 in.	5 Weeks
UCS-58-12Optical Table, Cleanroom, 5 x 8 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	8 ft.	12 in.	5 Weeks
UCS-58-18Optical Table, Cleanroom, 5 x 8 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	8 ft.	18 in.	5 Weeks
UCS-58-24Optical Table, Cleanroom, 5 x 8 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	8 ft.	24 in.	5 Weeks
UCS-510-8Optical Table, Cleanroom, 5 x 10 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	10 ft.	8 in.	5 Weeks
UCS-510-12Optical Table, Cleanroom, 5 x 10 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	10 ft.	12 in.	5 Weeks
UCS-510-18Optical Table, Cleanroom, 5 x 10 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	10 ft.	18 in.	4 Weeks
UCS-510-24Optical Table, Cleanroom, 5 x 10 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	10 ft.	24 in.	5 Weeks
UCS-512-8Optical Table, Cleanroom, 5 x 12 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	12 ft.	8 in.	5 Weeks
UCS-512-12Optical Table, Cleanroom, 5 x 12 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	12 ft.	12 in.	5 Weeks
UCS-512-18Optical Table, Cleanroom, 5 x 12 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	12 ft.	18 in.	5 Weeks
UCS-512-24Optical Table, Cleanroom, 5 x 12 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	12 ft.	24 in.	5 Weeks
UCS-514-8Optical Table, Cleanroom, 5 x 14 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	14 ft.	8 in.	5 Weeks
UCS-514-12Optical Table, Cleanroom, 5 x 14 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	14 ft.	12 in.	In Stock
UCS-514-18Optical Table, Cleanroom, 5 x 14 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	14 ft.	18 in.	5 Weeks
UCS-514-24Optical Table, Cleanroom, 5 x 14 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	14 ft.	24 in.	5 Weeks
UCS-516-8Optical Table, Cleanroom, 5 x 16 ft., 8 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	16 ft.	8 in.	5 Weeks
UCS-516-12Optical Table, Cleanroom, 5 x 16 ft., 12 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	16 ft.	12 in.	5 Weeks
UCS-516-18Optical Table, Cleanroom, 5 x 16 ft., 18 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	16 ft.	18 in.	5 Weeks
UCS-516-24Optical Table, Cleanroom, 5 x 16 ft., 24 in. Thick, 1/4-20 Threads	IMPERIAL	1/4-20	59.06 in.	16 ft.	24 in.	5 Weeks
M-UCS-36-8Cleanroom Optical Table, 900 x 1800 mm, 203 mm Thick, M6 Threads	METRIC	M6	900 mm	1800 mm	203 mm	Contact Us
M-UCS-36-12Cleanroom Optical Table, 900 x 1800 mm, 305 mm Thick, M6 Threads	METRIC	M6	900 mm	1800 mm	305 mm	Contact Us
M-UCS-36-18Cleanroom Optical Table, 900 x 1800 mm, 457 mm Thick, M6 Threads	METRIC	M6	900 mm	1800 mm	457 mm	Contact Us
M-UCS-38-8Cleanroom Optical Table, 900 x 2400 mm, 203 mm Thick, M6 Threads	METRIC	M6	900 mm	2400 mm	203 mm	Contact Us
M-UCS-38-12Cleanroom Optical Table, 900 x 2400 mm, 305 mm Thick, M6 Threads	METRIC	M6	900 mm	2400 mm	305 mm	Contact Us
M-UCS-38-18Cleanroom Optical Table, 900 x 2400 mm, 457 mm Thick, M6 Threads	METRIC	M6	900 mm	2400 mm	457 mm	Contact Us
M-UCS-38-24Cleanroom Optical Table, 900 x 2400 mm, 610 mm Thick, M6 Threads	METRIC	M6	900 mm	2400 mm	610 mm	Contact Us
M-UCS-310-8Optical Table, Cleanroom, 900 x 3000 mm, 203 mm Thick, M6 Threads	METRIC	M6	900 mm	3000 mm	203 mm	Contact Us
M-UCS-310-12Optical Table, Cleanroom, 900 x 3000 mm, 305 mm Thick, M6 Threads	METRIC	M6	900 mm	3000 mm	305 mm	Contact Us
M-UCS-310-18Optical Table, Cleanroom, 900 x 3000 mm, 457 mm Thick, M6 Threads	METRIC	M6	900 mm	3000 mm	457 mm	Contact Us
M-UCS-310-24Optical Table, Cleanroom, 900 x 3000 mm, 610 mm Thick, M6 Threads	METRIC	M6	900 mm	3000 mm	610 mm	Contact Us
M-UCS-46-8Cleanroom Optical Table, 1200 x 1800 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	1800 mm	203 mm	Contact Us
M-UCS-46-12Cleanroom Optical Table, 1200 x 1800 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	1800 mm	305 mm	Contact Us
M-UCS-46-18Cleanroom Optical Table, 1200 x 1800 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	1800 mm	457 mm	Contact Us
M-UCS-46-24Cleanroom Optical Table, 1200 x 1800 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	1800 mm	610 mm	Contact Us
M-UCS-48-8Cleanroom Optical Table, 1200 x 2400 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	2400 mm	203 mm	Contact Us
M-UCS-48-12Cleanroom Optical Table, 1200 x 2400 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	2400 mm	305 mm	4 Weeks
M-UCS-48-18Cleanroom Optical Table, 1200 x 2400 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	2400 mm	457 mm	Contact Us
M-UCS-48-24Cleanroom Optical Table, 1200 x 2400 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	2400 mm	610 mm	Contact Us
M-UCS-410-8Optical Table, Cleanroom, 1200 x 3000 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	3000 mm	203 mm	Contact Us
M-UCS-410-12Optical Table, Cleanroom, 1200 x 3000 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	3000 mm	305 mm	Contact Us
M-UCS-410-18Optical Table, Cleanroom, 1200 x 3000 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	3000 mm	457 mm	Contact Us
M-UCS-410-24Optical Table, Cleanroom, 1200 x 3000 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	3000 mm	610 mm	Contact Us
M-UCS-412-8Cleanroom Optical Table, 1200 x 3600 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	3600 mm	203 mm	Contact Us
M-UCS-412-12Cleanroom Optical Table, 1200 x 3600 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	3600 mm	305 mm	Contact Us
M-UCS-412-18Cleanroom Optical Table, 1200 x 3600 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	3600 mm	457 mm	Contact Us
M-UCS-412-24Cleanroom Optical Table, 1200 x 3600 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	3600 mm	610 mm	Contact Us
M-UCS-414-8Cleanroom Optical Table, 1200 x 4200 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	4200 mm	203 mm	Contact Us
M-UCS-414-12Cleanroom Optical Table, 1200 x 4200 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	4200 mm	305 mm	Contact Us
M-UCS-414-18Cleanroom Optical Table, 1200 x 4200 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	4200 mm	457 mm	Contact Us
M-UCS-414-24Cleanroom Optical Table, 1200 x 4200 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	4200 mm	610 mm	Contact Us
M-UCS-416-8Cleanroom Optical Table, 1200 x 4800 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	4800 mm	203 mm	Contact Us
M-UCS-416-12Cleanroom Optical Table, 1200 x 4800 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	4800 mm	305 mm	Contact Us
M-UCS-416-18Cleanroom Optical Table, 1200 x 4800 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	4800 mm	457 mm	Contact Us
M-UCS-416-24Cleanroom Optical Table, 1200 x 4800 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	4800 mm	610 mm	Contact Us
M-UCS-418-8Cleanroom Optical Table, 1200 x 5400 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	5400 mm	203 mm	Contact Us
M-UCS-418-12Cleanroom Optical Table, 1200 x 5400 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	5400 mm	305 mm	Contact Us
M-UCS-418-18Cleanroom Optical Table, 1200 x 5400 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	5400 mm	457 mm	Contact Us
M-UCS-418-24Cleanroom Optical Table, 1200 x 5400 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	5400 mm	610 mm	Contact Us
M-UCS-420-8Optical Table, Cleanroom, 1200 x 6000 mm, 203 mm Thick, M6 Threads	METRIC	M6	1200 mm	6000 mm	203 mm	Contact Us
M-UCS-420-12Optical Table, Cleanroom, 1200 x 6000 mm, 305 mm Thick, M6 Threads	METRIC	M6	1200 mm	6000 mm	305 mm	Contact Us
M-UCS-420-18Optical Table, Cleanroom, 1200 x 6000 mm, 457 mm Thick, M6 Threads	METRIC	M6	1200 mm	6000 mm	457 mm	Contact Us
M-UCS-420-24Optical Table, Cleanroom, 1200 x 6000 mm, 610 mm Thick, M6 Threads	METRIC	M6	1200 mm	6000 mm	610 mm	Contact Us
M-UCS-56-8Cleanroom Optical Table, 1500 x 1800 mm, 203 mm Thick, M6 Threads	METRIC	M6	1500 mm	1800 mm	203 mm	Contact Us
M-UCS-56-12Cleanroom Optical Table, 1500 x 1800 mm, 305 mm Thick, M6 Threads	METRIC	M6	1500 mm	1800 mm	305 mm	Contact Us
M-UCS-56-18Cleanroom Optical Table, 1500 x 1800 mm, 457 mm Thick, M6 Threads	METRIC	M6	1500 mm	1800 mm	457 mm	Contact Us
M-UCS-56-24Cleanroom Optical Table, 1500 x 1800 mm, 610 mm Thick, M6 Threads	METRIC	M6	1500 mm	1800 mm	610 mm	Contact Us
M-UCS-58-8Cleanroom Optical Table, 1500 x 2400 mm, 203 mm Thick, M6 Threads	METRIC	M6	1500 mm	2400 mm	203 mm	Contact Us
M-UCS-58-12Cleanroom Optical Table, 1500 x 2400 mm, 305 mm Thick, M6 Threads	METRIC	M6	1500 mm	2400 mm	305 mm	Contact Us
M-UCS-58-18Cleanroom Optical Table, 1500 x 2400 mm, 457 mm Thick, M6 Threads	METRIC	M6	1500 mm	2400 mm	457 mm	Contact Us
M-UCS-58-24Cleanroom Optical Table, 1500 x 2400 mm, 610 mm Thick, M6 Threads	METRIC	M6	1500 mm	2400 mm	610 mm	Contact Us
M-UCS-510-8Optical Table, Cleanroom, 1500 x 3000 mm, 203 mm Thick, M6 Threads	METRIC	M6	1500 mm	3000 mm	203 mm	Contact Us
M-UCS-510-12Optical Table, Cleanroom, 1500 x 3000 mm, 305 mm Thick, M6 Threads	METRIC	M6	1500 mm	3000 mm	305 mm	Contact Us
M-UCS-510-18Optical Table, Cleanroom, 1500 x 3000 mm, 457 mm Thick, M6 Threads	METRIC	M6	1500 mm	3000 mm	457 mm	Contact Us
M-UCS-510-24Optical Table, Cleanroom, 1500 x 3000 mm, 610 mm Thick, M6 Threads	METRIC	M6	1500 mm	3000 mm	610 mm	Contact Us
M-UCS-512-8Cleanroom Optical Table, 1500 x 3600 mm, 203 mm Thick, M6 Threads	METRIC	M6	1500 mm	3600 mm	203 mm	Contact Us
M-UCS-512-12Cleanroom Optical Table, 1500 x 3600 mm, 305 mm Thick, M6 Threads	METRIC	M6	1500 mm	3600 mm	305 mm	Contact Us
M-UCS-512-18Cleanroom Optical Table, 1500 x 3600 mm, 457 mm Thick, M6 Threads	METRIC	M6	1500 mm	3600 mm	457 mm	Contact Us
M-UCS-512-24Cleanroom Optical Table, 1500 x 3600 mm, 610 mm Thick, M6 Threads	METRIC	M6	1500 mm	3600 mm	610 mm	Contact Us
M-UCS-514-8Cleanroom Optical Table, 1500 x 4200 mm, 203 mm Thick, M6 Threads	METRIC	M6	1500 mm	4200 mm	203 mm	Contact Us
M-UCS-514-12Cleanroom Optical Table, 1500 x 4200 mm, 305 mm Thick, M6 Threads	METRIC	M6	1500 mm	4200 mm	305 mm	Contact Us
M-UCS-514-18Cleanroom Optical Table, 1500 x 4200 mm, 457 mm Thick, M6 Threads	METRIC	M6	1500 mm	4200 mm	457 mm	Contact Us
M-UCS-514-24Cleanroom Optical Table, 1500 x 4200 mm, 610 mm Thick, M6 Threads	METRIC	M6	1500 mm	4200 mm	610 mm	Contact Us
M-UCS-516-8Cleanroom Optical Table, 1500 x 4800 mm, 203 mm Thick, M6 Threads	METRIC	M6	1500 mm	4800 mm	203 mm	Contact Us
M-UCS-516-12Cleanroom Optical Table, 1500 x 4800 mm, 305 mm Thick, M6 Threads	METRIC	M6	1500 mm	4800 mm	305 mm	Contact Us
M-UCS-516-18Cleanroom Optical Table, 1500 x 4800 mm, 457 mm Thick, M6 Threads	METRIC	M6	1500 mm	4800 mm	457 mm	Contact Us
M-UCS-516-24Cleanroom Optical Table, 1500 x 4800 mm, 610 mm Thick, M6 Threads	METRIC	M6	1500 mm	4800 mm	610 mm	Contact Us

Show Less

Selection Guide

Optical Table Selection Guide

Newport offers a wide variety of Optical Tables including our broadband damped RPR Series Optical Tables, precision tuned damped RS Series Optical Tables, and actively damped SmartTable Optical Tables with IQ Damping Technology. Our optical table solutions are designed to fit any performance, budget and delivery need. From very demanding applications like confocal microscopy, spectroscopy or interferometry, to applications under a small budget, Newport has the right optical table for them all.

Table Top Series	Hybrid SmartTable	Active SmartTable	Upgradable SmartTable¹	Passive RS4000	Passive RS2000	Broadband RPR
Applications	Check Out Our Complete Optical Table Selection Guide
Active IQ Dampers	2	2	0 ⇒ 2	0	0	0
Precision Tuned Dampers	2	0	2	6	2	0
Broadband Damping	Constrained Layer Core, Damped Working Surface, Composite Edge Finish
Damping Performance	★★★★	★★★	★★★★	★★★	★★	★
Cost	$$$$	$$$$	$$$$	$$$	$$	$
Working Surface	4.8 mm Thick 430 Ferromagnetic Stainless Steel
Bottom Skin	4.8 mm Thick Carbon Steel
Core Design	Vertically Bonded Trussed Honeycomb
Side Panels	Highly Damped Composite Wood
Mounting Holes	Individually Sealed
Mounting Threads	1/4-20 (M6) on 1 in. (25 mm) Grid
Standard Tabletops	SST	ST	ST-UT2	RS4000	RS2000	RPR
Other Standard Versions	N/A	N/A	N/A	Cleanroom	Double Density	Non-Magnetic
Table Supports	Check Out Our Optical Table Supports
Table and Support Systems²	OTS-SST Isolated	OTS-ST Isolated Rigid	OTS-UT2 Isolated Rigid	N/A	INT4 Isolated Rigid	INT2 Isolated Rigid

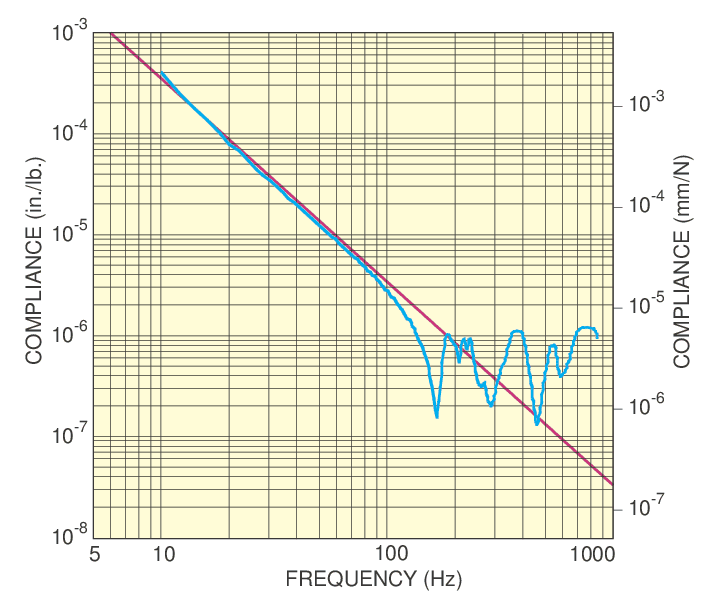

Compliance Curve³

1. Upgradable SmartTable can be field upgraded to Hybrid SmartTable by installing two active IQ dampers.
2. Table system is offered with pneumatic isolation support or rigid support. The table top in table system has different leg mounting holes than standalone table tops.
3. The compliance curve is based on a 4 ft x 8 ft x 12 in table top.

Specifications

Type
Cleanroom Optical Table Top
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
6 precision tuned dampers
Working Surface
4.8 mm thick ferromagnetic 430 stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over 2 ft. (600 mm) square

Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Alpha-Numeric Grid Labels
Yes
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material

Features

RS4000 Broadband and Tuned Damping Performance

RS4000 cleanroom optical tables are a culmination of many years of experience, innovation and attention to detail leading to unmatched vibration immunity. These tables feature a 4.8 mm thick optical table skin, a constrained layer core, damped working surface and composite edge finish to provide broadband damping. Six precision tuned dampers are included to selectively eliminate four fundamental structural table modes and their entire harmonics. Originally designed for high end interferometric research, these optical tables are the best choice for extremely sensitive measurements requiring the utmost in vibration control.

The compliance curve shows the positional motion of the structure for a given excitation force and frequency. The red line is the rigid body line showing how an ideal optical table would perform with no relative motion. The blue line shows the natural frequencies of the optical table and how they deviate from that of a rigid body.

Compliance curve for a RS4000 4 ft x 8 ft x 12 in. (1200 x 2400 x 305 mm) table top.

Super Rigid Trussed Honeycomb Core Design

Newport's honeycomb core is different than our competitors. Each piece of the corrugated honeycomb steel sheet is emerged in proprietary elastomeric vibration absorbing materials and bonded vertically throughout the height of the optical breadboard or optical table, creating a much stiffer honeycomb core structure. This labor intensive procedure makes sure that Newport's optical breadboard or optical table has the most robust honeycomb structures.

Vertically Bonded Triple Core Interface

All Newport tables are vertically bonded along the height of the honeycomb core. Most other manufacturers forego this extra step because of added expense and time required to apply adhesive to each individual core member. Vertical bonding adds constrained layer damping effects into the core, while maximizing the table’s rigidity-to-weight ratio. The trussed core design enables a triple core interface at each honeycomb cell. Whereas open core designs only have two structural members at each interface, the Newport table has three offering a 50% increase in local rigidity. The three sheets are fully bonded for the full table height producing greater stiffness.

Individually Sealed Mounting Holes

All of Newport's optical breadboards and tables are with individually sealed mounting holes. Those mounting holes feature 19 mm screw depth and in contrast to some of the other products in the market that has channel for a row of holes or just a polymeric film, Newport's individually sealed holes are more reliable and easier to clean. This is because we believe in the integrity of the product - especially the core. When dust and liquids go into your optical breadboard and table, it may have a long term effect on the damping performance of the product and make the product degrade over time. A good quality breadboard and table lasts long time - tens of years and more. It's a good investment for a product with sealed mounting holes.

Precision Grid of Tapped, Countersunk & Deburred Mounting Holes

The 1/4-20 or M6 tapped mounting holes are countersunk and deburred. This ensures easy thread engagement while eliminating contamination problems. The mounting holes are located on a 1 in. or 25 mm grid with standard grid markings for easy and repeatable component placement.

Highly Damped Side Panels

Side panels for optical tables are more than just covers. They should contribute to the overall damping performance of the table. Our optical tables use highly damped composite wood as side panels to help eliminate vibrations from the side. Composite wood has a much better damping performance than steel. Steel has a high elasticity and tends to allow vibration or ringing. Materials with low elasticity such as wood tend to dampen vibration and ringing. For example, home stereo speakers are typically enclosed by composite wood to damp the acoustic vibrations.

Unique Pressure Bonding Process Ensures Superior Flatness

Metrology quality steel assembly platens are used to ensure the superior flatness of our optical tables. The platen supports the top surface of the table during the assembly and bonding process and imprints the top surface with the same flatness characteristics. Our platens are the largest and flattest in the industry. We use gravity pressure bonding to apply constant pressure across the optical table during the bonding process ensuring that the top surface conforms to the platen flatness.

Cleanroom Pneumatic Vibration Isolator Supports

Our S-2000AC Series cleanroom pneumatic isolators are designed for use with our UCS Series cleanroom optical table tops. They are manufactured using Newport's exclusive cleanroom preparation procedures to maximize the cleanliness of the product to be used in cleanroom applications. Uniquely designed features such as hybrid chamber, laminar flow damping technology and adjustable height make S-2000A superior the best in isolation specifications and ease of use in the market.

Optical Table Accessory Options

We offer a compete set of optical table accessories to free up space on your optical table or enclose a table top experiment of application. Accessories include:

Custom Optical Table Design Options

Newport has a dedicated custom design team for your custom needs. This team has been working with various types of materials, shapes (see doubled table tops), structures, hole patterns (and many more) for over 40 years, and has served customers across the world in research, aerospace, semiconductor and medical related fields. Newport is committed to providing: The most accurate and timely quoting response; The most professional communications of custom design review and changes; The optimum turnaround time and the highest quality end product. Contact Newport today for your custom needs.

Cleanroom Ready Optical Tables

Our UCS cleanroom optical tables undergo specialized preparation to support compatibility with environments up to ISO Class 5. During production, the tapped hole array is sealed with a protective membrane to prevent contaminant intrusion throughout the entire assembly process. All components and assembly levels are wiped with isopropyl alcohol, with all exterior surfaces thoroughly cleaned prior to double-bag packaging, followed by application of a white edge finish. Additional measures, including high-pressure washing and controlled handling with vinyl gloves, ensure the required cleanliness level is achieved.

Note: While not produced in a certified cleanroom environment, these enhanced processes are intended to support compatibility with cleanroom applications.

RS4000 Cleanroom Optical Table Tops with Six Precision Tuned Dampers

RS4000 Cleanroom Optical Table Tops with Six Precision Tuned Dampers

Selection Guide

Optical Table Selection Guide

Specifications

Features

RS4000 Broadband and Tuned Damping Performance

Super Rigid Trussed Honeycomb Core Design

Vertically Bonded Triple Core Interface

Individually Sealed Mounting Holes

Precision Grid of Tapped, Countersunk & Deburred Mounting Holes

Highly Damped Side Panels

Unique Pressure Bonding Process Ensures Superior Flatness

Cleanroom Pneumatic Vibration Isolator Supports

Optical Table Accessory Options

Custom Optical Table Design Options

Cleanroom Ready Optical Tables

Resources

2D Product Drawings

Manuals

Technical Articles

Tutorials

Technical Notes

Related Products

S-2000AC Cleanroom Pneumatic Vibration Isolators

Low VOC LaserClean Optical Breadboard Plates

RS4000 Optical Table Tops with Six Tuned Dampers

Optical Table Enclosures

Optical Table Shelf Systems

Table Earthquake Restraints
