Broadband Turning Mirror, Ultrafast, 25.4 mm, S Pol, 670-1340 nm

The 10Q20UF.55S Ultrafast Broadband Turning Mirrors is ideal for use with ultrashort pulses lasers as a high reflectance mirror at 45° angle of incidence for a very broad wavelength range spanning from 670 to 1340 nm. Designed to reflect over 99.7% at S polarization, this mirror can be used exclusively with Spectra-Physics Insight™lasers. Careful thin film design and advanced coating processes result in a mirror with maximum reflectivity, maximum bandwidth and minimum effect on pulse dispersion. Minimizing phase distortion and neutral GDD across the tuning range, this mirror is optimized for S polarization.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
670-1340 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Fused Silica
Coating Type
Broadband Ultrafast Pulse Coating
Coating Code
UF.55S
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Wedge
< 10 arc min
Angle of Incidence
45°

Clear Aperture
≥ central 80% of diameter
Back Surface
Commercial Polished

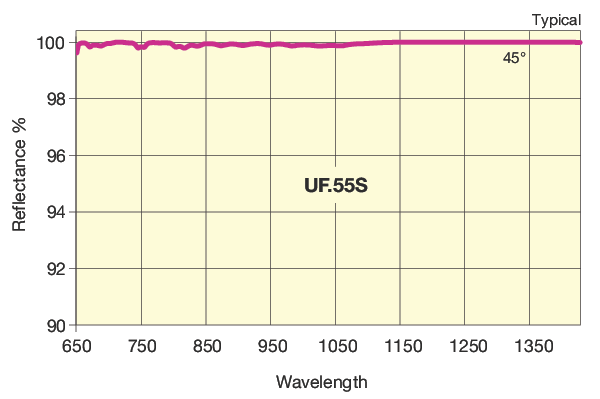

Reflectivity
R_s>99.7% @ 670-1340 nm
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.5-0.75 mm face width
Chamfers Angle Tolerance
45 ±15°
Cleaning
See How to Clean Optics

Wavelength Region
Broadband
Wavelength Range
670-1340 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Fused Silica
Coating Type
Broadband Ultrafast Pulse Coating
Coating Code
UF.55S
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Wedge
< 10 arc min
Angle of Incidence
45°

Clear Aperture
≥ central 80% of diameter
Back Surface
Commercial Polished
Reflectivity
R_s>99.7% @ 670-1340 nm
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.5-0.75 mm face width
Chamfers Angle Tolerance
45 ±15°
Cleaning
See How to Clean Optics
