Specifications

  • Center Wavelength Tolerance
    ±0.5 nm
  • Operating Temperature Range
    10 to 35 °C
  • Storage Temperature Range
    -10 to 55 °C
  • Humidity
    < 80%, non-condensing
  • CE Certified
    Yes

Features

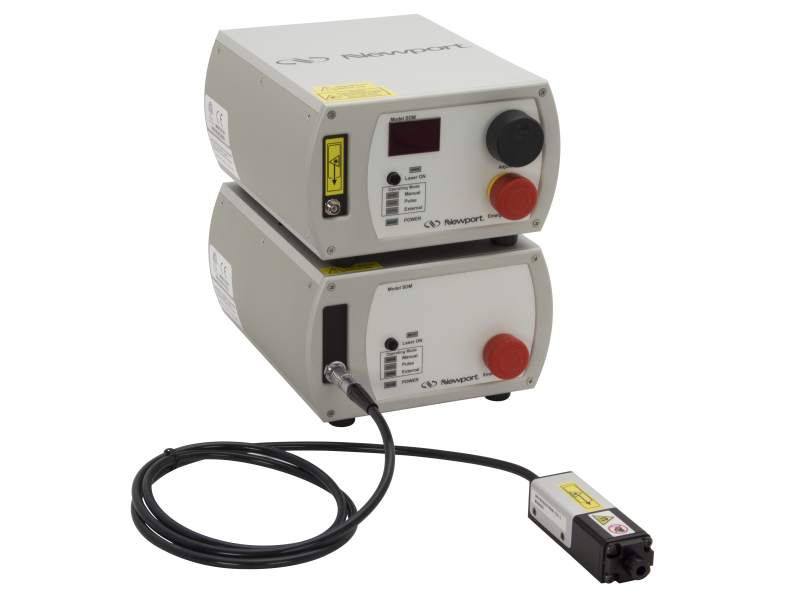

Free Space Tethered Head or Fiber-Coupled Options

We offer the laser modules with free space or fiber-coupled output options. The free space configuration features a tethered head, offering ease of use and flexibility for different setups, and allows the user to bring the open beam laser output to the sample.

Wavelength Stabilized Spectrum

The proprietary design of the Spectrum Stabilized Laser features high output power with narrow spectral bandwidth. The laser’s stabilized peak wavelength remains locked regardless of case temperature, making this source an ideal choice for the most demanding applications.

Optical Isolator Option

To help prevent back reflection back into the tethered head models, optical isolator options are available to ensure diode longevity and performance. Select a model that ends with -IS for ultimate performance and protection.

High Power

The Spectrum Stabilized Laser Modules can offer up to 500 mW of power.

Applications

  • Raman Spectroscopy
  • Confocal Microscopy
  • Interferometry
  • Bioinstrumentation
  • Cytometry
