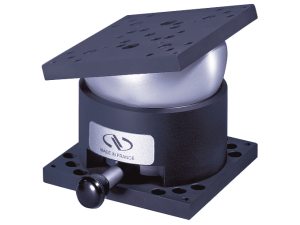

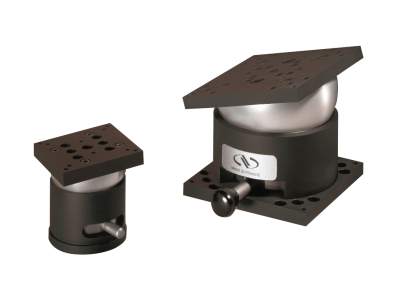

Three-Axis Ball-and-Socket Tilt Stages

Ball and Socket Stages provide up to ±25° of tilt in any direction and a full 360° of rotation. They are practical for rapid coarse alignment with full freedom of angular rotation..These tilt and rotation stages are useful for positioning video cameras, detectors, lighting systems, and targets.

Three axis tilt and rotation stages
±25° tilt in any direction
360° rotation with clutch lock

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Tilt	Tip	Rotation	Platform Size	Load Capacity	Avail.	Price
		M-RN-50Ball and Socket Stage, ±25° Tilt, 50x50 mm Platform, Metric	UNIVERSAL		±25°	±25°	360°	50 x 50 mm	15 kg	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$510
		M-RN-86Ball & Socket Stage ,±25° Tilt,360° Rotation, 86x86mm Platform, Metric	UNIVERSAL		±25°	±25°	360°	86 x 86 mm	25 kg	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$646

Specifications

Models
Tilt	±25°	±25°
Tip	±25°	±25°
Rotation	360°	360°
Platform Size	50 x 50 mm	86 x 86 mm
Load Capacity	15 kg	25 kg
Thread Type	M3	M3 and M4

Features

360° Quick Positioning and Fast Locking

These tilt/rotation stages are useful for manually positioning video cameras, detectors, lighting systems, or targets and then locking them in place. The ball and socket design enables a full 360° rotation range. A simple clutch lever locks and unlocks the rotation of the platform in any position.

Compatible with PI Series Adapter Plates

The mounting-hole pattern for the platform of M-RN-50 is the same as the Adapter Plate. The mounting-hole pattern for the platform and base of M-RN-86 is the same as the Adapter Plate. The load capacity for the M–RN–86 is 25 kg (55 lbs), and the load capacity for the M-RN-50 is 15 kg (33 lbs).
