1.5 in. Post Mirror Mount Adapters

These stainless steel adapters offer options for mounting components onto the top of or along the height of a 1.5 in. (38.1 mm) diameter optical rod. The SR-ADP mirror mount adapter with a counterbored thru hole and threaded mounting holes allows rod-mounting of components at non-standard heights. The SR-SC sliding clamp can mount a mirror mount at any angle and height to a 1.5 in. optical rod, and when used with the "V"-grooved extension post, its spring-loaded ball detent allows it to ride linearly along the SR-4P's length while preventing unintentional rotation.

Allow mirror mounts to be mounted on 1.5 in. optical posts
Both counterbored thru hole and threaded mounting holes
Stainless steel construction

See All Features

Show Filters:

Showing 4 of 4 total products

Compatibility:

Description	Compatibility	Type	Height	Thread Type	Avail.	Price
SR-ADPMirror Mount Adaptor, 1.5 in. Diameter Posts and Pillars, 8-32 and 1/4-20	IMPERIAL	Mirror Mount Adaptor	12.7 mm	8-32 and 1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$23
SR-SCPost Clamp, Sliding, 1.5 in. Diameter Posts and Pillars, 1/4-20 Thread	IMPERIAL	Sliding Clamp		8-32	In Stock	$95
M-SR-ADPMirror Mount Adaptor, 38.1 mm Diameter Posts and Pillars, M4 and M6	METRIC	Mirror Mount Adaptor	12.7 mm	M4 and M6	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$23
M-SR-SCPost Clamp, Sliding, 38.1 mm Diameter Posts and Pillars, M4 Thread	METRIC	Sliding Clamp		M4	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$95

Features

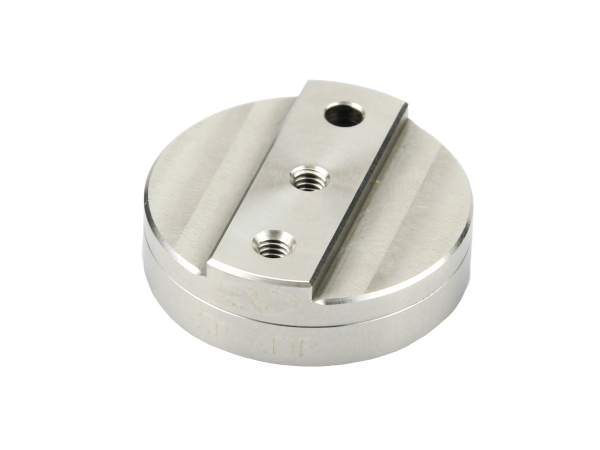

Post Top Adapter for Mirror Mounts

The (M-) SR-ADP Mirror Mounting Adapter features a 1/4-20 (M6) threaded hole in the center of the bottom and directly mounts to 1.5 in. optical posts or pedestals. Its top side has a counterbored thru hole and two threaded mounting holes accepting opto-mechanical components with threaded (i.e. SN100-F) or thru-holes. The scribed line around the diameter of the adapter is to set height when being used with the Q-XE-RA-1 to center optical axis height of a mirror mount being used within the Q-OC-1 Cube.

Sliding Clamp with Spring-Loaded Ball Detent

(M-) SR-SC sliding clamp mounts a mirror mount at any angle and height to a 1.5 in. optical rod. When used with the 'V'-grooved (M-) SR-4P Rod, its spring-loaded ball detent allows it to ride linearly along the SR-4P’s length preventing unintentional rotation during height adjustment.
