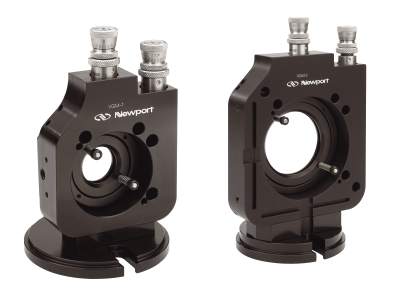

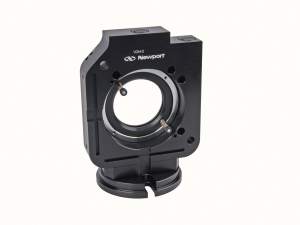

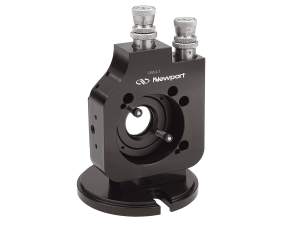

Top Adjust Gimbal Mirror Mounts

With both drives accessible from the top side, VGM Series top-adjust gimbal mounts are ideal for applications where adjustments must be performed without obstructing the beam path, such as laser-cavity mirrors, output couplers and beamsplitters.

Adjustment without obstructing the beam path
True gimbal motion
Exchangeable actuators
Low stress mirror mounting mechanism

See All Features

Show Filters:

Showing 6 of 6 total products

Compatibility:

Description	Compatibility	Optic Diameter	Drive Type	Adjustment Screw Thread	Sensitivity	Avail.	Price

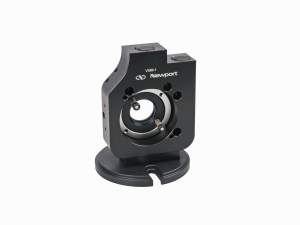

VGM-1NGimbal Optical Mount, Vertical Drive, 1.0 in., No Actuators	UNIVERSAL	25.4 mm	Not Included			FREE 2-day shipping on thousands of products on Newport.com Learn More	$785
VGM-1AJSGimbal Optical Mount, Vertical Drive, 1.0 in., AJS Adjustment Screws	UNIVERSAL	25.4 mm	Knob, locking	100 TPI	4.9 arc sec	FREE 2-day shipping on thousands of products on Newport.com Learn More	$847
VGM-1BMGimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers	UNIVERSAL	25.4 mm	Micrometer	51 TPI	9.7 arc sec		$1,400
VGM-2NGimbal Optical Mount, Vertical Drive, 2.0 in. Diameter, No Actuators	UNIVERSAL	50.8 mm	Not Included			FREE 2-day shipping on thousands of products on Newport.com Learn More	$955
VGM-2AJSGimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws	UNIVERSAL	50.8 mm	Knob, locking	100 TPI	3.3 arc sec	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,013

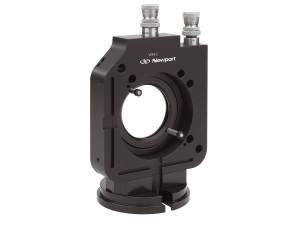

VGM-2BMGimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers	UNIVERSAL	50.8 mm	Micrometer	51 TPI	6.5 arc sec		$1,561

Specifications

Mechanism
Gimbal
Optic Diameter
2
Adjustments
θx, θy

Optic Loading
Rear
Material
Anodized Aluminum
Thread Type
1/4-20 (M6) SLOT

Features

Keep Your Hands Out of Harms Way

Top adjust mounts have their adjustment screws located above where the optic is held so that your hands never have to cross into the beam path area.

Your Choice of Actuator - Or Not

VGM series Top-Adjust Gimbal Mounts are offered in three choices. For applications requiring a user-supplied actuator, VGM mounts can be ordered without actuators.

Model	Included Actuators
-AJS	AJS100-0.5
-BM	BM17.04N
-N	N/A

Accessories

Micrometer Actuators

Description	Compatibility	Avail.	Price
BM17.04NMicrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$332
BHC17.04Adjustment Screw, Hex, M12 x 0.50, 4mm Travel, BHC Series	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$185
BD17.04Differential Micrometer Head, 4.3 mm Coarse, 0.3 mm Fine, 11 lb. Load	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$434
DM17-4Differential Micrometer Head, 4.1 mm Coarse, 0.1 mm Fine, 11 lb. Load	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$606
AJS170-0.5K-NLAdjustment Screw, 170 TPI, 12.7 mm Travel, Large Knob	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$77
AJS254-0.5K-NLAdjustment Screw, 254 TPI, 12.7 mm, 280 nm Sensitivity, Large Knob	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$95

Optic Adaptors

Description	Compatibility	Avail.	Price

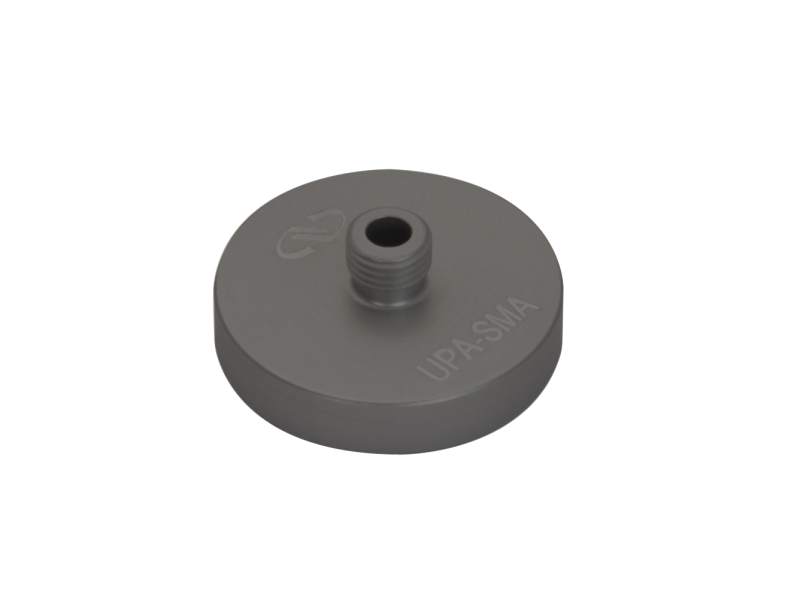

UPA-SMAFiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$44

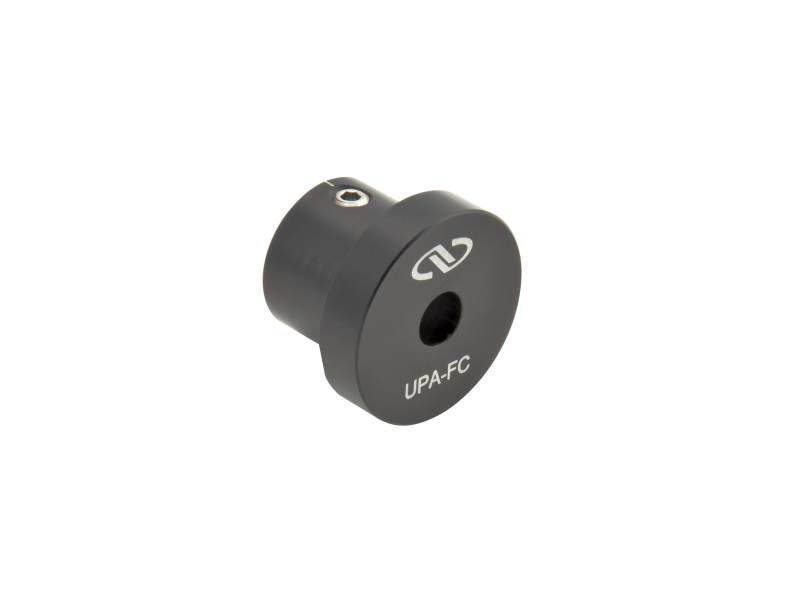

UPA-FCFiber Chuck Adaptor, 0.25 in., 1.0 in. Optic Mounts	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$28

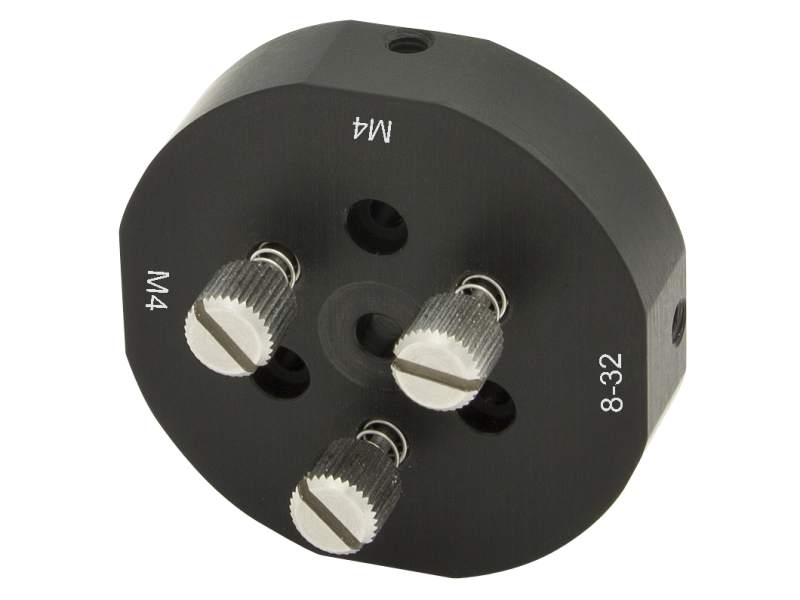

UPA2-OAPMounting Adapter, Off-Axis Parabolic Mirror, for 2 in. Mounts	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$56

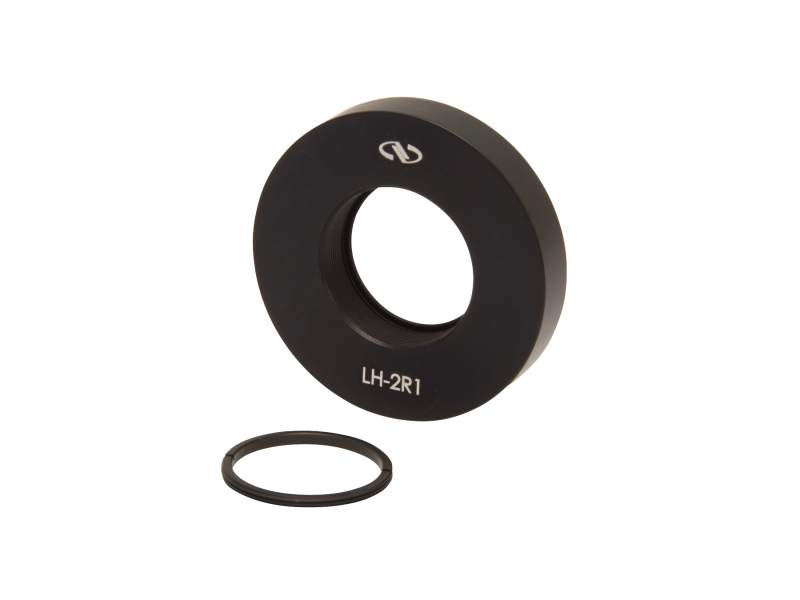

LH-2R1Lens Adaptor, 2.0 in. Mount to 1.0 in. Diameter Lens, A-LINE	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$32

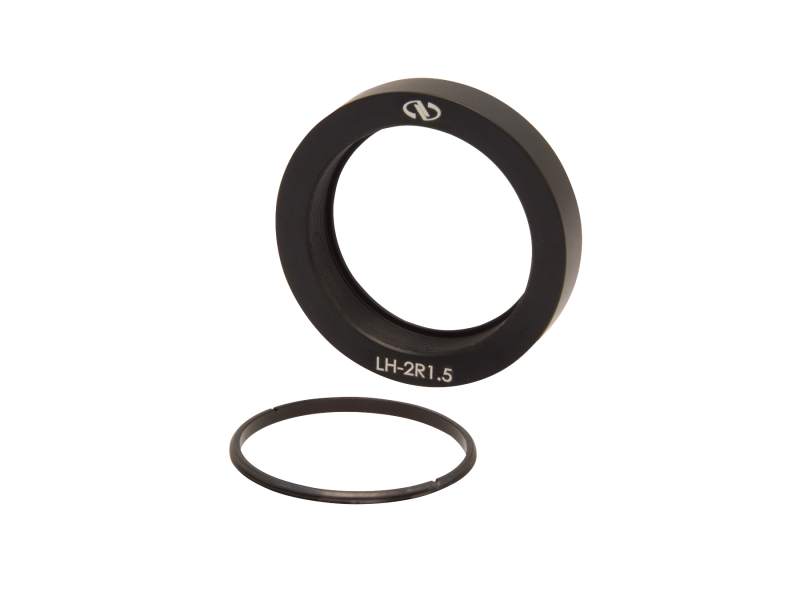

LH-2R1.5Lens Adaptor, 2.0 in. Mount to 1.5 in. Diameter Lens, A-LINE	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$32

Precision Spacers

Description	Compatibility	Avail.	Price
SR-0.125-SPedestal Pillar Spacer, 0.125 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$15.90
SR-0.063-SPedestal Pillar Spacer, 0.063 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$14.70
SR-0.25-SPedestal Pillar Spacer, 0.25 in. Thick, 1.5 in. Diameter, 1/4-20 CLR	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$17.70
PS-0.125-TPedestal Spacer, 0.125 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$10.60
PS-0.063-TPedestal Spacer, 0.0625 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$9.30
PS-0.031-TPedestal Spacer, 0.0313 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$9.30
PS-0.25-TPedestal Spacer, 0.25 in. Thick, 1.0 in. Diameter, 1/4-20 (M6) CLR	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$10.60

Other Top-Adjust Mounts

Description	Compatibility	Avail.	Price
HVM-05rMirror Mount, Industrial, Vertical Drive, Rear Load, 0.5 in., 2 Locking Allen-Keys	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$215
HVM-1iMirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32	IMPERIAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$205

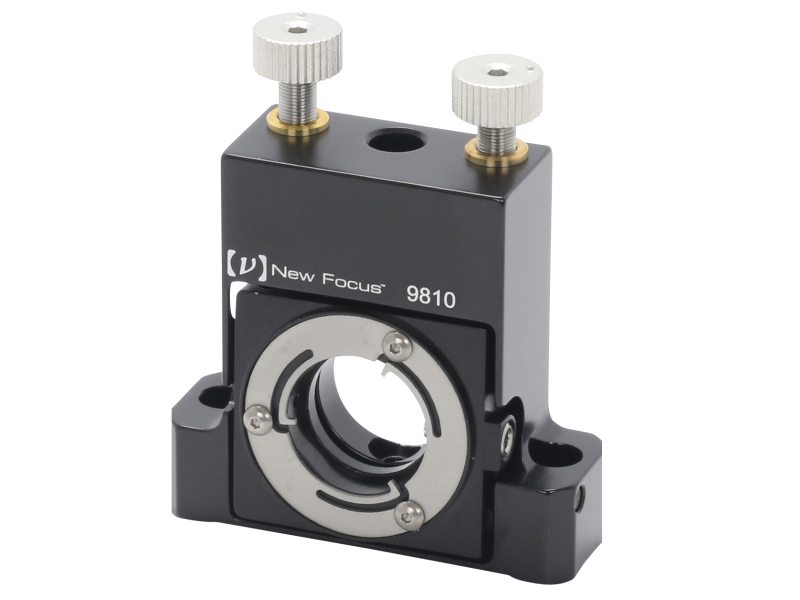

9810-3Mirror Mount, Stability, Top Adjust, 0.5 in., 2 Knobs	UNIVERSAL		$432
9814-6Mirror Mount, Stability, Top Adjust, 1.0 in., 2 Knobs	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$515
