A-Line™ Fixed Cube Mounts
A-Line™ Fixed Cube Mounts

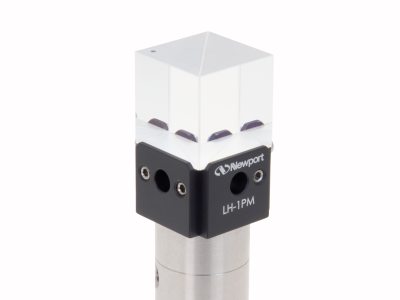

The A-LINE™ LH-1PM Fixed Cube Mount is a convenient and economical solution for mounting 1.0 inch (25.4 mm) cube beamsplitters.
- Convenient solution for mounting and aligning 1.0 in. cubes
- Novel edge clamping feature to holds the cube firmly
- Guide rod holes available on all 4 sides for alignment See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LH-1PMFixed Cube Mount, 1.0 in. (25.4 mm), A-LINE | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
A-Line™ Fixed Cube Mount

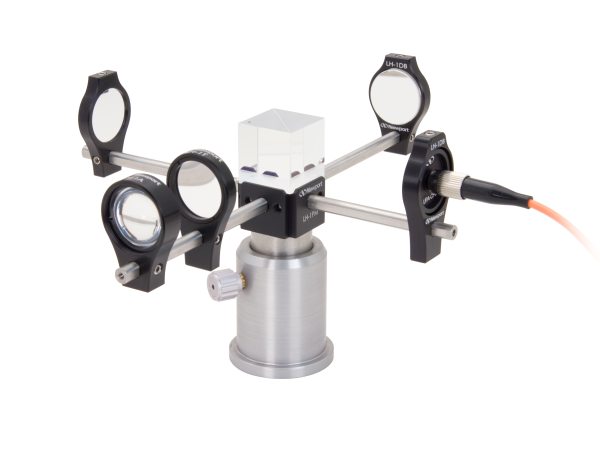

The LH-1PM fixed cube mount consists of a novel edge clamping feature to hold the optic firmly, but gently. The holder incorporates an 8-32 (M4) counterbored mounting hole for post mounting. All four sides of the holder also have special 6-mm alignment holes, which can be used with LH-GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.
A-Line Cube Mount Video
Watch this video to learn more about A-Line Cube Mount LH-1PM.
Accessories
Compatible A-Line Polarizer Mount
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LH-1PRPolarizer Rotation Mount, 25.4 mm, 8-32 Thread, A-LINE | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| M-LH-1PRPolarizer Rotation Mount, A-LINE, 25.4 mm Diameter, M4 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
