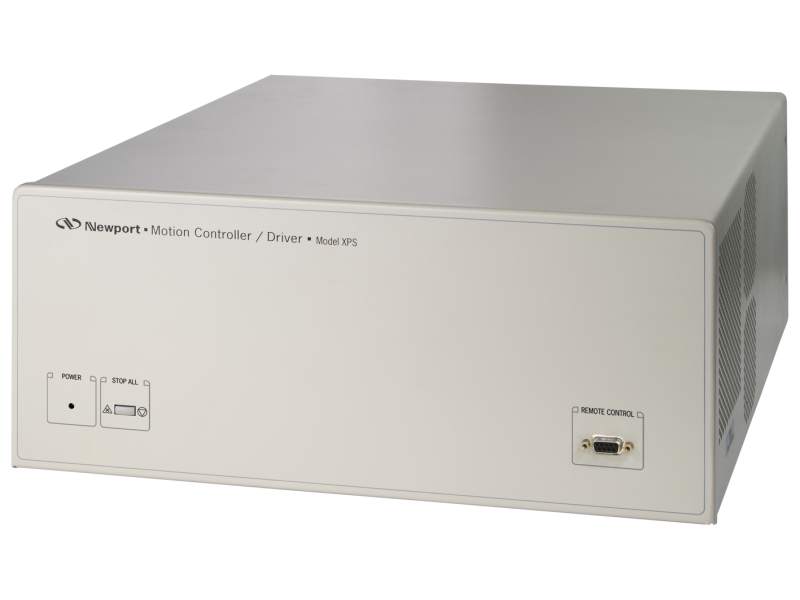

6-axis Universal Controller/Driver, ethernet
The XPS-Q6 is an extremely high-performance, easy to use, 6-axis integrated motion controller/driver. The XPS-Q6 utilizes the more robust QNX operating system, while maintaining the feature-rich firmware of the XPS-C6. It offers high-speed communication through 10/100 Base-T Ethernet, outstanding trajectory accuracy and powerful programming functionality. Combining user-friendly web interfaces with advanced trajectory and synchronization features, the XPS-Q6 precisely controls the most complex to the most basic motion sequences. Multiple digital and analog I/O's, triggers and supplemental encoder inputs provide users with additional data acquisition, synchronization and control features that can improve the most demanding motion applications.Proprietary universal driver modules allow the XPS to drive 1 to 6 axes of any Newport actuator, linear, rotary or NanoPositioning stage. By using pass-through drive modules, the XPS is also capable of controlling many other motion devices, whether they use stepper, DC brush, DC brushless rotary or linear, voice coil or piezoelectric actuation. Driver Modules must be purchased separately. EPICS compatible.
For stage compatibility click here: Stage Compatibility Matrix.
Resources & Downloads
Application Notes
Fiber Spool Winding Application with Custom 5-Axis Motion System(145.1 kB, PDF) XY-Theta Motion System For Laser Scribing on LED Wafer(1.3 MB, PDF) AWARE - Wide Field of View Camera(517.7 kB, PDF) Extremely Large Telescope Metrology(408.5 kB, PDF) Building a High Performance Non-contact Optical Surface Metrology System(400.4 kB, PDF) Scanning X-ray Fluorescence with Newport Linear Stages(1.7 MB) Terahertz Pulse Generation with Ultrafast Laser and GTS Precision Linear Stage(641.2 kB, PDF) Ultrafast Laser Micromachining with Newport XYZ Motion System(393.9 kB, PDF) Optical Inspection With XY Stages in Lithography Machine System(221 kB, PDF) Z-Scan for the Characterization of Transparent Optical Materials(407.7 kB, PDF) Photon Echo Spectroscopy(315.6 kB, PDF) High Speed Automated Optical Inspection (AOI) System(611 kB, PDF) Three-Dimensional Microfabrication by Two-Photon Polymerization(932.1 kB, PDF) A Diamond in the Rough: Industrial Diamond Cutting and Processing with a 4-Axis Precision Motion System(517.1 kB, PDF) Fiber Grating Inscription System With Newport IMS Series Stage(211.5 kB, PDF) Photoresponse Mapping of Photovoltaic Cells(5.4 MB, PDF) Workstation for Laser Direct-Write Processing(4.4 MB, PDF)
2D Product Drawings
XPS Controller(390.3 kB, PDF)
Literature
LMS Data Sheet(2.2 MB, PDF) Mini Laser Machining Brochure 2016(1.4 MB, PDF) Laser Machining Brochure 2018(3.4 MB, PDF)
Other
XPS-Q8 Configuration Wizard Documentation(2.4 MB, PDF) XPS-Q8 Release Note(1.3 MB, PDF)
Software
XPS-Q_Drivers(387.8 kB, ZIP) XPS GCode Version 2.03(7.5 MB, ZIP) XPS_GUI_Installer_Win7(1.3 MB, ZIP) XPS Example Software Code(1.1 MB, ZIP) Microsoft.NetFramework4.0(775.9 kB, ZIP) XPS_GUI_Installer_WinXP(1.2 MB, ZIP) XPS-Q8 Standard Installer Pack 30039.zip(90.2 MB, ZIP) XPS Firmware History(321 kB, PDF) StageDataBase_V 3.0.6(153.8 kB, ZIP) XPS / HXP . NET Assembly_V2.3.0(9.5 MB, ZIP) XPSQ8StandardInstallerPack30035.exe.zip XPSQ8StandardInstallerPack30035.exe.zip
Manuals
XPS-Q8 Software Drivers Manual(295.1 kB, PDF) XPS Quick Start(1.4 MB, PDF) XPS-Q8 XPS Documentation(15.4 MB, PDF) XPS-Q8 TCL Manual(1.5 MB, PDF)
Technical Notes
XPS-Q High Speed Position Compare Output(1 MB, PDF) Interfacing an Interferometer Encoder to an XPS Controller(148.9 kB, PDF) FTP Connection to the XPS with Internet Explorer Version 7 and Later(307.7 kB, PDF) XPS TCL Script to Execute a PVT Trajectory(249.7 kB, PDF) A Beginner’s Guide to Homing with the XPS(1.8 MB, PDF) Setting up an XPS with a Direct Drive Stage and SIN/COS Encoder(1.8 MB, PDF) Trigger Synchronization using a Newport XPS Series Motion Controller(303.1 kB, PDF) XPS Positioner Mapping Compensation(200.1 kB, PDF) Stage and Controller Compatibility Guide
