XY Double-Slotted Base Pack, Stainless Steel, 1.0 in. Range, Qty 10

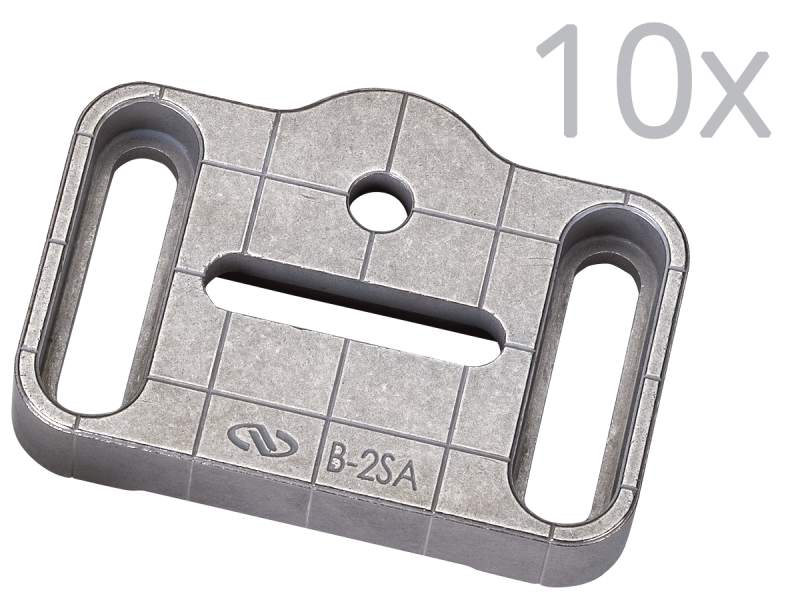

This is a 10-pack of the Stainless Steel Double Slotted Base. The B-2SA, provides coarse tool-free x-y positioning through the novel use of a hex head bolt in a counterbored slot. Simply twist the post holder to loosen, slide to the desired position, and then twist back to tighten - all without removing the base from the table! The base also has another bottom-side counterbored through hole to allow attachment of post holders like the VPH-3 or posts like the PS-3T. The base rests on relieved pads to provide long term stability.

Specifications

Technical Specs

Type
Slotted Base
Thread Type
1/4-20 (M6) CLR
Material
Stainless Steel

Translation Range
25 mm

Type
Slotted Base
Thread Type
1/4-20 (M6) CLR
Material
Stainless Steel

Translation Range
25 mm

Resources & Downloads

2D Product Drawings

B-2SA-S(160.2 kB, PDF)

Other

B-2SA-PK RoHS Certificate(278.6 kB, PDF)
B-2SA-PK_RoHS2021.pdf(683 kB, PDF)
