Slotted Base Pack, 0.68 in. Range Single Slot, Stainless Steel, Qty 10

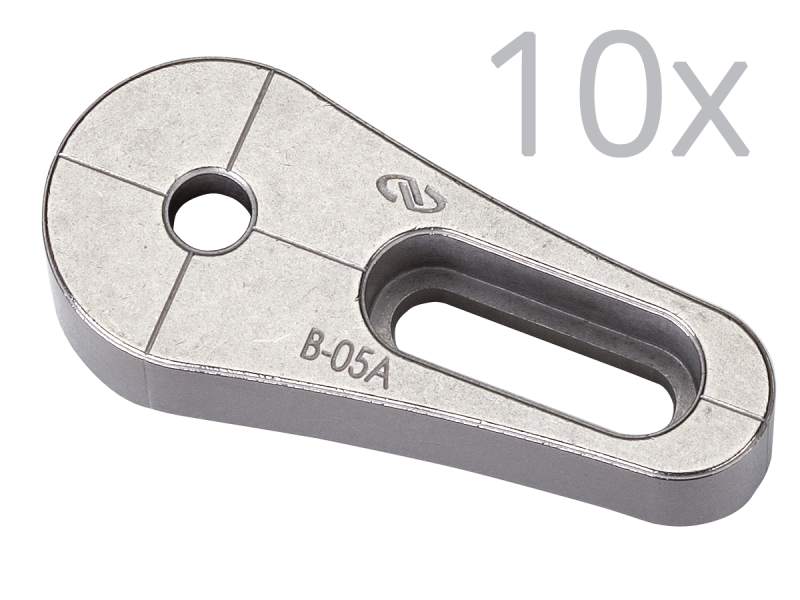

This is a 10-pack of the Stainless Steel Slotted Base. The Model B-05A Stainless Steel Slotted Base provides a single slot allowing both translational and rotational positioning to any point on the table. The base also has bottom-side counterbored through hole to allow attachment of post holders like the VPH-3 or posts like the PS-3T. The base rests on three pads to provide long term stability.

Specifications

Technical Specs

Type
Slotted Base
Thread Type
1/4-20 (M6) CLR
Material
Stainless Steel

Translation Range
17 mm

Type
Slotted Base
Thread Type
1/4-20 (M6) CLR
Material
Stainless Steel

Translation Range
17 mm

Resources & Downloads

2D Product Drawings

B-05A-S(144.4 kB, PDF)

Other

B-05A-PK RoHS Certificate(278.7 kB, PDF)
B-05A-PK_RoHS2021.pdf(683.7 kB, PDF)
