B-1A-PK Double Slotted Base Pack

This is a 10-pack of the Stainless Steel Double Slotted Base. The B-1A is an in-line double slotted post holder base made from stainless steel. The in-line slot configuration allows the base to translated linearly with out rotation. The base also has a bottom-side counterbored through hole to allow attachment of post holders like the VPH-3 or posts like the PS-3T. The base rests on four pads to provide long term stability.

Specifications

Technical Specs

Type
Slotted Base
Thread Type
1/4-20 (M6) CLR
Material
Stainless Steel

Translation Range
17 mm

Type
Slotted Base
Thread Type
1/4-20 (M6) CLR
Material
Stainless Steel

Translation Range
17 mm

Resources & Downloads

2D Product Drawings

B-1A-S(146.6 kB, PDF)

Other

B-1A-PK RoHS Certificate(278.3 kB, PDF)
B-1A-PK_RoHS2021.pdf(681.8 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price
B-2SADouble-Slotted Base, Stainless Steel, XY, 1.0 in. Range	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$14.70

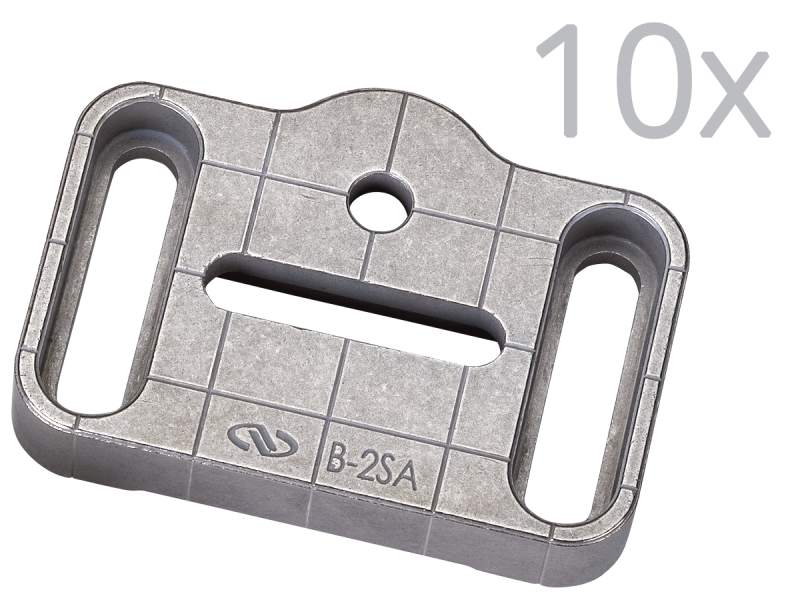

B-2SA-PKXY Double-Slotted Base Pack, Stainless Steel, 1.0 in. Range, Qty 10	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$135
M-BK-1AKinematic Base, Magnetic, 25 mm Square, Metric	METRIC	FREE 2-day shipping on thousands of products on Newport.com Learn More	$119

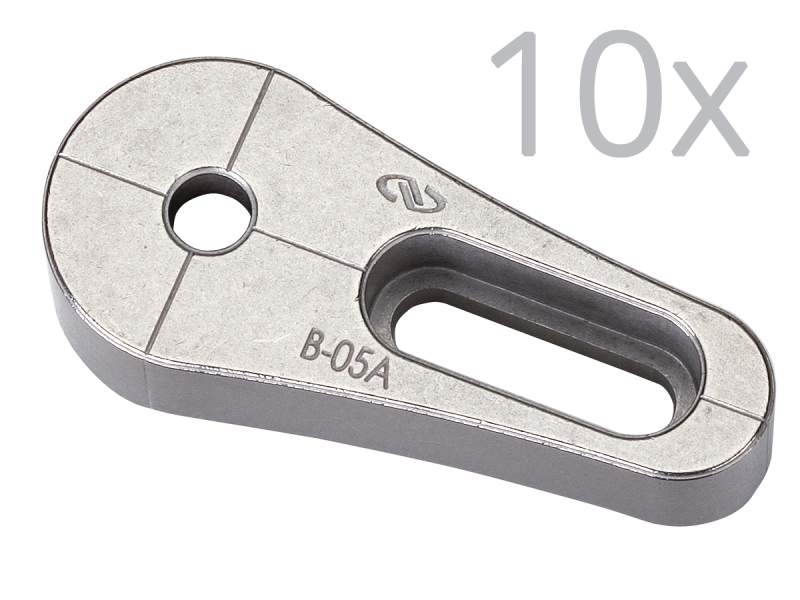

B-05A-PKSlotted Base Pack, 0.68 in. Range Single Slot, Stainless Steel, Qty 10	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$100
