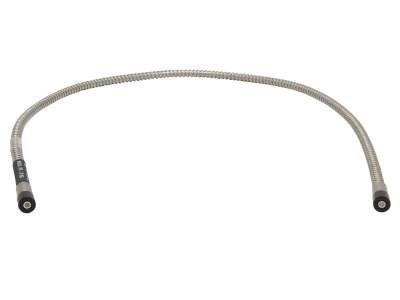

Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 36 in.

The 77564 Standard Grade Fused Silica Fiber Optic Bundle uses a stainless steel protective sheathing around the fibers. This 36 inch long, 0.125 inch diameter Fused Silica bundle uses a silica/silica polyimide buffer. It has 11 mm ferrule terminations for mounting in our standard fiber adapters.

Specifications

Technical Specs

Type
Single Branch Fiber Bundle
Core Diameter
3.2 mm
Numerical Aperture
0.27
Transmittance Range
280 - 2200 nm
Fiber Length
36 in.
Fiber Connector
11 mm Ferrule

Acceptance Cone, 2a
31°
F/#
1.9
Fiber Material
Fused Silica
Transmittance
0.45

Type
Single Branch Fiber Bundle
Core Diameter
3.2 mm
Numerical Aperture
0.27
Transmittance Range
280 - 2200 nm
Fiber Length
36 in.
Fiber Connector
11 mm Ferrule

Acceptance Cone, 2a
31°
F/#
1.9
Fiber Material
Fused Silica
Transmittance
0.45

Resources & Downloads

2D Product Drawings

LS-253a(619.2 kB, PDF)
