Precision 100 mm Dovetail Optical Rails

The PRL Series Precision Dovetail Optical Rail system maintains a low profile while offering sturdy support to carriers that ride on hard polymer pads with optimal linearity. The dovetail design allows easy attachment and removal of carriers without disturbing the rest of the system.

Precision dovetail design provides sturdy hold and excellent linearity
Four sizes of low profile rails with three carrier styles
Carriers ride on extra-hard polymer pads
Engraved scales in both inches and millimeters
Rails mount at any orientation on English or metric optical tables

See All Features

Show Filters:

Showing 9 of 9 total products

Compatibility:

Description	Compatibility	Type	Length	Height	Thread Type	Avail.	Price

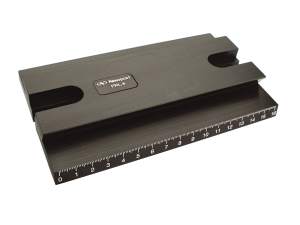

PRL-6Precision Optical Rail, 6.56 in. Length, 3.93 in. Width, 6 in. Scale	UNIVERSAL	Optical Rail	166.6 mm	21.1 mm		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$212

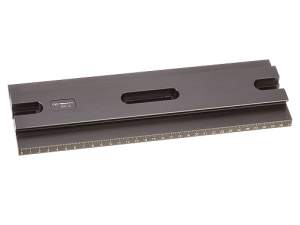

PRL-12Precision Optical Rail, 12.46 in. Length, 3.93 in. Width, 12 in. Scale	UNIVERSAL	Optical Rail	316.5 mm	21.1 mm		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$303

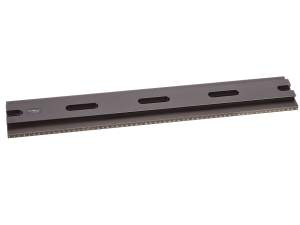

PRL-24Precision Optical Rail, 24.28 in. Length, 3.93 in. Width, 24 in. Scale	UNIVERSAL	Optical Rail	616.7 mm	21.1 mm		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$447

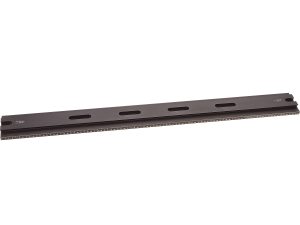

PRL-36Precision Optical Rail, 36.48 in. Length, 3.93 in. Width, 36 in. Scale	UNIVERSAL	Optical Rail	926.6 mm	21.1 mm		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$536

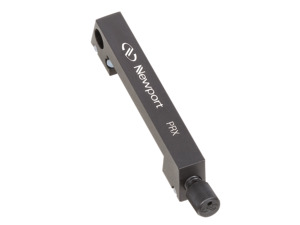

PRXRail Indexing Block, 0.5 in. (12.7 mm) Length, No Holes, PRL Series	UNIVERSAL	Rail Carrier	12.7 mm	19.1 mm		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$78

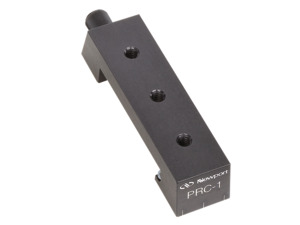

PRC-1Optical Rail Carrier, 1.0 in. Length, 1/4-20 Thread, PRL Series	IMPERIAL	Rail Carrier	25.4 mm	20.6 mm	1/4-20	2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$108
M-PRC-1Optical Rail Carrier, 25.4 mm Length, M6 Thread, PRL Series	METRIC	Rail Carrier	25.4 mm	20.6 mm	M6	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$108

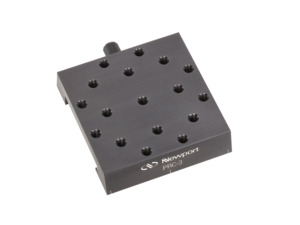

PRC-3Optical Rail Carrier, 3.0 in. Length, 1/4-20 Thread, PRL Series	IMPERIAL	Rail Carrier	88.9 mm	20.6 mm	1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$140
M-PRC-3Optical Rail Carrier, 88.9 mm Length, M6 Thread, PRL Series	METRIC	Rail Carrier	88.9 mm	20.6 mm	M6	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$140

Features

Precision Dovetail Design for Sturdy Hold and Excellent Linearity

The PRL Series Precision Dovetail Optical Rail system maintains a low profile with its 3.93 in. (99.8 mm) wide base to provide a sturdy hold of carriers with a combined height of 1.26 in. (31.9 mm). The precision-machined, anodized aluminum dovetail construction provides smooth and easy-to-use carrier translation with a straightness of 0.001 in over 8 in. (25 µm over 25 cm).

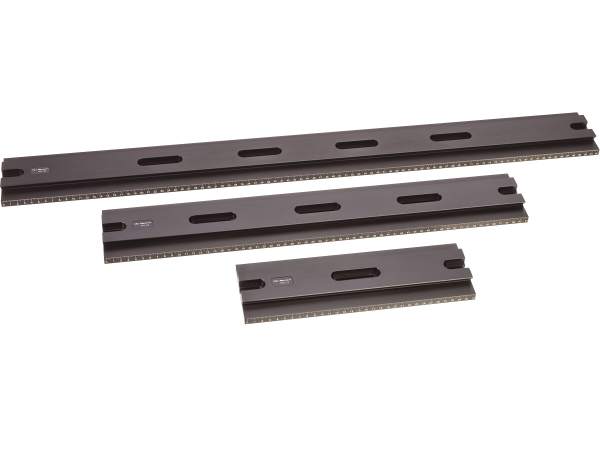

Four Optical Rail Lengths Available

Optical rails come in 6.00 in (16.7 cm), 12.5 in. (31.7 cm), 24.3 in. (61.7 cm) and 36.5 in (92.7 cm) lengths and are compatible with English or metric table hole patterns.

Three Optical Rail Carriers Available

The optical rail carriers are also easy to use and may be removed or installed at any point on the rail. The aluminum carriers ride on extra-hard polymer pads, selected for low friction, resistance to cold flow, and long life. The overall nominal height of a carrier mounted on to an optical rail is 1.256 in. (31.9 mm). Convenient thumb-adjust lock knobs securely clamp the carriers in place anywhere on the rail.

Engraved Linear Scales

A metric and imperial linear scale is engraved in the side of the precision-machined anodized aluminum optical rail for ease of optical system set-up.
