Metal wall vacuum hose is constructed from formed Stainless Steel with the hose buttwelded. It is unsheathed and offered in 250 or 500 mm lengths for NW63 to NW100 size ISO-MF flanges.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100763610 Metal Wall Vacuum Hose, NW100 ISO-MF, 500 mm Length, 0.3 mm Hose Wall |
In Stock
|
$710.15 |
|
|||
|
100763806 Metal Wall Vacuum Hose, NW63 ISO-MF, 250 mm Length, 0.15 mm Hose Wall |
In Stock
|
$799.86 |
|
|||
|
100763808 Metal Wall Vacuum Hose, NW80 ISO-MF, 250 mm Length, 0.15 mm Hose Wall |
In Stock
|
$573.06 |
|

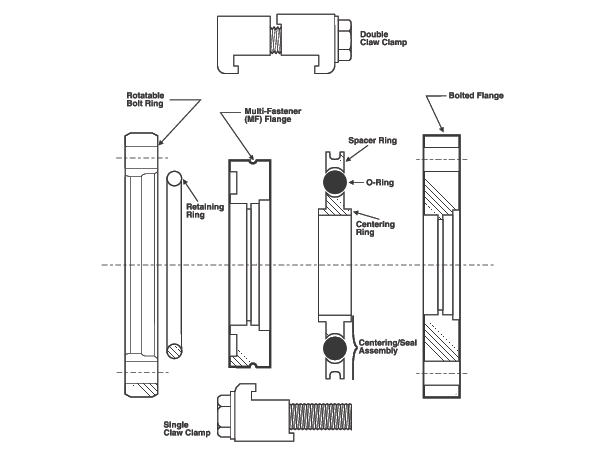

ISO-MF vacuum flange components are a vacuum flanging system for 63 mm to 1000 mm fittings. The dimension criteria are based on requirements established by the International Standards Organization (ISO). There are two flange styles: ISO-MF (multi-fastener flange) and ISO-BF (bolted flange).
There are several advantages in the use of ISO-MF components. The seal is on a symmetrical centering ring that interfaces with two identical flanges allowing for rotation. In addition, ISO-MF flanges are more compact than ASA flanges, which were designed for pressure and are unnecessarily massive for vacuum use.
ISO-MF vacuum flanges and components are made of type 304 stainless steel. Centering ring and seal assemblies are available with an aluminum centering ring and spacer ring, or with a stainless centering ring and an aluminum spacer ring. Rotatable bolt rings and clamps are made of aluminum alloy. Retaining rings are made of steel. Flange seal surfaces are carefully machined and inspected for defects.
