Compare Model Drawings, CAD & Specs Component Type Flange Size Length Static Bend Radius Spring Rate Availability Price
100315901
$139.20
In Stock
 100315901 Metal Wall Vacuum Hose NW16 250 mm 2.125 in. 256 lb/in.
In Stock
 $139.20
100315903
$92.40
In Stock
 100315903 Metal Wall Vacuum Hose NW25 250 mm 2.875 in. 224 lb/in.
In Stock
 $92.40
100315905
$116.66
In Stock
 100315905 Metal Wall Vacuum Hose NW40 250 mm 3.5 in. 220 lb/in.
In Stock
 $116.66
100315906
$142.07
In Stock
 100315906 Metal Wall Vacuum Hose NW50 250 mm 5.25 in. 220 lb/in.
In Stock
 $142.07
100316001
$151.91
In Stock
 100316001 Metal Wall Vacuum Hose NW16 500 mm 2.125 in. 128 lb/in.
In Stock
 $151.91
100316003
$173.18
In Stock
 100316003 Metal Wall Vacuum Hose NW25 500 mm 2.875 in. 112 lb/in.
In Stock
 $173.18
100316005
$213.68
In Stock

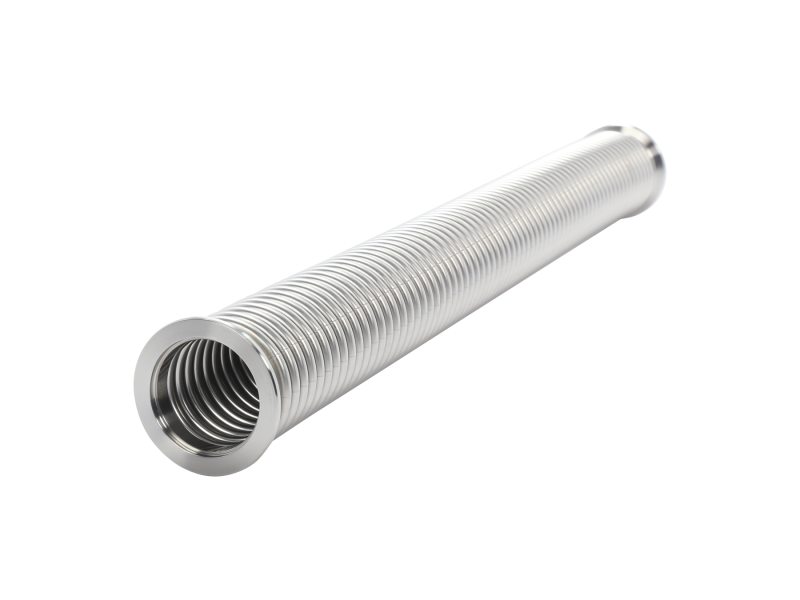

 100316005 Metal Wall Vacuum Hose NW40 500 mm 3.5 in. 110 lb/in.
In Stock
 $213.68
100316006
$318.36
In Stock
 100316006 Metal Wall Vacuum Hose NW50 500 mm 5.25 in. 110 lb/in.
In Stock
 $318.36
100316111
$236.76
In Stock
 100316111 Metal Wall Vacuum Hose NW16 1000 mm 2.125 in. 64 lb/in.
In Stock
 $236.76
100316113
$209.06
In Stock
 100316113 Metal Wall Vacuum Hose NW25 1000 mm 2.875 in. 56 lb/in.
In Stock
 $209.06
100316115
$346.50
In Stock
 100316115 Metal Wall Vacuum Hose NW40 1000 mm 3.5 in. 55 lb/in.
In Stock
 $346.50
100316116
$439.67
In Stock
 100316116 Metal Wall Vacuum Hose NW50 1000 mm 5.25 in. 55 lb/in.
In Stock
 $439.67

Specifications

  • Component Type
    Thick Metal Wall Vacuum Hose
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Wall Thickness
    0.012 in. (0.30 mm)
