Piezo Goniometric Cradles with CONEX-AGP Controller
Piezo Goniometric Cradles with CONEX-AGP Controller

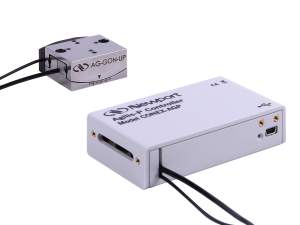

The CONEX-AG-GON series is a piezo motor driven goniometric cradle integrated with a closed-loop piezo motor controller/driver. It uses a piezo motor with a built-in encoder enabling high position repeatability.
- Piezo goniometer with direct read encoder
- Integrated with ultra-compact CONEX-CC controller and driver
- Highly repeatable angular motion and high sensitivity (MIM)
- Fast USB communication for Plug-and-Play See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-AG-GON-LPMotorized Goniometer, Lower, Direct Encoder Feedback, CONEX™ Controller | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | CONEX-AG-GON-UPMotorized Goniometer, Upper, Direct Encoder Feedback, CONEX™ Controller | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
| Models | | | |
|---|---|---|---|
| Drive Type | Piezo Motor | Piezo Motor | |
| Angular Range | -5.5 to 5.5° | -7.5 to 7.5° | |
| Maximum Speed | 0.33°/s | 0.45°/s | |
| Minimum Incremental Motion | 0.25 mdeg | 0.32 mdeg | |
| Centered Load Capacity | 3.5 N | 3.5 N | |
| Feedback | Direct read encoder | Direct read encoder | |
| Encoder Resolution | 0.09 mdeg | 0.13 mdeg | |
| Origin Repeatability | 0.5 mdeg | 0.64 mdeg | |
| Uni-directional Repeatability, Guaranteed | 0.5 mdeg | 0.64 mdeg | |
| Platform Size | 40 x 40 mm | 40 x 40 mm | |
| Rotation Axis Height | 55 mm | 36 mm | |
| Material | Stainless Steel | Stainless Steel | |
| Thread Type | M3 | M3 |
Features
Build Tip-Tilt Platforms
Complete Your Conex System
We also offer the
Simple and Intuitive CONEX™ Software

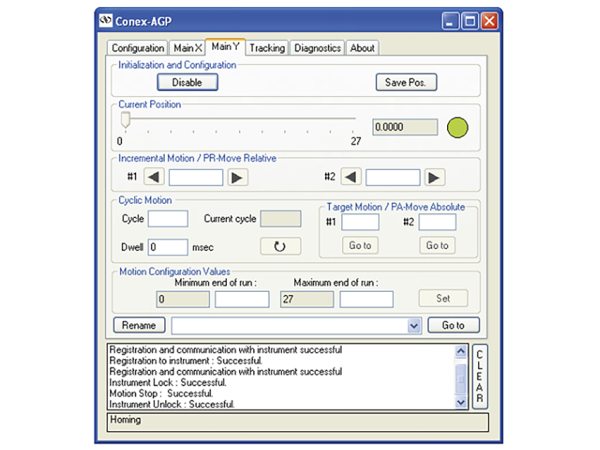

The controller comes with the familiar CONEX GUI, simple and intuitive to use and conveniently accessible via USB, which also supplies power to the controller. For out-of-the box control, the CONEX-AGP controller is preconfigured and delivered with an AG-GON-UP(LP) goniometric cradle. The CONEX-AGP closed-loop algorithm is a simplified version of the typical DC servo loop algorithm, and combined with the direct read encoder. For stability in-position, the user can adjust the deadband parameter that stops dithering when the stage is within a set position tolerance.
USB Communication with PC
Communication with the CONEX controller and PC is achieved via the integrated USB interface, providing a fast, ubiquitous communication protocol. Additionally, the USB also supplies power to the controller. For OEMs or security-sensitive applications, RS-232 and RS-485 are embedded onto the controller.
Simple Programming with Extensive Language Options
Resources
Manuals
CONEX-AGP - Applet Manual.pdf(1 MB, PDF) CONEX-AGP - Command Interface Manual.pdf(555 kB, PDF) CONEX-AGP - Controller Documentation.pdf(1.6 MB, PDF) CONEX-AGP - Introduction, Safety & Service.pdf(1.1 MB, PDF)
Literature
CONEX-AG-GON-xP Data Sheet(427.4 kB, PDF) CONEX Datasheet(4.2 MB, PDF)
