ESP Series Motion Controller to Stage Cables
ESP Series Motion Controller to Stage Cables
Motion controller/driver cables for ESP compatible stages.
- Motion controller cables for ESP compatible stages
- Lengths up to 10 meters
- In-line regulators for longer cables See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MCAB-1Cable, Motorized Stage, 1 m, DB25-M to DB25-F | In Stock | ||||

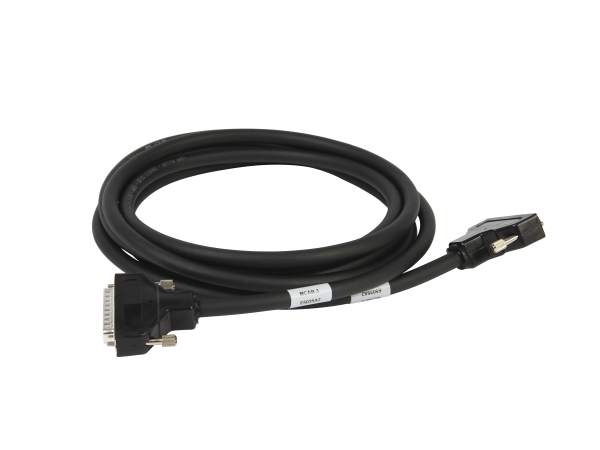

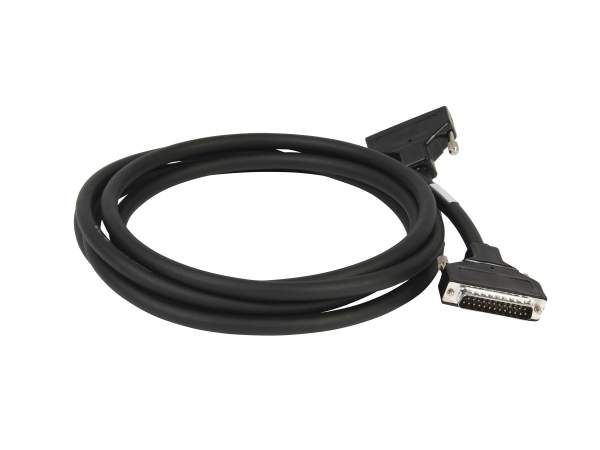

 | MCAB-3Cable, 3 m, DB25 Male to DB25 Female | In Stock | ||||
| MCAB-1-BCable, 1 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-10-BCable, 10 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-3-BCable, 3 m, DB25 Male to DB25 Female, Brushless DC | In Stock | ||||
| MCAB-5-BCable, 5 m, DB25 Male to DB25 Female, Brushless DC | |||||
| MCAB-5Cable, 5 m, DB25 Male to DB25 Female | |||||
| MCAB-7Cable, 7 m, DB25 Male to DB25 Female | In Stock | ||||
| MCAB-10Cable, 10 m, DB25 Male to DB25 Female | |||||

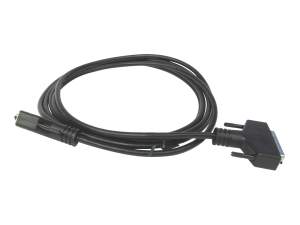

 | MSCABLE-3Cable, DB-25 Male to DB-15 Female, 3 m Length | In Stock |
Notes:
Wiring diagrams can be viewed by opening the drawings contained in the above table.
Features
Standard ESP-Compatible Cables
The MCAB cables are recommended for use with all DC (CC) and bi-polar stepper (BPP/BPE) motor driven ESP-compatible stages. Available in 1-, 3-, 5-, 7- and 10-m lengths, these cables contain a DB25 male and DB25 female connectors.
Cable for Brushless DC Motor
The
Cable with DB25 and DB15 Connectors
The

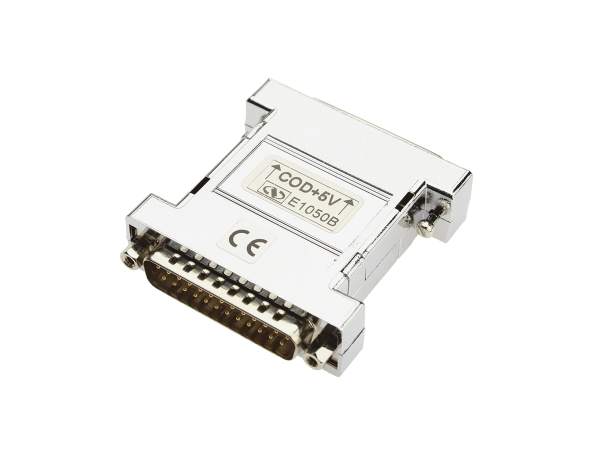

Longer Cables
When a 5-m or longer MCAB cable is used, the
