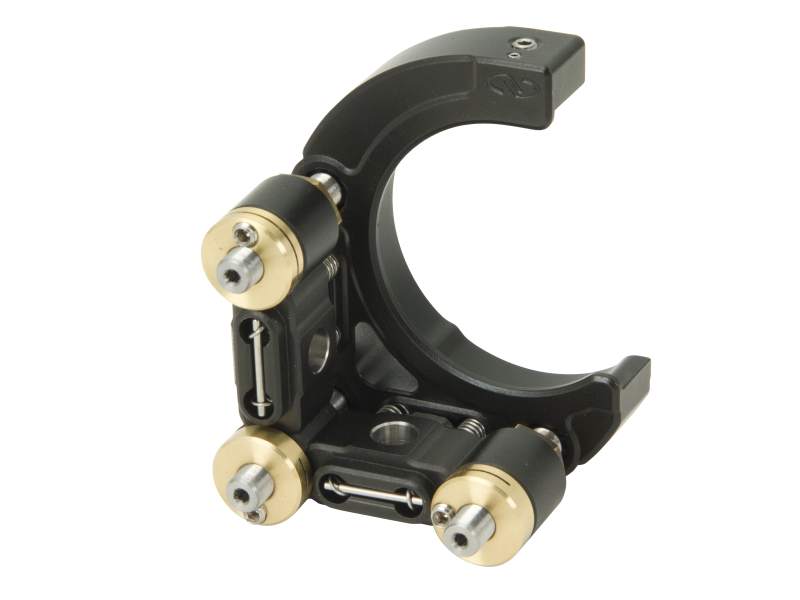

Suprema^® XTE Clear Edge Mirror Mount, 2.0 in., (3) 127-TPI Locking Hex

The new Suprema^® XTE is the highest performing mount in the Suprema family owing to new actuators, materials, and configuration.  127-TPI adjustment screws provide a 20% sensitivity advantage over the standard adjusters while the new stainless steel alloy gives a 38% lower Coefficient of Thermal Expansion (CTE).  The Suprema XTE also has an optically black finish to reduce stray light reflections.  SX200 mounts have superior adjustability and feel. Polished and lapped carbide pads enable smooth, repeatable motion. This three hex-key actuator configuration has tip and tilt adjustability over a range of +/- 7 degrees as well as translation. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.
