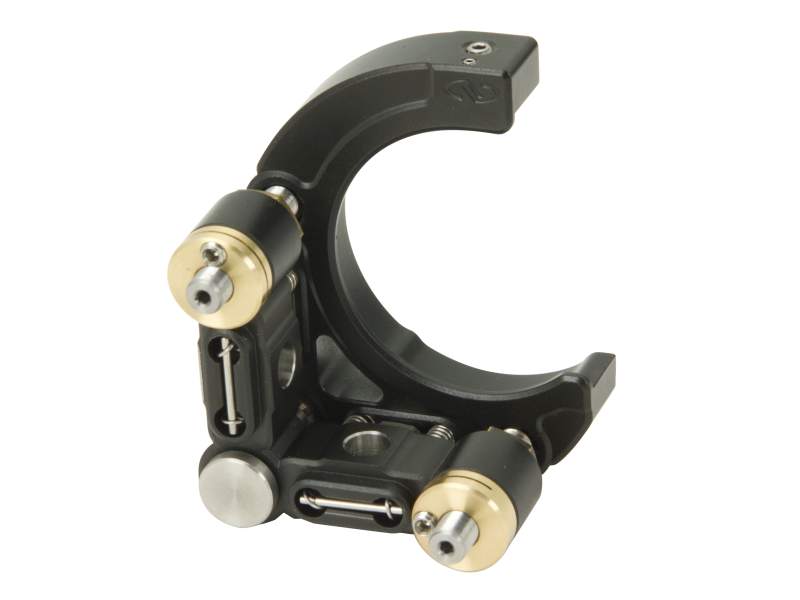

Mirror Mount, Suprema® XTE, Clear Edge, 2.0 in., (2) 127-TPI Locking Hex

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    50.8 mm
  • Number of Actuators
    2
  • Adjustment Screw Thread
    127 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    3.0 arc sec
  • Angular Range
    ±7°
  • Material
    Stainless Steel
  • Drive Type
    Knob, locking
  • Thread Type
    8-32 (M4) CLR
  • Special Features
    Low Drift
