Sorry, this product is no longer offered for sale.

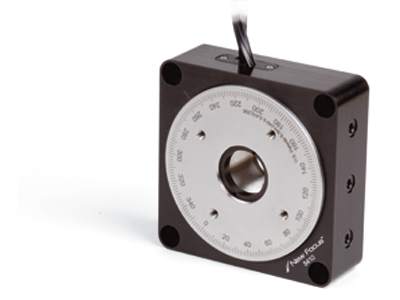

Picomotor Rotation Mount, Closed-Loop, 1.0 in. Diameter Components

The 8410 Closed-Loop Picomotor Rotary Stage includes an encoder for superior position feedback for rotational accuracy. This product provides microradian precision and continuous 360° rotation. It features 1.040-32 internal thread and comes with one retaining ring for mounting 1.0 in. diameter optical components.

This product is not CE marked.

Specifications

Technical Specs

Optic Diameter
25.4 mm
Maximum Speed
>3.3 rev/min.
Angular Resolution
0.2 mrad
Thread Type
8-32

Operating Temperature
10-40˚C
Retaining Ring Thread
1.040-32

Optic Diameter
25.4 mm
Maximum Speed
>3.3 rev/min.
Angular Resolution
0.2 mrad
Thread Type
8-32

Operating Temperature
10-40˚C
Retaining Ring Thread
1.040-32

Resources & Downloads

2D Product Drawings

8410_RC_Rev1(571.2 kB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)
