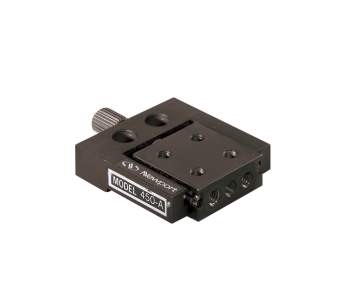

450A Series Compact Ball Bearing Linear Stage

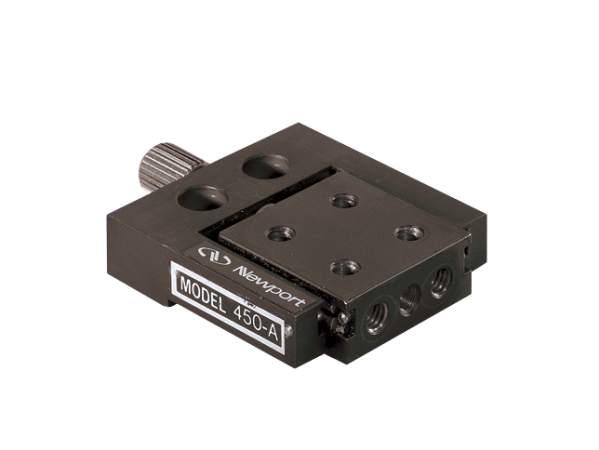

Model 450A Compact Ball Bearing Linear Stage incorporates ball bearing construction in a miniature package for applications where space is at a premium. The 1 in. square translating platform is supported within the frame by balls riding between opposing pairs of precision-ground, hardened rods. It is preloaded to remove wobble and play and is spring loaded against an 80-pitch lead screw for backlash-free travel.

Compact, stackable design
Components mount on either side of the stage
All steel construction
Ultra-fine, 80-pitch drive screw

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		450ALinear Stage, Compact, Ball Bearing, 0.25 in. Travel, 6 lb. Load, 8-32	IMPERIAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$421

Notes:

An 80 TPI lead screw is included with this stage.

Specifications

Axes of Travel
X
Maximum Stage Travel
6.35 mm
Centered Normal Load Capacity
44 N
Vertical Axial Load Capacity
27 N
Recommended Actuators
Lead screw is included
Adjustment Screw Thread
80 TPI

Sensitivity
1 µm
Angular Deviation
<300 µrad
Material
Steel
Bearings
Ball Bearings
Drive Location
Center drive
Thread Type
8-32

Features

Multi-Axis Configurations

Multi-axis translation systems can be assembled by attaching the frame of one stage directly to the platform of another. Adaptor Plate provides a set of tapped and clearance mounting holes to accommodate post holders and other components, and to provide attachment to optical tables and breadboards.

Slightly Elevated Stage

The drive knob extends out a distance from the frame, independent of the platform travel, to minimize space requirements. To ensure clearance for overhanging components, the stage is elevated slightly above the frame.
