X26 Optical Rail Carriers
X26 Optical Rail Carriers
Our X26 optical rail carriers can easily be fixed to any of the four sides of the symmetrical cross-shaped rail providing four parallel work surfaces.
- Mount to all four sides of X26 optical rails
- Dovetail for fast mounting and locating
- Compatible with a wide range of Newport mounts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CN26-12Optical Rail Carrier, 12 mm Length, 1/4-20 Thread, X26 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

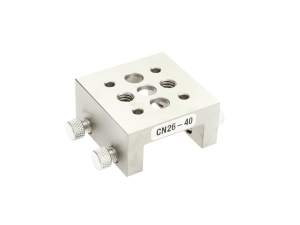

 | CN26-40Optical Rail Carrier, 40 mm Length, 1/4-20 Thread, X26 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

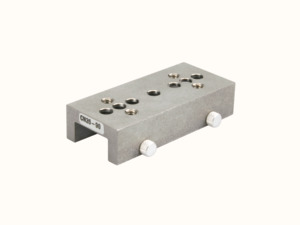

 | CN26-90Optical Rail Carrier, 90 mm Length, 1/4-20 Thread, X26 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

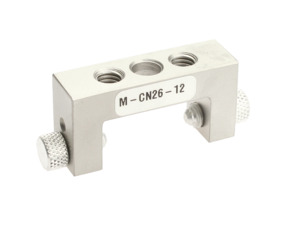

 | M-CN26-12Optical Rail Carrier, 12 mm Length, M6 Thread, X26 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

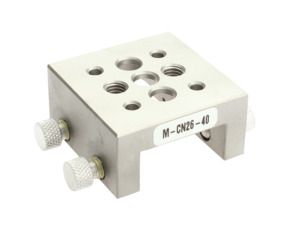

 | M-CN26-40Optical Rail Carrier, 40 mm Length, M6 Thread, X26 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| M-CN26-90Optical Rail Carrier, 90 mm Length, M6 Thread, X26 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

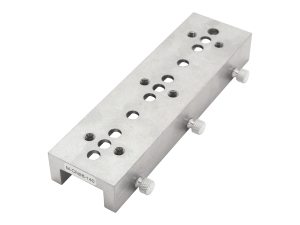

 | M-CN26-140Optical Rail Carrier, 140 mm Length, M6 Thread, X26 Series | |||||

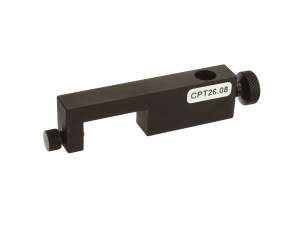

 | CPT26.08Optical Post Carrier, TSP Series Post, X26 Series Rail | |||||

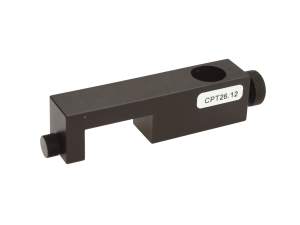

 | CPT26.12Optical Post Carrier, SP Series Post, X26 Series Rail | |||||

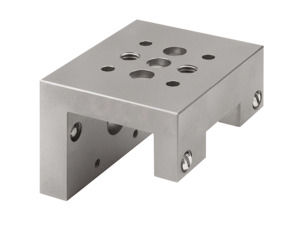

 | CN26C90 Degree Rail Carrier, 50 mm Length, 1/4-20 Thread, X26 Series |
Features

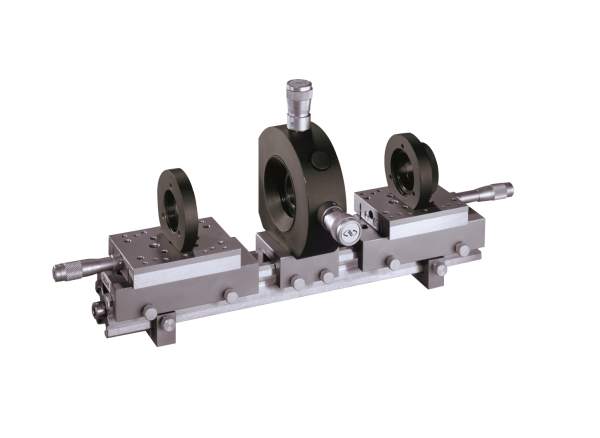

Compatible Mounts Have Common 40 mm Optical Axis Height
Compatible optical mounts, which include SL Series 1.0 in. Gimbal Optical Mounts, SB18YZ Series Lens Positioners, X26 Series Optic and Lens Barrel Mounts, and are provided a common optical axis height of 40 mm above the rail surface. Please note that the slotted base and riser block of the gimbal mounts and lens positioner need to be removed.
Dovetail Design

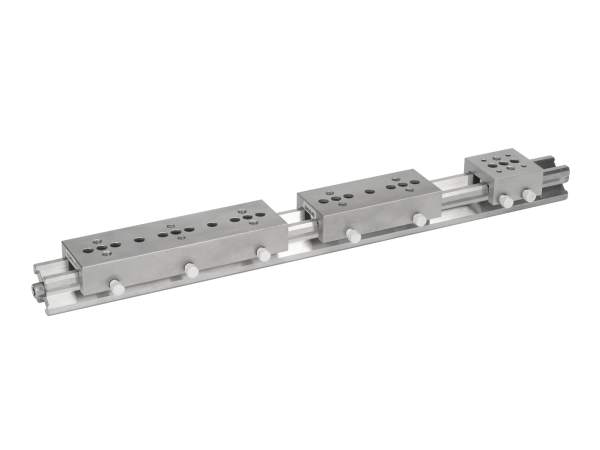

Dovetail construction enables fast, easy mounting and secure clamping of carriers at any point along the rail without removing other components. Shown is CN26-40, CN26-90 and CN26-140 rail carriers mounted to an X26-384 optical rail.
