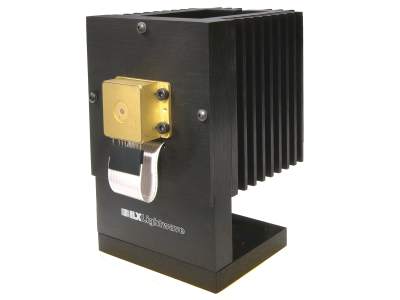

LDM-4442 High Power Laser Diode Mount
LDM-4442 High Power Laser Diode Mount
The LDM-4442 solves the fixturing and heat dissipation problems associated with operating higher power laser diodes. This laboratory-quality laser diode mount has the ability to dissipate up to 18 W of heat generated by a laser diode and its internal thermoelectric modules. The laser mounting plates, which attach quickly and easily to the riser, are equipped to handle the most popular laser diode packages. The front of the laser diode is easily accessible to provide operational flexibility in a host of applications.
- Simple & easy socket mounting for HHL, TO-3 and other high power diodes
- Unobstructed access to the front of the laser diode package
- Water-cooled riser for optimum heat dissipation
- Compatible with ILX current sources and temperature controllers
- Conveniently mounts to an optical table See All Features
Specifications
- Package TypeTO-3, HHL, or Custom
- Maximum Current7 A
- TE CoolerNo
- Temperature SensorNone
- Laser Driver Connector TypeDB9 Male Pigtail
- TEC Controller Connector TypeDB15 Female Pigtail
- Heat Dissipation Capability50 W
- Dimensions152 x 102 x 119 mm
- Weight1.8 kg
Features
Interchangeable Laser Mounting Plates
The LDM-4442 consists of an extruded heat sink, detachable base and water-cooled riser. Interchangeable mounting plates, each designed to accept a high-power laser package, are offered for versatile operation. A small circuit board, containing the appropriate electrical socket, is attached to the reverse side of each laser mounting plate, allowing for quick attachment of the laser diode.
Interface With any ILX Source or Controller
Each mounting plate kit comes with the cables needed to interface to any ILX Lightwave current source or temperature controller. The cables are fixed on one end with standard D-subminiature connectors. The other ends are prepared for easy termination into the provided female connector. This allows easy interface with the male connector affixed to the laser mounting plate circuit board.
Conveniently Mounts to Standard Optical Tables
The LDM-4442 can be attached directly to a standard (1/4 - 20 on 1” centers) optical table and conveniently aligns the laser diode at a 4” optical line height. The laser package is electrically isolated from the table to prevent damaging the laser diode.
Resources
Application Notes
Mounting Considerations for High Power Laser Diodes(540.9 kB, PDF) Choosing the Right Laser Diode Mount for Your Application(610.4 kB, PDF)
Literature
LDM-4442 High Power Laser Diode Mount Brochure(126.7 kB, PDF)
Manuals
LDM-4442 Laser Diode Mount User's Manual(271.1 kB, PDF)
