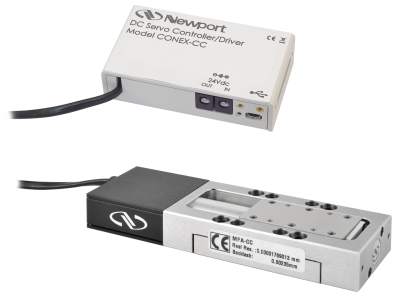

DC Servo Linear Stage With CONEX™ ControllerCONEX-MFACCMotorized Linear Stage, MFA-CC Integrated with CONEX-CC Controller
In Stock
$3,525

Specifications

  • Stage Type
    MFA-CC
  • Travel Range
    25 mm
  • Centered Load Capacity
    50 N
  • Axial Load Capacity
    10 N
  • Axial Load Capacity, Inverse
    -10 N
  • Maximum Speed
    2.5 mm/s
  • Minimum Incremental Motion
    0.10 µm
  • Compliance in Pitch
    10 µrad/Nm
  • Compliance in Roll
    60 µrad/Nm
  • Drive Type
    DC servo
  • Limit Switches
    Optical
  • Origin Repeatability
    ±2.5 µm
  • Cable Length
    3 m
  • Computer Interfaces
    USB

Features

Scalable Architecture

The CONEX-MFACC can be daisy chained to create multi-axis systems. For added convenience, the power can be shared with up to 5 modules using the optional CONEX-PS-CB power chain cable. This allows for a convenient low cost multi-axis system. Additionally, analog and digital inputs can be implemented into the controller through the CONEX-IOD.

Complete Your Conex System

is an essential need to supply power to your Conex devices and it is purchased separately. The supplied power can be shared by modules using the optional power chain cable; one cable is included in this kit and additional cables can be purchased separately.

We also offer the base plate which is used to securely mount up to 6 CONEX-AGP motion controllers to save you space and bring you convenience.

Compact Controller with Integrated Stage

In terms of size, the CONEX-CC controller is comparable to a deck of cards, only measuring 93 x 53 x 23 mm. Six controllers can fit on a CONEX-BP baseplate. The CONEX-MFACC is ideal for space-confined applications.

All Steel Stage

The full steel body of the MFA allows for a more compact design with exceptional stiffness-to-weight ratio, greater thermal stability and high load capacity.

USB Communication with PC

Communication between the CONEX™ controller and PC is achieved via the integrated USB interface, providing a fast ubiquitous communication protocol. For OEM's or security sensitive applications, RS-232 and RS-485 are embedded onto the controller.

Simple Programming with Extensive Language Options

Advanced application programming is simplified by using mnemonic ASCII commands. Newport provides a free GUI that allows the user to access and execute over 60 intuitive ASCII commands. Alternatively, additional drivers are available for LabVIEW™ as well as communication DLL’s for other languages.

Linear Amplifier

Low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors; delivering smoother motion, with less electrical noise and significantly less motor heating.

Out-of-the-box Control

For out-of-the box control, the CONEX-CC is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI.

Accessories

Accessories

Compare Description Drawings, CAD & Specs Avail. Price
CONEX-BPBase Plate, Mounts Multiple CONEX™ Controllers
In Stock
$106
CONEX-PS1Power Supply, 24 VDC, CONEX™ Motion Controllers
In Stock
$137
CONEX-PS-CB2Power Chain Cable, 100 mm Length, CONEX™
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$66
Notes:
  1. Power Supply sold separately.
  2. A CONEX-PS-CB is included in each CONEX-CC product. Purchase more as needed.
