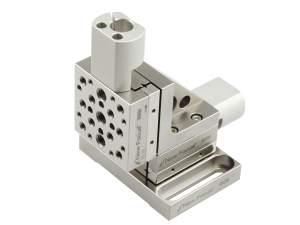

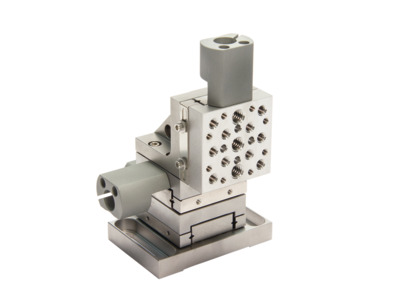

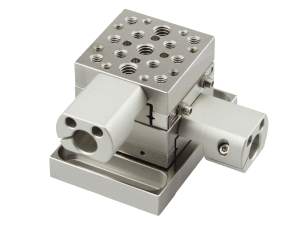

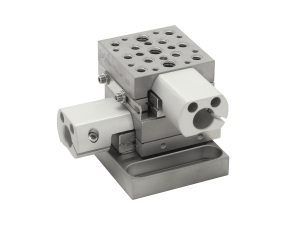

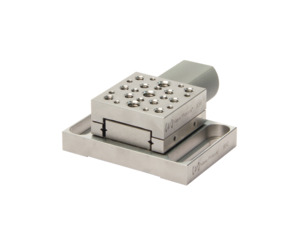

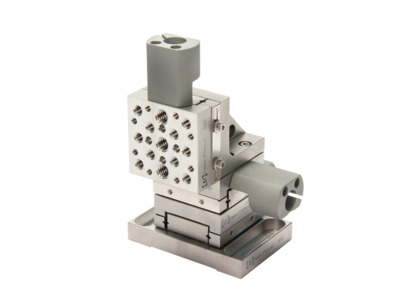

0.5 in. Travel Vacuum Compatible Crossed Roller Bearing Linear Stages

Specifications

Technical Specs

Maximum Stage Travel
12.7 mm
Centered Normal Load Capacity
111 N
Vertical Axial Load Capacity
44.5 N
Angular Deviation
150 µrad
Material
Stainless Steel
Bearings
Crossed-Roller Bearings

Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
Recommended Piezo Actuator
8301-V

Maximum Stage Travel
12.7 mm
Centered Normal Load Capacity
111 N
Vertical Axial Load Capacity
44.5 N
Angular Deviation
150 µrad
Material
Stainless Steel
Bearings
Crossed-Roller Bearings

Vacuum Compatibility
10^-6 hPa
Recommended Adjustment Screw
Recommended Piezo Actuator
8301-V
