Solaris Solar Simulator, Class A+AA, IEC, 1600 W Xenon, 12 x 12 in.
Solaris Solar Simulator, Class A+AA, IEC, 1600 W Xenon, 12 x 12 in.
Model: SOLARIS-12
2 Weeks
Product Series Overview
Solaris Class A+AA Solar SimulatorsThe SOLARIS-8 is a Class A+AA Solar Simulator with a 1600 Watt Xenon, Ozone Free source illuminated over a 12 inch x 12 inch area, certified to IEC 60904-9:2020 standards for Spectral Match, Spatial Non-Uniformity of Irradiance, and Temporal Instability of Irradiance. This model uses a single lamp design to meet performance criteria without compromising the 1 SUN output power.
Specifications
- Simulator ClassClass A+AA
- Lamp TypeXenon
- Lamp Wattage1600 W
- Output Beam Size12 x 12 in.
- Beam Uniformity≤2 %
- Beam Divergence, Half Angle<±1.5 °
- Typical Output Power100mW/cm2 (1 Sun)±20% Adjustable 0.1 to 1.0 Sun with Attenuator

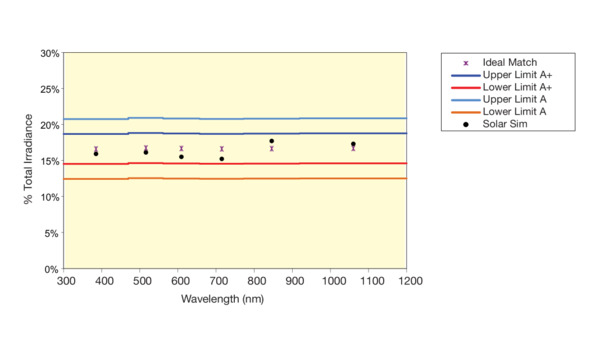

- Spectral Match ClassificationA+ (IEC 60904-9 2020)
- Temporal Instability≤0.5% STI≤2.0% LTI
- Temporal Instability ClassificationA (IEC 60904-9 2020)
- Uniformity≤2 %
- Uniformity ClassificationA (IEC 60904-9 2020)
- Working Distance12.0 ± 0.5 in.
- Line Regulation0.01%
- Power RequirementsLamp Housing: 95-264 VAC / 3A (Max) / 47 - 63 Hz Power Supply: 190-264 VAC / 15A (Max) / 47 - 63 Hz
Resources & Downloads
Manuals
Solaris Series A+ Solar Simulator User Manual(5.2 MB, PDF) Oriel Partial Sun Attenuator User Manual(373.6 kB, PDF)
Literature
Solaris Series A+ Solar Simulator Datasheet(2.3 MB, PDF)
