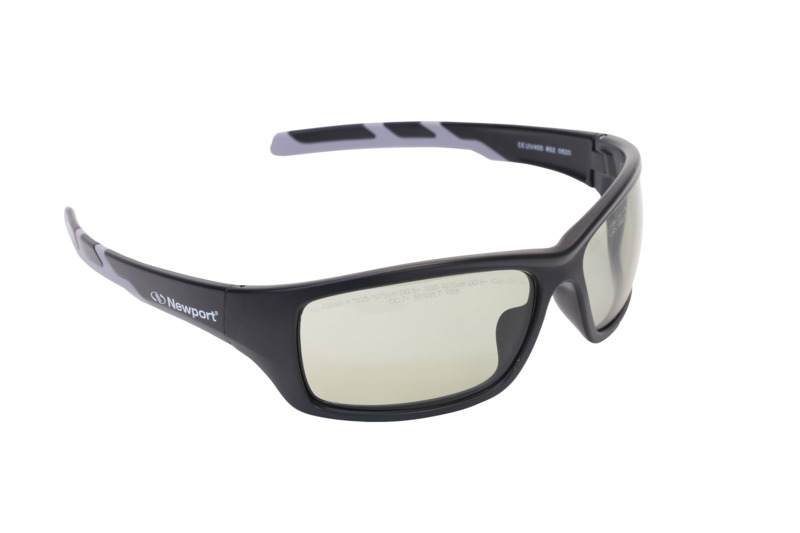

Rimmed Laser Safety Glasses; Narrow Wavelength Band, 1064 nm
Model: N-YG5-52
Product Series Overview
Universal Rimmed Frame Laser Safety GlassesThe N-YG5-52 Laser Safety Glasses are for Infrared lasers with wavelengths of 190-400nm OD5+, 1025-1075nm OD5+, 1035-1070nm OD6+ and 1045-1065nm OD7+. It has a Rimmed frame with grey color polymer lenses that has a 55% VLT (visible light transmission). The Rimmed frame has unmatched protection, comfort, and style, offering sleek styling that fits comfortably over prescription frames or can be worn as a stand-alone spectacle. This model is CE certified. Meets ANSI Z136.1 and EN207.
Glasses Designed to Offer Complete Protection
The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model of laser safety glasses is available by clicking on the model number in the order or specification table.
Rimmed Frame Design for Durability
Fits Over a Majority of Prescription Eyewear
The design of these goggles allow them to comfortably fit over most prescription eyewear. The last number in the model numbers indicate the frame style. The dimensions of the Style #53 is 146 mm x 145 mm x 50 mm (frame width x temple length x frame height), and #55 is 145 mm x 142 mm x 45 mm.
Specifications
- Frame StyleRimmed
- Visible Light Transmission55%
- Filter ColorGray
- Optical DensityOD5+ 190 - 400nm + 1025-1075nm
OD6+ 1035 - 1070nm
OD7+ 1045 - 1065nm - Laser Type1064 nm
- Lens MaterialPolymer
- CEYes
- EN2071025-1075 DIR LB5 + M LB5Y
1035-1070 DIR LB6 + M LB6Y
1045-1065 DIR LB7 + M LB7Y
