Vibration Isolation Platform, Mechanical, 300 x 300 mm, 6.8-19.5 kg

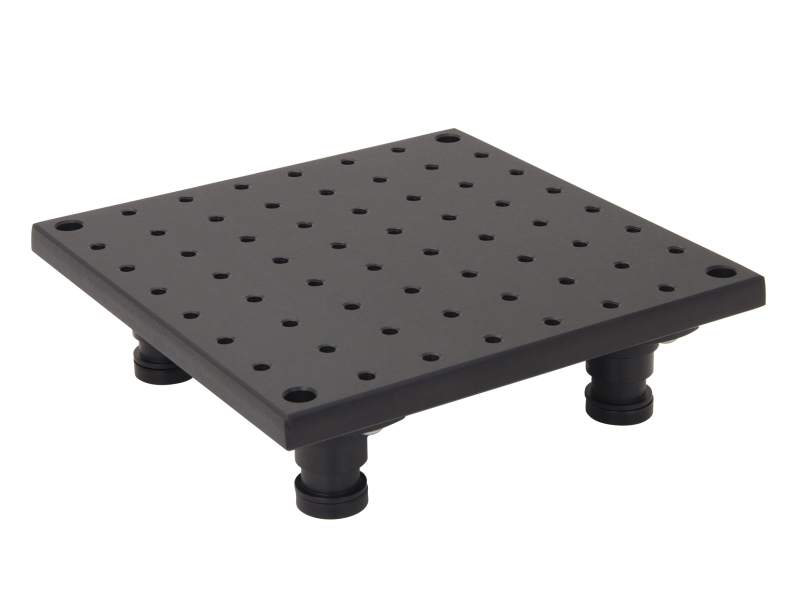

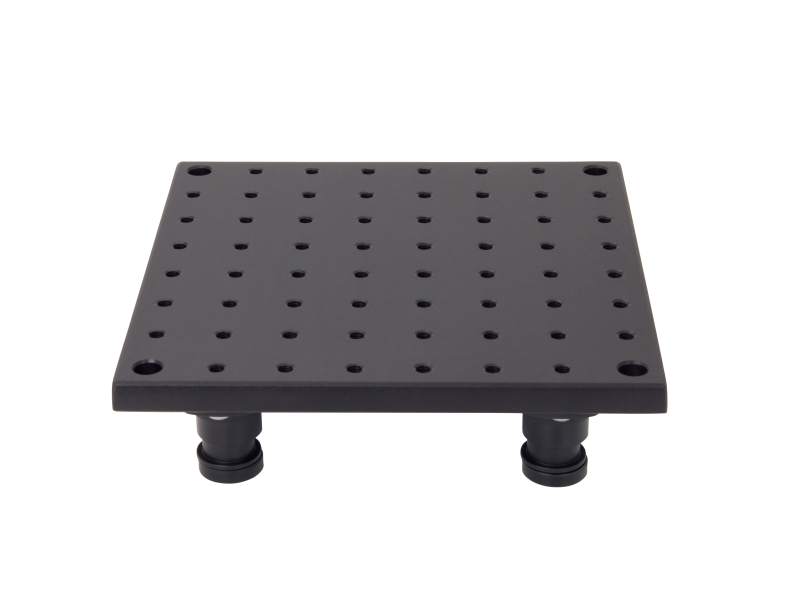

The M-VIP100-1212-1543 Mechanical Vibration Isolation Platform is a self-contained unit that has a 300 x 300 mm by 12.7 mm thick aluminum top plate with M6 mounting holes on 25 mm spacing, as well as 4 of the VIB100 isolators. It provides both vertical and horizontal isolation for loads from 6.8 kg to 19.5 kg. The VIB100 bearings attach to the VIBe base plate via specially designed brackets that feature a threaded aperture to allow leveling adjustment of the platform.
