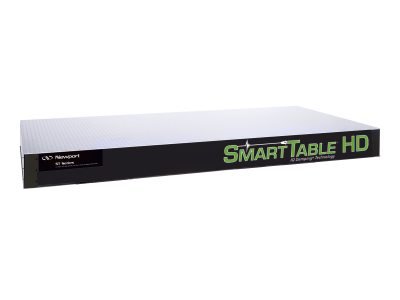

Optical Table, Hybrid Damped SmartTable®, 1200 x 1800 mm, 305 mm Thick, M6
Model: M-SST-46-12
Product Series Overview

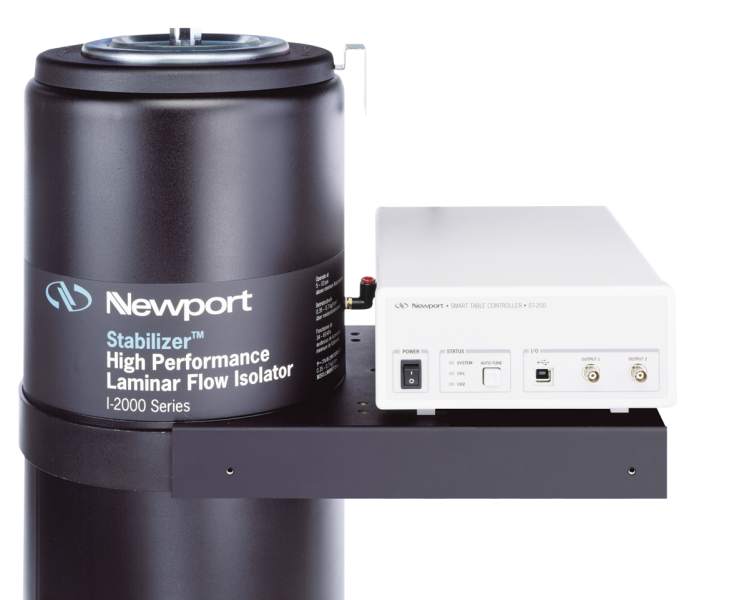

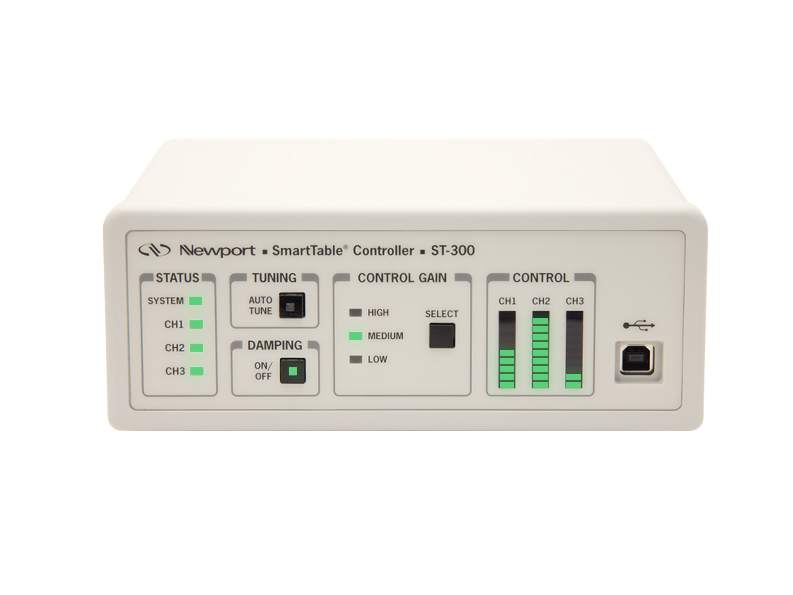

SST Active and Tuned Damped SmartTable® Optical Table TopsThe M-SST-46-12 SmartTable® HD Series uniquely combines the powerful IQ Damping Technology® with passive precision tuned damping technology used in RS series tables. The two technologies compliment each other, creating the highest performance table in the industry. The included ST-300 SmartTable Controller can be used in a stand-alone (no computer required) mode and is also USB2 compatible. When operating in the stand-alone mode SmartTable HD automatically tunes the table to maximize table damping independent of load. When connected to a computer via the USB2 port, the included software allows users to further fine tune and calibrate the table to the experiment at hand and gather vibration data in both the frequency and time domains. Isolators are sold separately
Specifications
- TypeOptical Table Top
- Not Included
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Tuned Damping2 Narrowband Precision Tuned Dampers
- Active Damping2 IQ Active Dampers
- Structural Damping Range80-550 Hz
- Width1200 mm
- Length1800 mm
- Thickness305 mm
- Working Surface4.8 mm thick 400 series ferromagnetic stainless steel
- Surface Flatness± 0.1 mm over 600 mm square
- Mounting HolesM6
- Mounting Hole Pattern25 mm grid
- Mounting Hole Borders12.5 mm
- Hole Sealing TypeEasy clean conical cup, 19 mm deep, non-corrosive high impact reinforced composite material
- Bottom Skin Material4.8 mm thick carbon steel
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.25 mm steel sheet materials, 0.76 mm triple core interface
- Vibration Monitor Range10-820 Hz, 0-0.16 mm/s
- Computer InterfaceUSB
- I/OBNC output with sensitivity of 30V/(mm/s)
- Power Requirements100-240 VAC; 1.5A, 50/60Hz
- Weight356 kg
- Crated Weight441 kg
Resources & Downloads
3D Product Models
Other
M-SST-46-12 RoHS Certificate(280.5 kB, PDF)
Manuals
Optical Table Pre-installation Checklist(3.7 MB, PDF) ST-300 User Manual Rev C(1.8 MB, PDF)
2D Product Drawings
Leg Location And Mounting Dimensions(102.7 kB, PDF)
