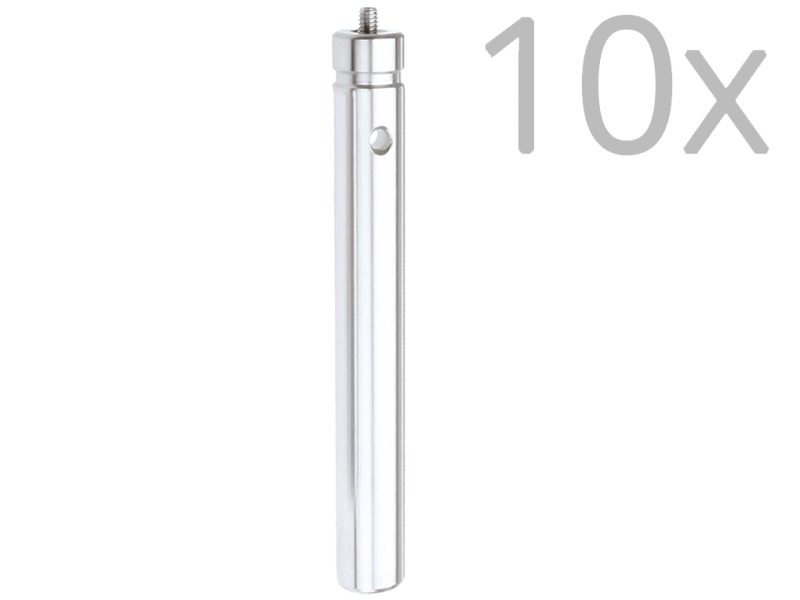

Optical Post Pack, 101.6 mm Height, 12.7 mm Diameter, M4 and M6, Qty 10

This is a 10-pack of the Optical Post. The M-SP-4 Precision Ground, Stainless Steel Optical Post is 12.7 mm diameter with a length of 101.6 mm. It has an M4 tapped hole in one end and an M6 tapped hole in the other end. M-SP Series Posts are compatible with M-VPH and M-VPT Series Post Holders, or can be directly mounted to a table or breadboard. M-SP Series posts can be connected using TA-M4M6-10 Thread Adaptors.

Specifications

Technical Specs

Type
Optical Post Pack
Diameter
12.7 mm
Height
101.6 mm
Thread Type
M4 and M6

Material
Stainless Steel
Pack Quantity
10

Type
Optical Post Pack
Diameter
12.7 mm
Height
101.6 mm
Thread Type
M4 and M6

Material
Stainless Steel
Pack Quantity
10

Resources & Downloads

Other

M-SP-4-PK RoHS Certificate(277.1 kB, PDF)
M-SP-4-PK_RoHS2021.pdf(679 kB, PDF)

2D Product Drawings

SP Series Optical Posts Drawing(44.7 kB, PDF)
